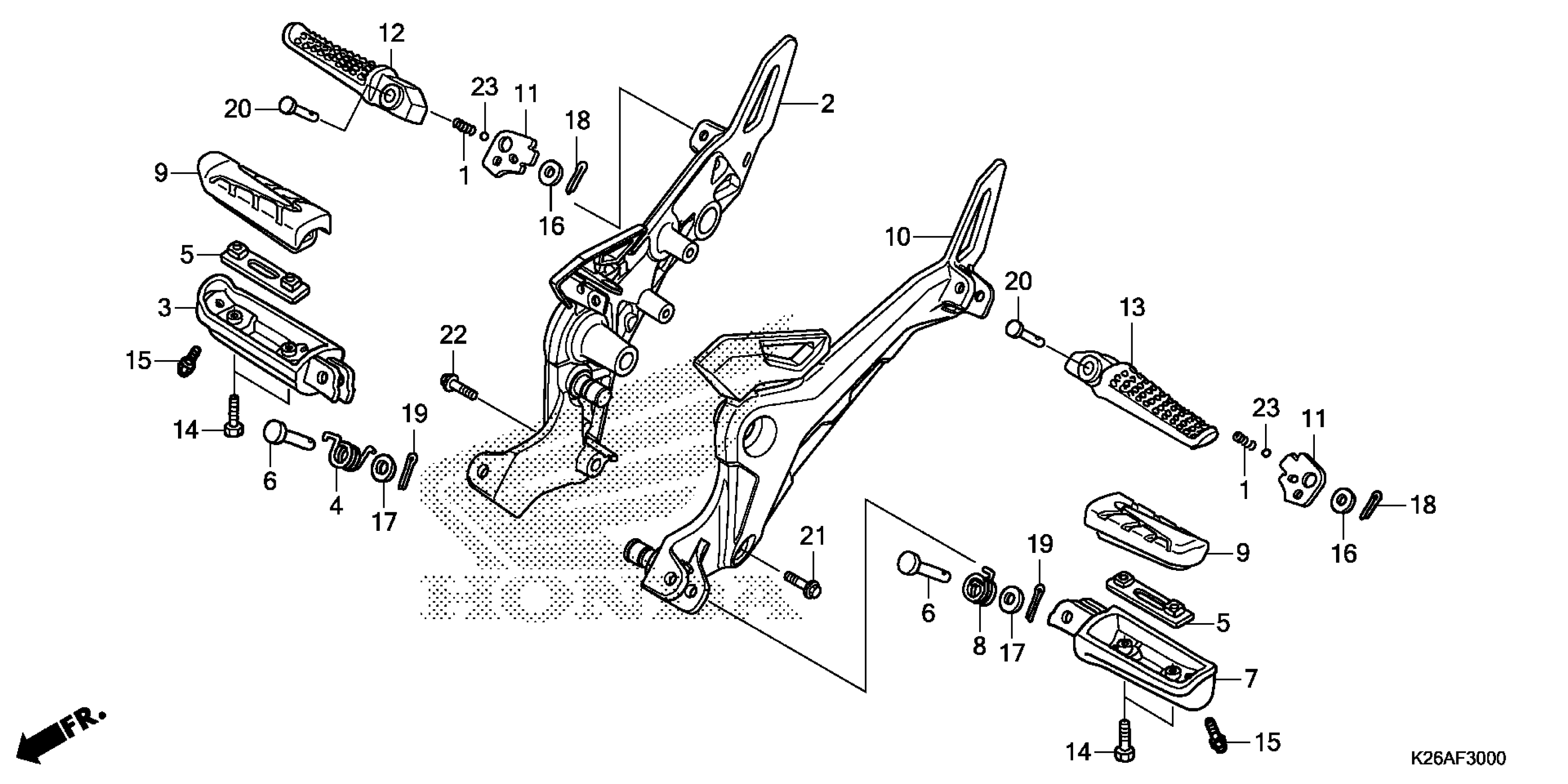

Honda GROM125AC (19) MOTORCYCLE, THA, VIN# MLHJC751-K5100001 TO MLHJC751-K5199999 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

HOLDER, R. STEP

50600-K26-B00

$39.22

3

ARM, R. STEP (COO)

50612-KYJ-305

$23.78

3

ARM, R. STEP (COO) This part replaces 50612-MM5-000.

50612-KYJ-305

$23.78

4

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.20

5

PLATE, STEP SETTING

50619-MM5-000

$7.56

6

PIN, STEP BAR

50639-ML0-010

$4.84

7

ARM, L. STEP (COO)

50642-KYJ-305

$23.78

7

ARM, L. STEP (COO) This part replaces 50642-MM5-000.

50642-KYJ-305

$23.78

8

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.20

9

RUBBER, MAIN STEP (COO)

50661-KYJ-305

$12.67

9

RUBBER, MAIN STEP (COO) This part replaces 50661-KYJ-900.

50661-KYJ-305

$12.67

10

HOLDER, L. STEP

50700-K26-B00

$34.53

11

PLATE, PILLION STEP CLICK

50718-MEE-000

$2.69

12

BAR, R. PILLION STEP (COO)

50720-K26-305

$41.27

12

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-761.

50720-K26-305

$41.27

13

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-761.

50730-K26-305

$41.27

14

BOLT, MAIN STEP RUBBER SETTING

90115-MV9-000

$3.52

15

BOLT, CAP (8X8)

92501-08008-0A

$1.04

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

17

WASHER, PLAIN (8MM)

94102-08000

$0.87

18

PIN, COTTER (1.6X12)

94201-16120

$1.04

19

PIN, COTTER (2.0X15)

94201-20150

$1.04

20

PIN C, PILLION FOOTPEG

95015-83000

$2.22

21

BOLT, FLANGE (8X30)

95701-08030-00

$1.04

22

BOLT, FLANGE (8X35)

95701-08035-00

$2.80

23

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
