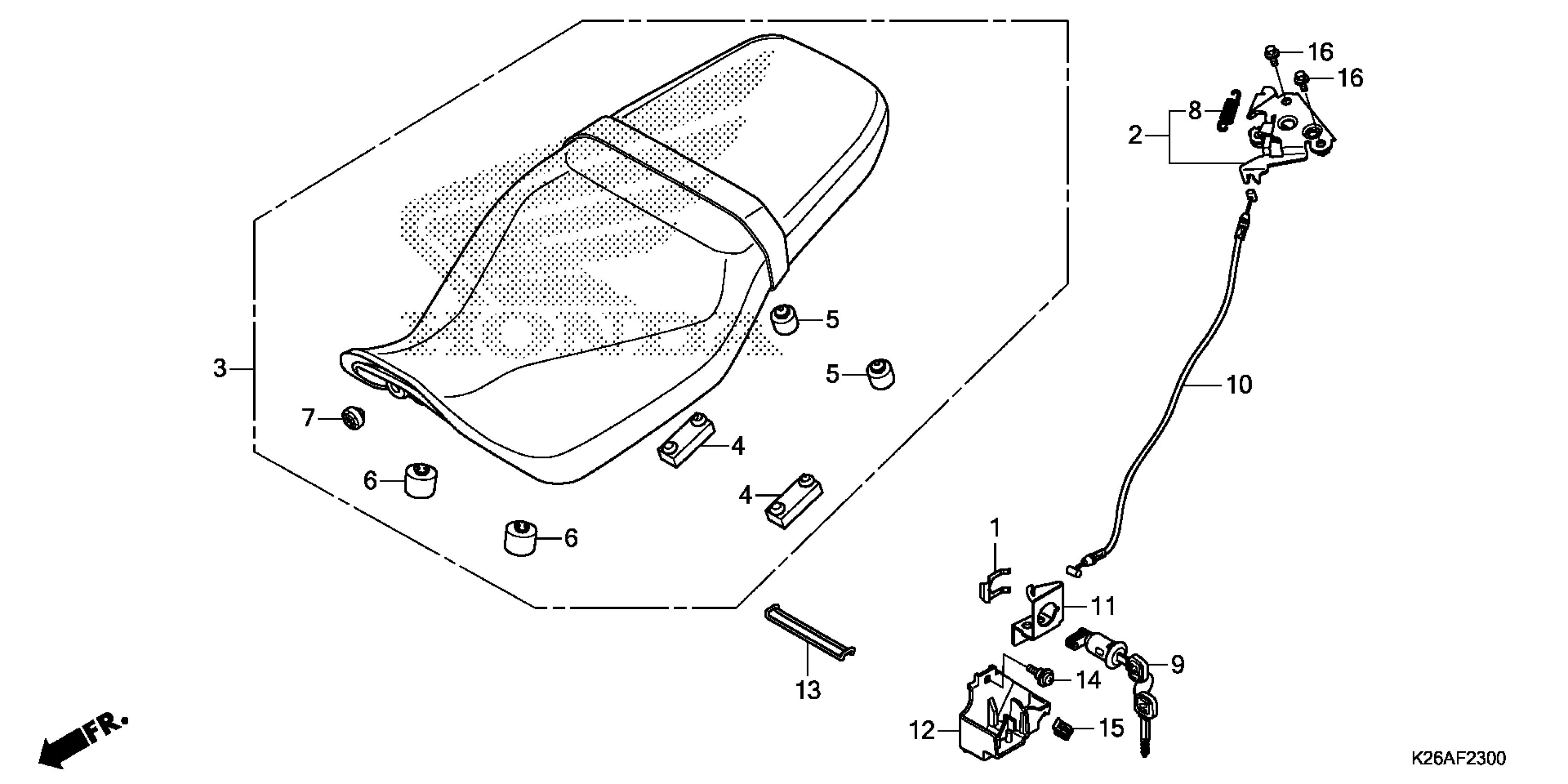

Honda GROM125AC (19) MOTORCYCLE, THA, VIN# MLHJC751-K5100001 TO MLHJC751-K5199999 SEAT Diagram

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

BRACKET, SEAT LOCK

77160-K26-B00

$7.98

SEAT ASSY., DOUBLE (TYPE1)

77200-K26-B00ZA

$91.08

RUBBER, SEAT SETTING

77205-MFE-670

$5.92

RUBBER, SEAT CUSHION

77206-KPK-900

$1.49

RUBBER, SEAT CUSHION

77206-KPP-T00

$3.44

RUBBER C, SEAT SETTING

77215-KW7-900

$5.44

SPRING, SEAT LOCK

77234-KRJ-900

$3.10

KEY, SEAT LOCK

77239-KVB-900

$49.15

CABLE, SEAT LOCK

77240-K26-B00

$2.75

STAY, SEAT LOCK CABLE

77582-K26-900

$3.30

COVER, SEAT LOCK

83556-K26-B00

$6.57

BAND, TOOL

89012-KZL-930

$1.49

SCREW, PAN (5X13)

90117-KVG-A20

$1.49

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X12) This part replaces 95801-06012-00.

95701-06012-00

$1.62
