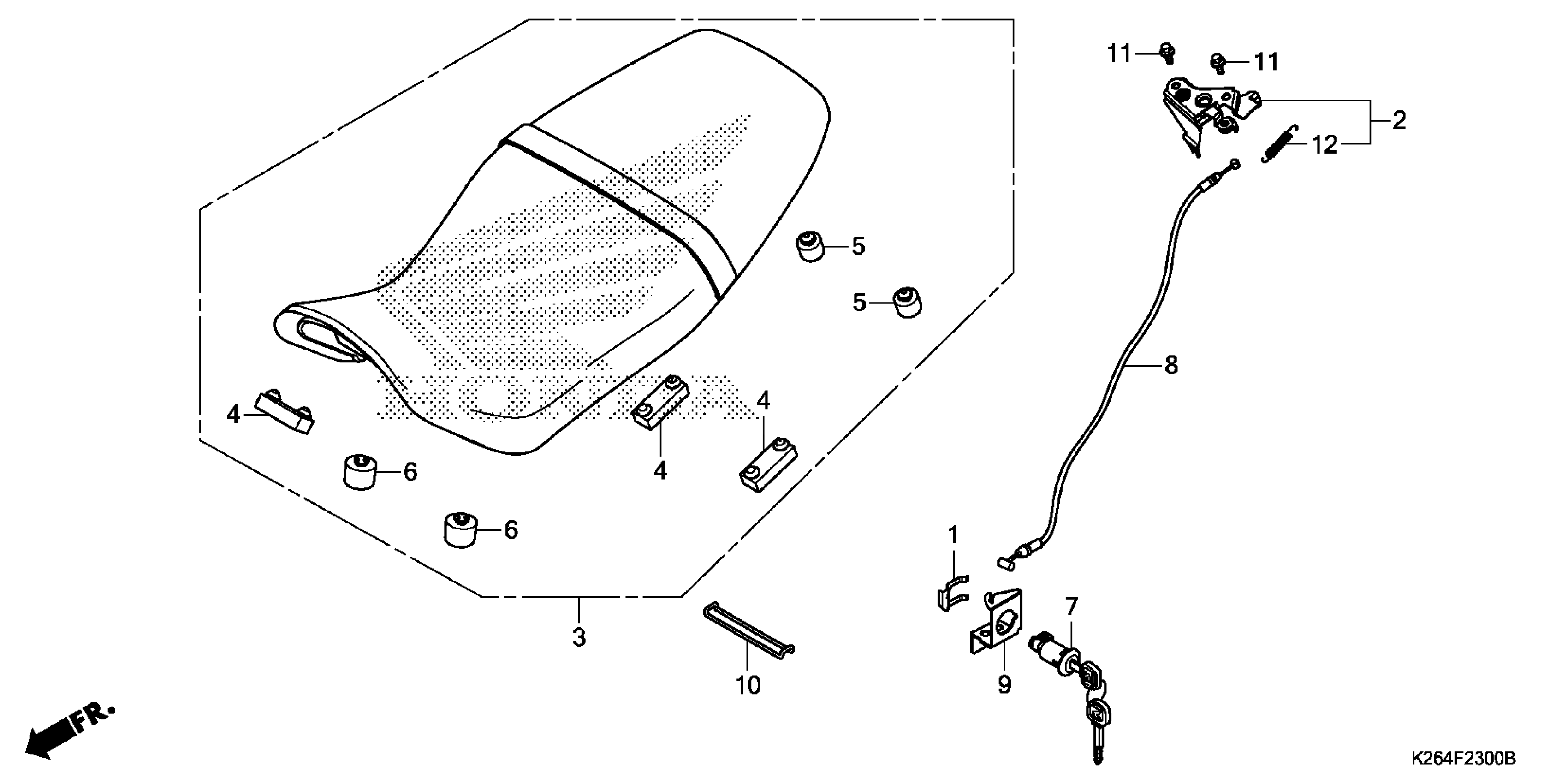

Honda GROM125AC (14) MOTORCYCLE, THA, VIN# MLHJC611-E5000001 TO MLHJC611-E5099999 SEAT Diagram

SPRING, LOCK KEY SETTING

75581-673-000

$6.11

BRACKET, SEAT LOCK

77160-K26-900

$18.76

SEAT ASSY., DOUBLE (TYPE1)

77200-K26-900ZA

$122.57

RUBBER, SEAT SETTING

77205-MFE-670

$5.65

RUBBER, SEAT CUSHION

77206-KPK-900

$1.29

RUBBER, SEAT CUSHION

77206-KPP-T00

$3.19

KEY, SEAT LOCK

77239-196-017

$38.94

CABLE, SEAT LOCK

77240-K26-900

$6.79

STAY, SEAT LOCK CABLE

77582-K26-900

$3.06

BAND, TOOL

89012-KZL-930

$1.15

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84

BOLT, FLANGE (6X12) This part replaces 95801-06012-00.

95701-06012-00

$1.84

SPRING, SEAT LOCK

77234-KRJ-900

$2.87
