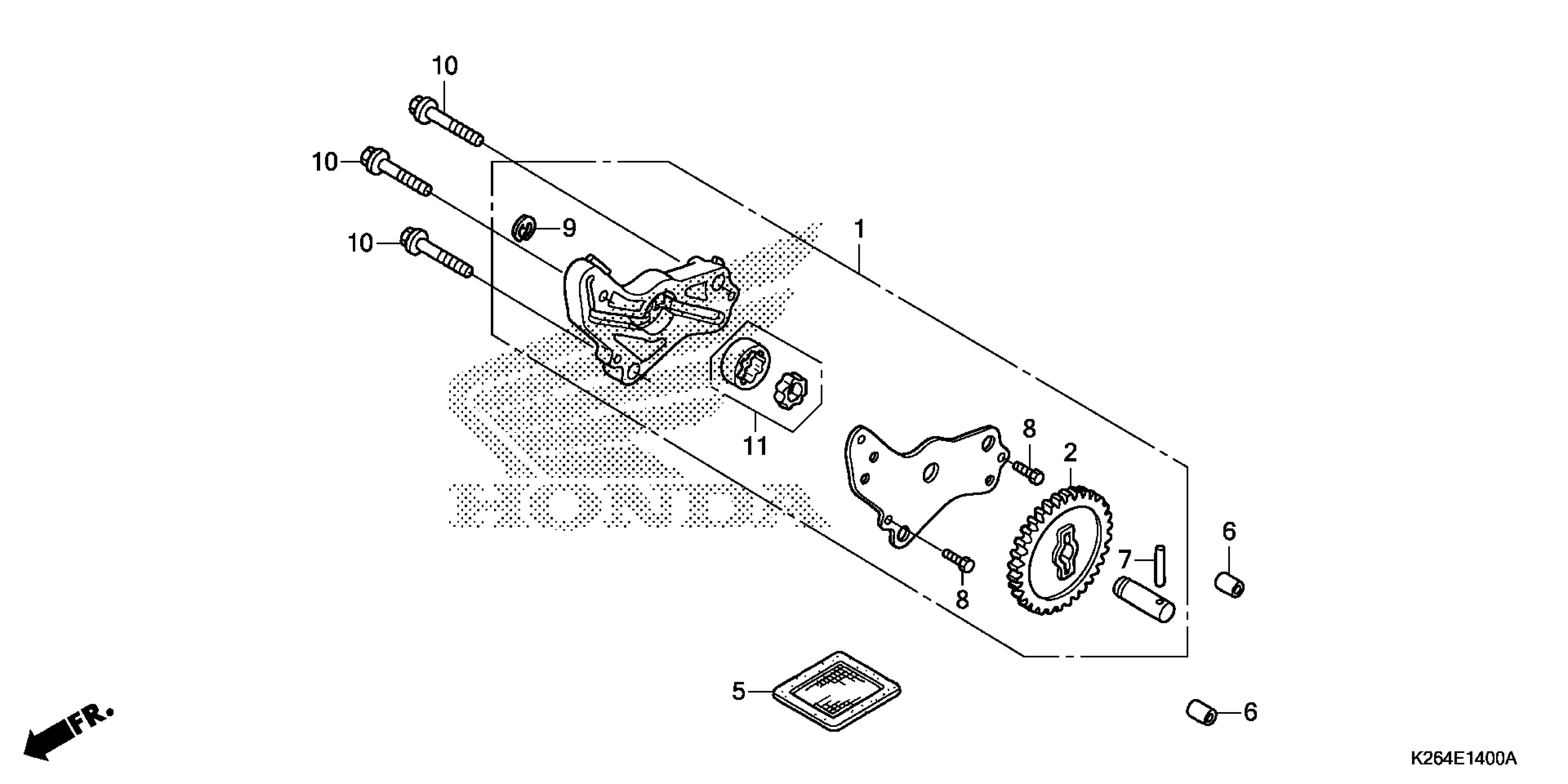

Honda GROM125AC (14) MOTORCYCLE, THA, VIN# MLHJC611-E5000001 TO MLHJC611-E5099999 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-KTM-D20

$19.81

2

GEAR, OIL PUMP DRIVEN (30T)

15133-KTM-D20

$24.66

5

SCREEN, OIL FILTER

15421-KSP-910

$3.65

6

PIN, DOWEL (8X12)

90702-KFM-900

$1.49

7

ROLLER (4X23.8)

91105-KTM-970

$1.49

7

ROLLER (4X23.8)

96220-40238

$1.49

8

BOLT, HEX. (5X12)

93301-05012-0J

$1.49

9

E-RING (6MM)

94540-06018

$2.75

10

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

11

ROTOR SET, OIL PUMP

15021-GF6-000

$20.71
