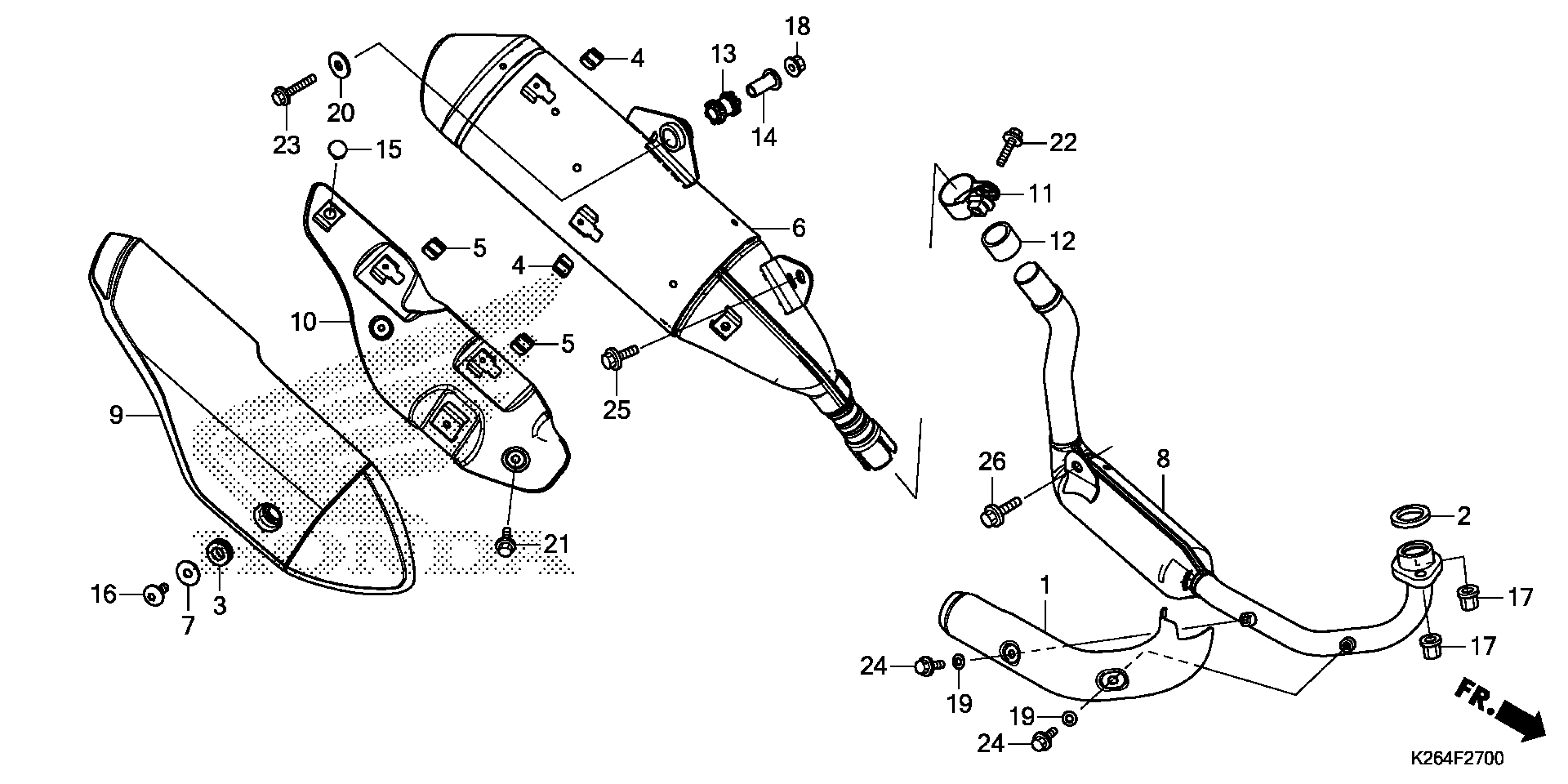

Honda GROM125AC (14) MOTORCYCLE, THA, VIN# MLHJC611-E5000001 TO MLHJC611-E5099999 MUFFLER Diagram

#

Description
Price

1

COVER, EX. PIPE (COO)

18240-K26-305

$17.25

2

GASKET, EX. PIPE

18291-GE2-920

$6.48

3

RUBBER, PROTECTOR GASKET

18293-KSB-900

$1.66

4

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

5

RUBBER, PROTECTOR

18293-MN0-000

$2.13

6

MUFFLER (COO)

18310-K26-305

$318.31

7

COLLAR, MUFFLER PROTECTOR

18316-K26-900

$4.26

8

PIPE, EX.

18320-K26-901

$223.90

9

PROTECTOR, MUFFLER

18355-K26-900

$11.10

10

COVER A, MUFFLER

18356-K26-900

$32.16

11

BAND, MUFFLER

18371-K26-900

$38.16

12

GASKET, MUFFLER

18391-HB7-000

$11.62

13

RUBBER, MUFFLER MOUNTING

18421-K26-900

$1.49

14

COLLAR, MUFFLER MOUNTING

18422-K26-900

$4.49

15

PLUG, HOLE

50318-041-600

$2.11

16

BOLT, SPECIAL (6X16)

90107-K26-900

$1.49

17

NUT, FLANGE (8MM)

90301-KWB-600

$1.49

18

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

19

WASHER, PLAIN (6MM)

94101-06200

$1.49

20

WASHER, PLAIN (8MM)

94103-08200

$1.49

21

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

22

BOLT, FLANGE (8X32)

95701-08032-02

$1.49

23

BOLT, FLANGE (8X40)

95701-08040-02

$1.49

24

BOLT, FLANGE (6X8)

96001-06008-02

$1.54

25

BOLT, FLANGE (8X16) (DR)

96300-08016-04

$1.49

26

BOLT, FLANGE (8X25) (DR)

96300-08025-04

$1.49
