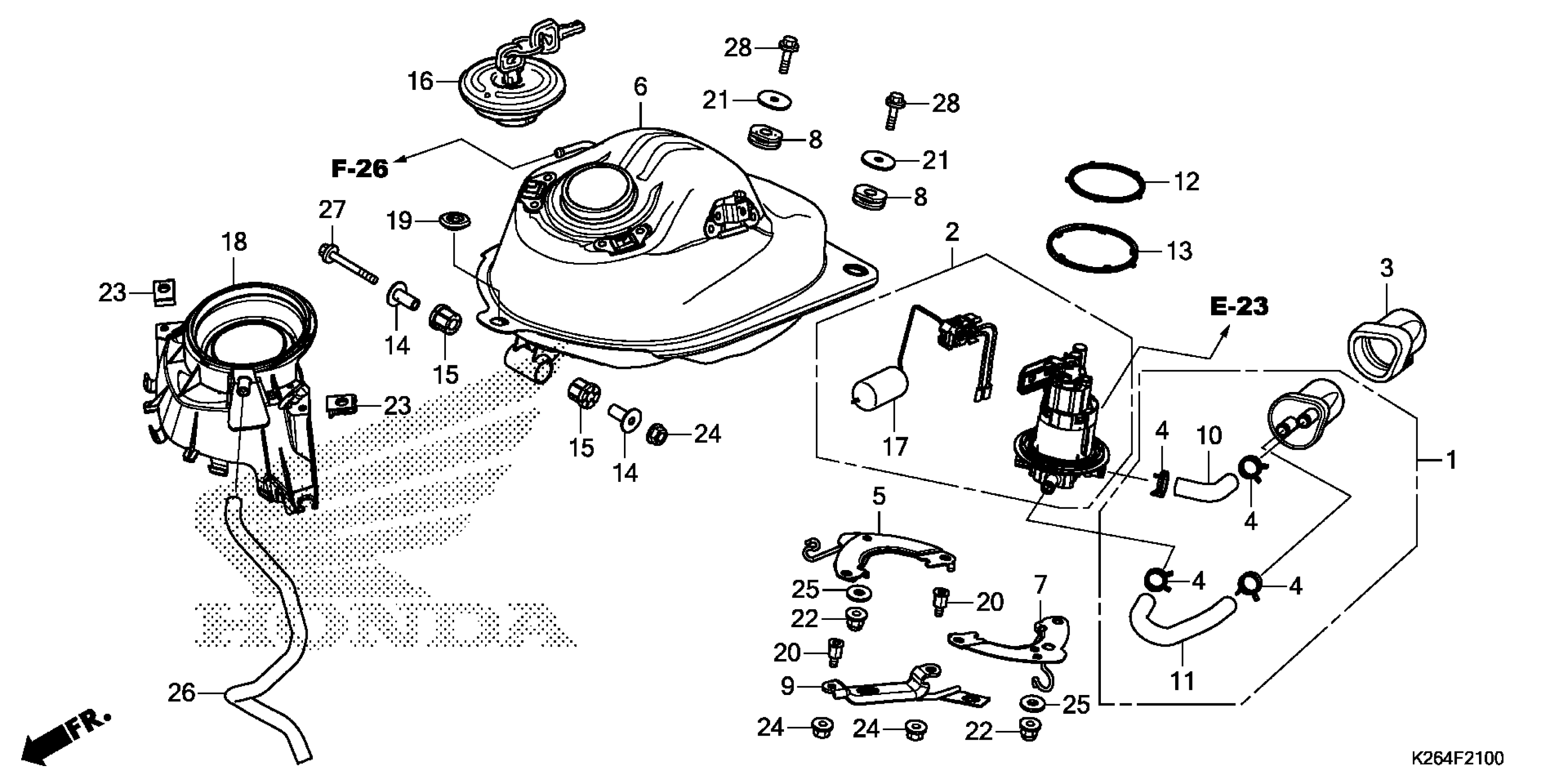

Honda GROM125AC (14) MOTORCYCLE, THA, VIN# MLHJC611-E5000001 TO MLHJC611-E5099999 FUEL TANK Diagram

#

Description
Price

1

FILTER KIT, FUEL | Use up to Frame SN E5000038. This part replaces 06160-K26-910.

06160-K26-911

$63.94

1

FILTER KIT, FUEL

06160-K26-911

$63.94

2

PUMP ASSY., FUEL (MSDS) This part replaces 16700-K26-904.

16700-K26-905

$190.27

2

PUMP ASSY., FUEL (MSDS)

16700-K26-905

$190.27

3

HOLDER, FUEL FILTER

16912-K26-900

$4.23

4

CLAMP, TUBE (14.0)

16962-KYJ-920

$1.49

5

PLATE, R. SETTING

17507-K26-900

$5.16

6

TANK, FUEL

17510-K26-910

$166.24

7

PLATE, L. SETTING

17517-K26-910

$19.59

8

RUBBER, TANK

17531-K26-900

$1.49

9

STAY, FUEL FILTER

17540-K26-900

$9.69

10

TUBE A, FUEL PUMP | Use up to Frame SN E5000038. This part replaces 17541-K26-910.

17541-K26-911

$11.34

10

TUBE A, FUEL PUMP

17541-K26-911

$11.34

11

TUBE B, FUEL PUMP

17542-K26-910

$25.85

12

GASKET, FUEL PUMP

17572-K26-900

$30.58

13

DUST SEAL

17573-K26-900

$2.44

14

COLLAR, FUEL TANK

17614-K26-900

$1.56

15

CUSHION, RR. FUEL TANK PIVOT (FOR FR.)

17615-K26-900

$1.49

16

CAP, FUEL FILLER

17620-K26-911

$127.72

17

FUEL UNIT

37800-K26-902

$100.51

18

COVER, TANK CAP

64460-K26-900

$5.90

19

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

20

BOLT, SPECIAL (6MM)

90101-K26-900

$3.00

21

WASHER, TANK SETTING

90136-428-870

$1.56

22

NUT, CAP (6MM)

90201-415-000

$2.05

23

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

24

NUT, FLANGE (6MM)

94050-06000

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

26

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

27

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

28

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

28

BOLT, FLANGE (6X22) This part replaces 95801-06022-00.

95701-06022-00

$1.80
