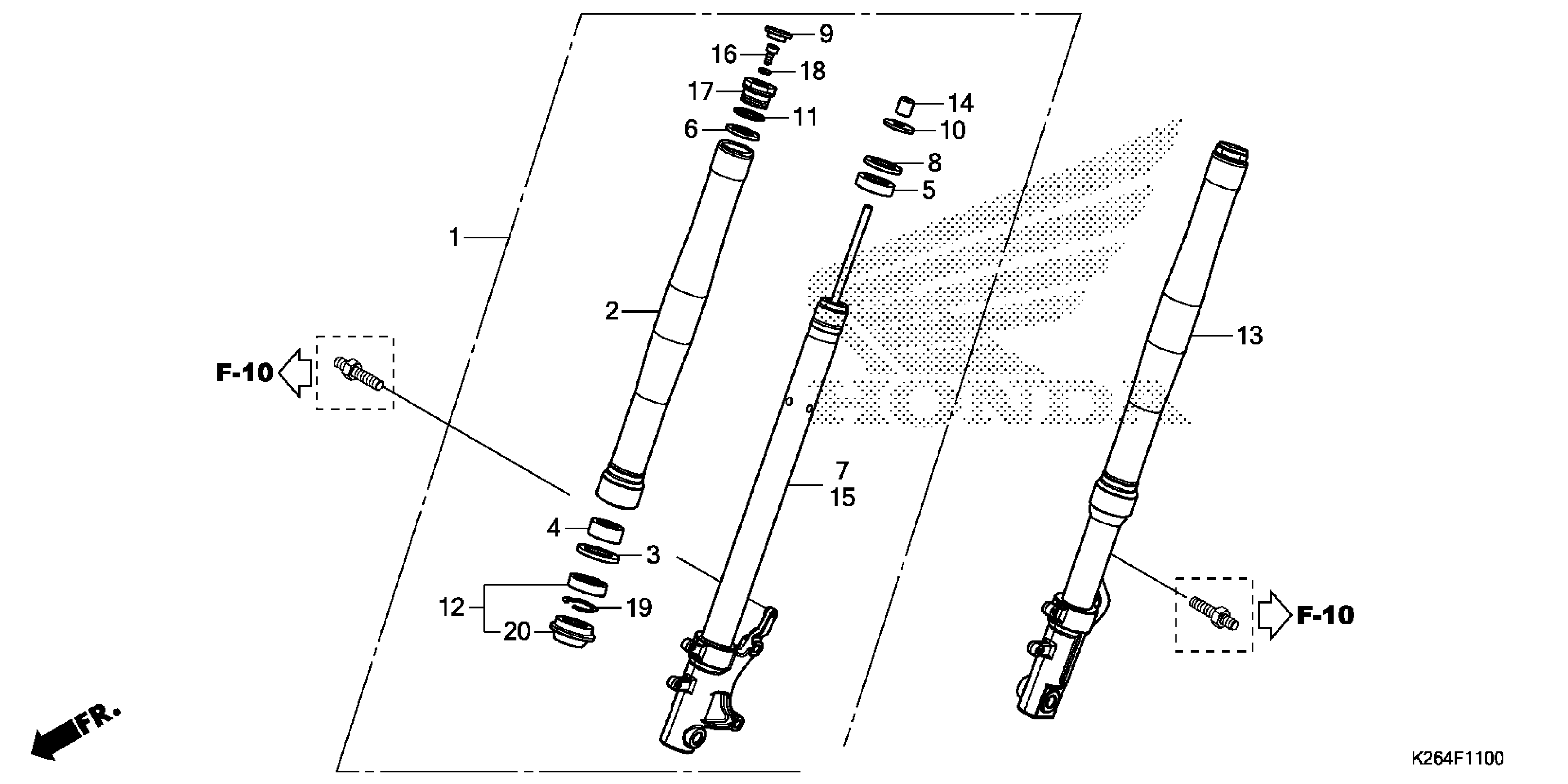

Honda GROM125AC (14) MOTORCYCLE, THA, VIN# MLHJC611-E5000001 TO MLHJC611-E5099999 FRONT FORK Diagram

Description

Price

FORK ASSY., R. FR. (COO) (SHOWA)

51400-K26-305

$462.06

TUBE (OUTER)

51410-K26-901

$164.09

RING, BACK-UP (SHOWA)

51412-KK4-003

$6.30

BUSH, GUIDE

51414-K20-901

$18.05

BUSH, SLIDER

51415-K20-901

$19.05

SEAT

51419-K20-901

$33.94

DAMPER, R. FR.

51425-K26-921

$144.31

RING B, PISTON

51438-K20-901

$13.98

CAP

51449-K20-901

$4.35

RING, STOPPER

51455-K20-901

$22.12

O-RING

51458-K20-901

$12.36

SEAL SET, FR. FORK (SHOWA)

51490-KRM-852

$19.31

FORK ASSY., L. FR. (COO) (SHOWA)

51500-K26-305

$460.65

RUBBER, STOPPER

51517-K20-901

$28.71

DAMPER, L. FR.

51525-K26-921

$157.38

BOLT

90116-K20-901

$8.81

BOLT, FR. FORK

90123-K20-901

$34.35

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

RING, OIL SEAL STOP (SHOWA)

90601-354-000

$4.89

DUST SEAL (SHOWA)

91254-GAA-003

$15.61
