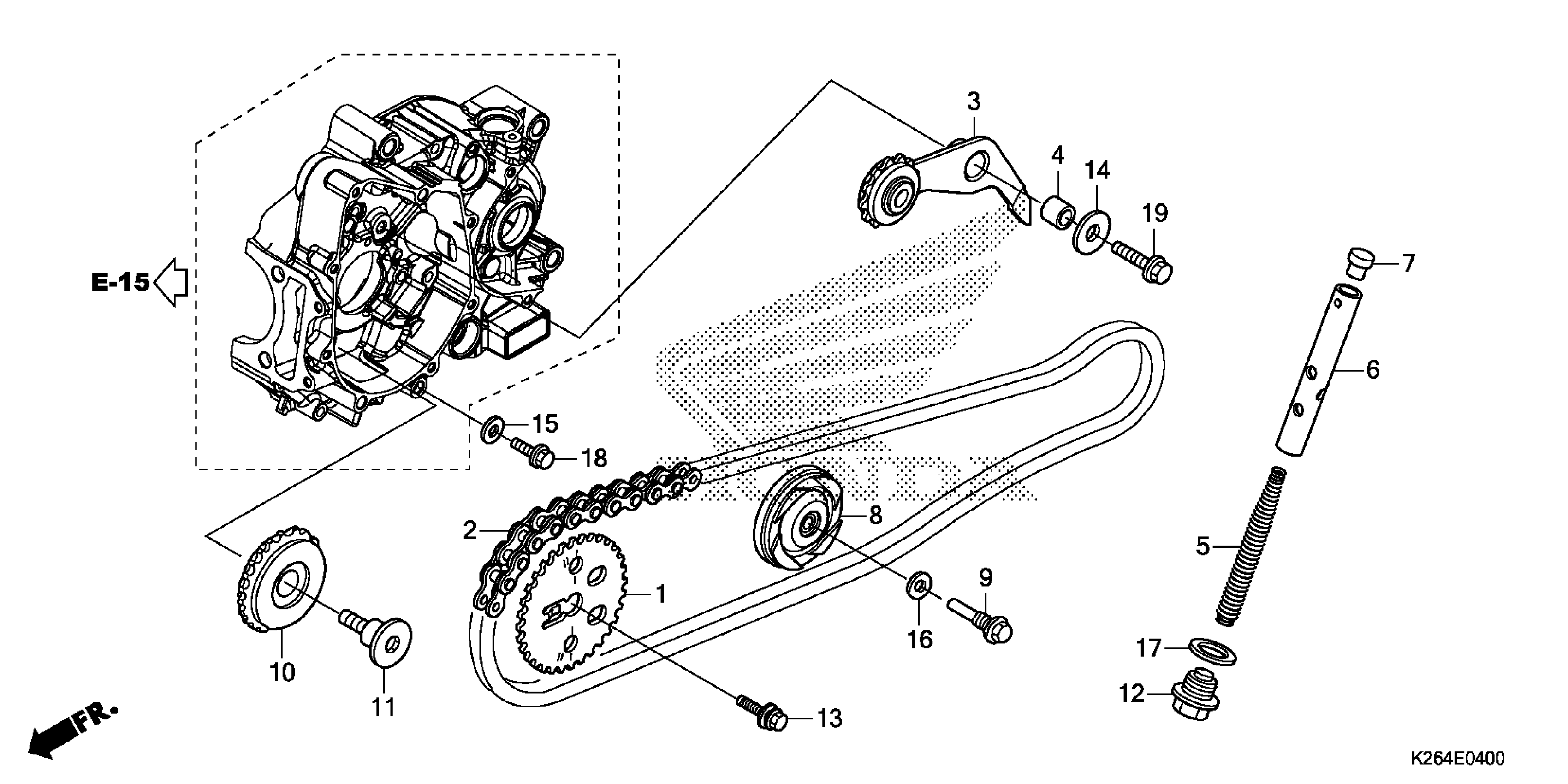

Honda GROM125AC (14) MOTORCYCLE, THA, VIN# MLHJC611-E5000001 TO MLHJC611-E5099999 CAM CHAIN@TENSIONER Diagram

SPROCKET, CAM (32T)

14321-KYZ-900

$20.33

CHAIN, CAM (DID25SH-88LE)

14401-KYZ-T01

$20.44

ARM, CAM CHAIN TENSIONER

14500-K26-900

$24.66

COLLAR, CAM CHAIN TENSIONER

14531-KYZ-900

$1.22

SPRING, CAM CHAIN TENSIONER

14541-GB4-681

$4.54

ROD, CAM CHAIN TENSIONER PUSH

14550-GB0-911

$19.60

ROD, TENSIONER PUSH (CENTRALIZE POWER)

14550-KRS-691

$4.05

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.15

ROLLER, CAM CHAIN GUIDE This part replaces 14610-KWB-600.

14610-KYY-901

Unavailable

ROLLER, CAM CHAIN GUIDE

14610-KYY-901

Unavailable

PIN, GUIDE ROLLER

14615-KFL-850

$0.78

ROLLER, CAM CHAIN GUIDE

14670-KYZ-900

$12.37

BOLT, CAM CHAIN GUIDE ROLLER

14675-KYZ-900

$2.41

BOLT, SEALING (14MM)

90081-035-000

$4.05

BOLT-WASHER (8X22)

90082-KWW-740

$2.22

WASHER (8.5X26X2.3)

90404-KWB-600

$0.41

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

WASHER (8MM)

90475-KWB-600

$0.81

WASHER, SEALING (14MM)

90544-KF0-000

$3.11

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.50

BOLT, FLANGE (8X25)

95701-08025-00

$1.65
