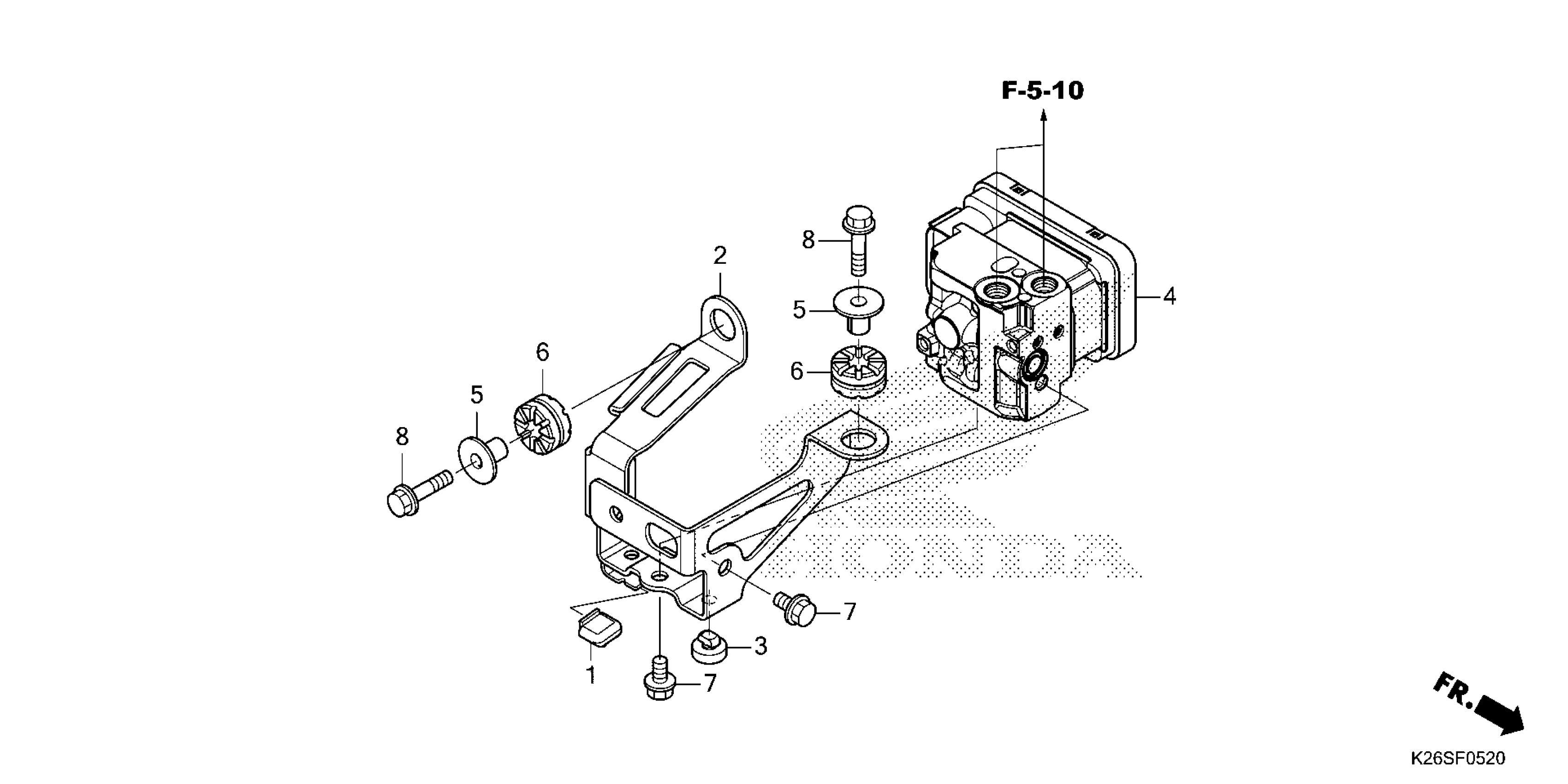

Honda GROM125AAC (26) MOTORCYCLE, THA, VIN# MLHJC925-T5400001 TO MLHJC925-T5499999 ABS MODULATOR Diagram

#

Description

Price

1

RUBBER, PROTECTOR GASKET

18293-KYY-900

$2.40

2

BRACKET, ABS MODULATOR

50245-K26-G50

$9.60

3

RUBBER, LINK STOPPER

50352-GS6-000

$4.31

4

MODULATOR ASSY.

57110-K26-G52

$581.94

5

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$3.83

6

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.13

7

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.16

8

BOLT, FLANGE (6X22)

95701-06022-08

$1.66
