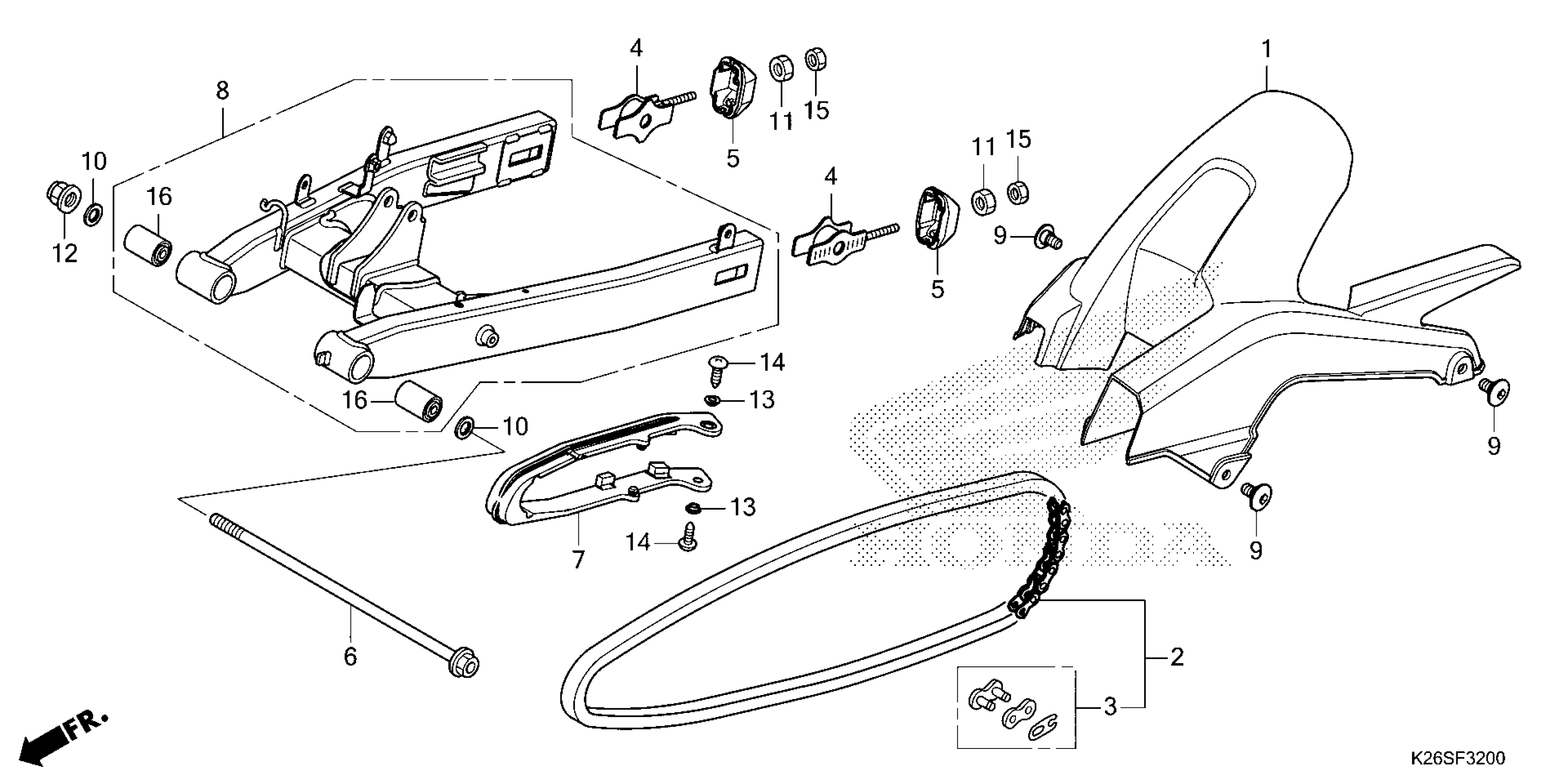

Honda GROM125AAC (25) MOTORCYCLE, THA, VIN# MLHJC925-S5300001 TO MLHJC925-S5399999 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-K26-G00

$21.14

2

CHAIN, DRIVE

40530-K26-M01

$17.52

3

MASTER LINK (DAIDO)

40531-KWV-003

$3.68

4

ADJUSTER, CHAIN

40543-K26-G00

$8.11

5

CAP, SWINGARM END

40546-K26-G00

$8.11

6

AXLE, RR. WHEEL

42301-K26-900

$7.56

7

SLIDER, CHAIN

52170-K26-900

$10.74

8

SWINGARM SUB-ASSY., RR.

52200-K26-G00

$133.79

9

SCREW, PAN (6X12)

90102-K26-B00

$1.49

10

WASHER, PIVOT BOLT

90122-KWB-600

$1.49

11

NUT, SPECIAL (6MM)

90302-KBP-900

$1.94

12

NUT, U (12MM)

90306-KWN-701

$4.17

13

WASHER, FR. SIDE COVER

90556-MB4-000

$2.61

14

SCREW, TAPPING (5X10)

93901-25110

$3.69

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

BUSH

52147-KW7-900

$12.80
