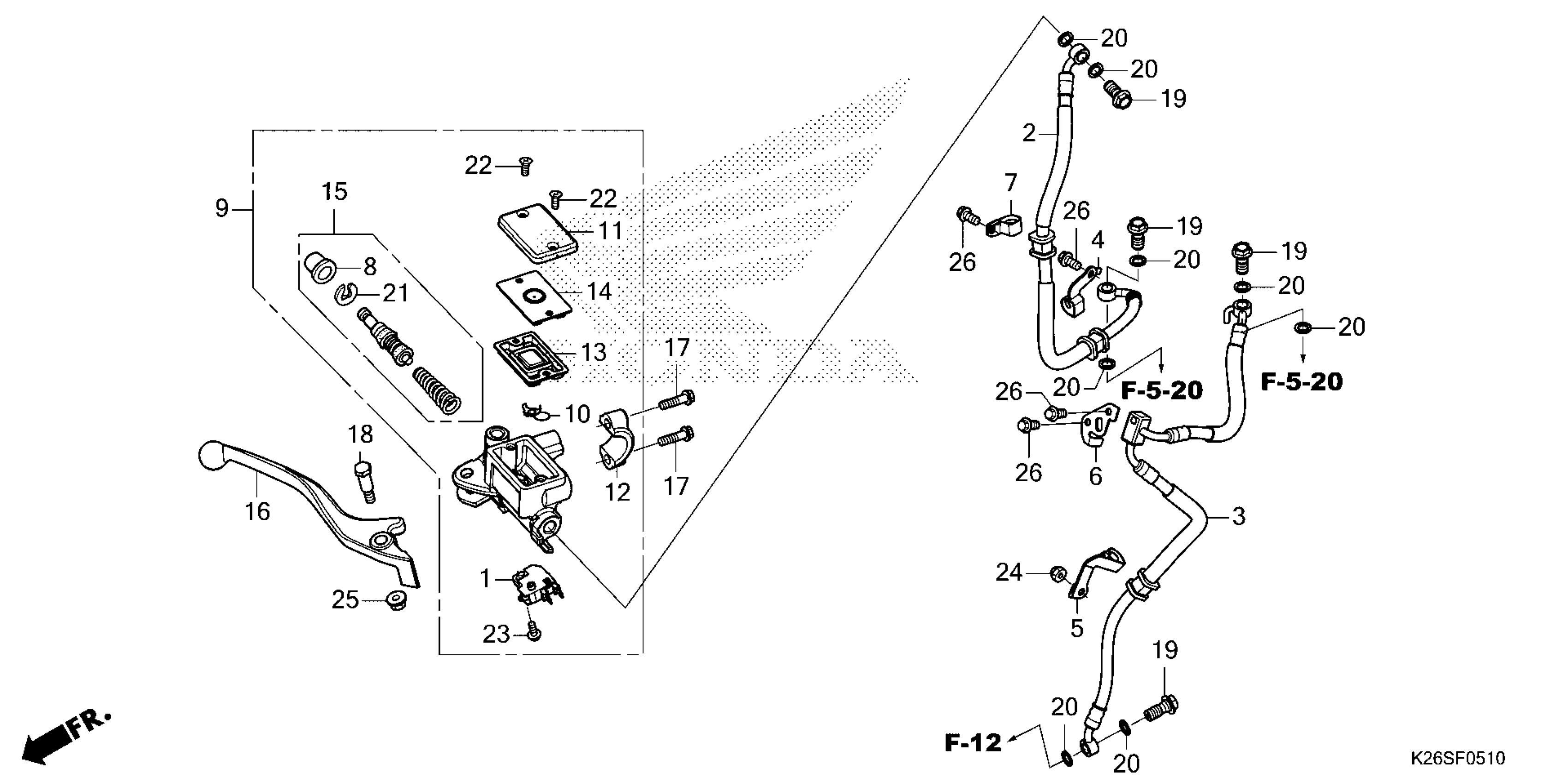

Honda GROM125AAC (25) MOTORCYCLE, THA, VIN# MLHJC925-S5300001 TO MLHJC925-S5399999 FRONT BRAKE MASTER CYLINDER (GROM125A) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.62

2

HOSE COMP A, FR.

45125-K26-G51

$16.30

3

HOSE COMP B, FR.

45128-K26-G51

$32.23

4

CLAMP A, FR. BRAKE HOSE

45155-K26-G50

$3.49

5

CLAMP B, FR. BRAKE HOSE

45157-K26-G50

$3.68

6

STAY A, FR. BRAKE HOSE

45158-K26-G50

$3.68

7

CLAMP C, FR. BRAKE HOSE

45159-K26-G00

$1.58

8

BOOT

45504-410-003

$10.93

9

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-K26-305

$98.23

9

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-K26-901.

45510-K26-305

$98.23

10

PROTECTOR

45512-MA6-006

$3.99

11

CAP, MASTER CYLINDER

45513-HA2-006

$24.74

12

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

13

DIAPHRAGM

45520-GE2-006

$8.35

14

PLATE, DIAPHRAGM

45521-K21-901

$2.07

15

MASTER CYLINDER SET

45530-471-831

Unavailable

16

LEVER, R. HANDLEBAR (COO)

53175-K26-305

Unavailable

16

LEVER, R. HANDLEBAR (COO) This part replaces 53175-K26-901.

53175-K26-305

Unavailable

17

BOLT, FLANGE (6X22)

90013-GHB-660

$2.12

18

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$0.88

19

BOLT, OIL (10X22) (NISSIN)

90145-KPH-B30

$1.64

20

WASHER, OIL BOLT

90545-300-000

$3.72

21

CIRCLIP

90651-MA5-671

$2.38

22

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

22

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

23

SCREW-WASHER (4X12)

90508-K21-921

$0.23

23

SCREW-WASHER (4X12)

93893-04012-07

$1.22

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

24

NUT, CAP (6MM)

94021-06070-0S

$1.48

25

NUT, FLANGE (6MM)

94050-06000

$0.59

26

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable
