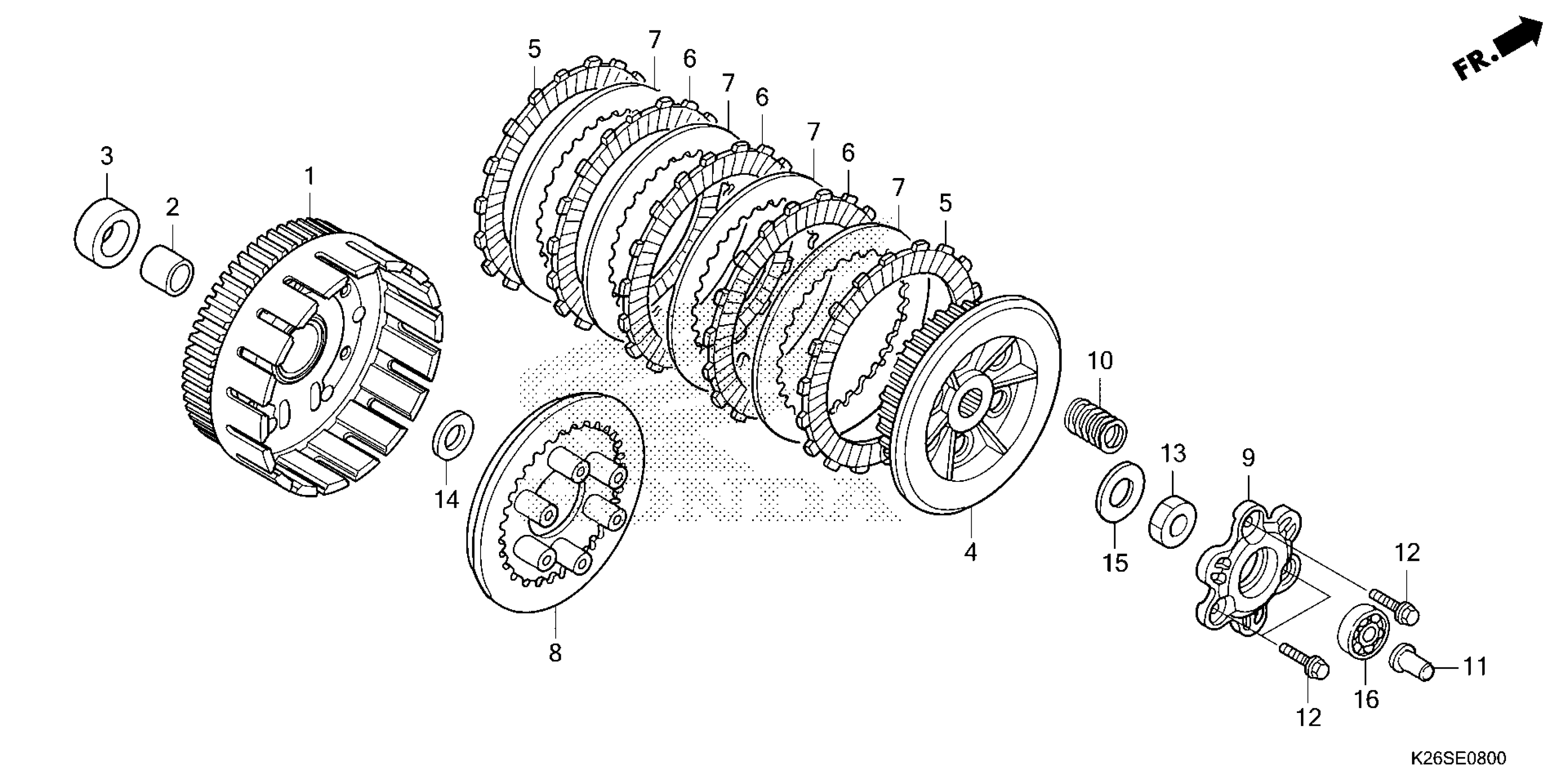

Honda GROM125AAC (25) MOTORCYCLE, THA, VIN# MLHJC925-S5300001 TO MLHJC925-S5399999 CLUTCH Diagram

CLUTCH OUTER (76T)

22100-K26-G02

$173.91

GUIDE, CLUTCH (OUTER)

22115-KPH-900

$1.75

COLLAR, CLUTCH (OUTER)

22116-K26-G00

$2.09

CENTER, CLUTCH

22121-K26-G01

$19.07

DISK, CL FRICTION

22201-K26-M01

$7.88

DISK B, CL FRICTION

22204-K26-M01

$9.84

PLATE, CLUTCH

22321-KE8-000

$11.41

PLATE, CLUTCH PRESSURE

22350-KPH-900

Unavailable

PLATE, CLUTCH LIFTER

22361-K1M-T01

$5.09

SPRING, CLUTCH

22401-KPH-900

$1.48

ROD, CLUTCH LIFTER

22847-K26-900

$7.44

BOLT, SPECIAL FLANGE (6X20)

90050-KPH-900

$0.93

NUT, HEX. (14MM)

90204-KYJ-900

$1.87

WASHER, THRUST (17MM)

90403-KPH-900

$0.94

WASHER (14.2X26X3)

90432-KPT-A00

$1.64

BEARING, RADIAL BALL (6200)

96100-62000-00

$7.83
