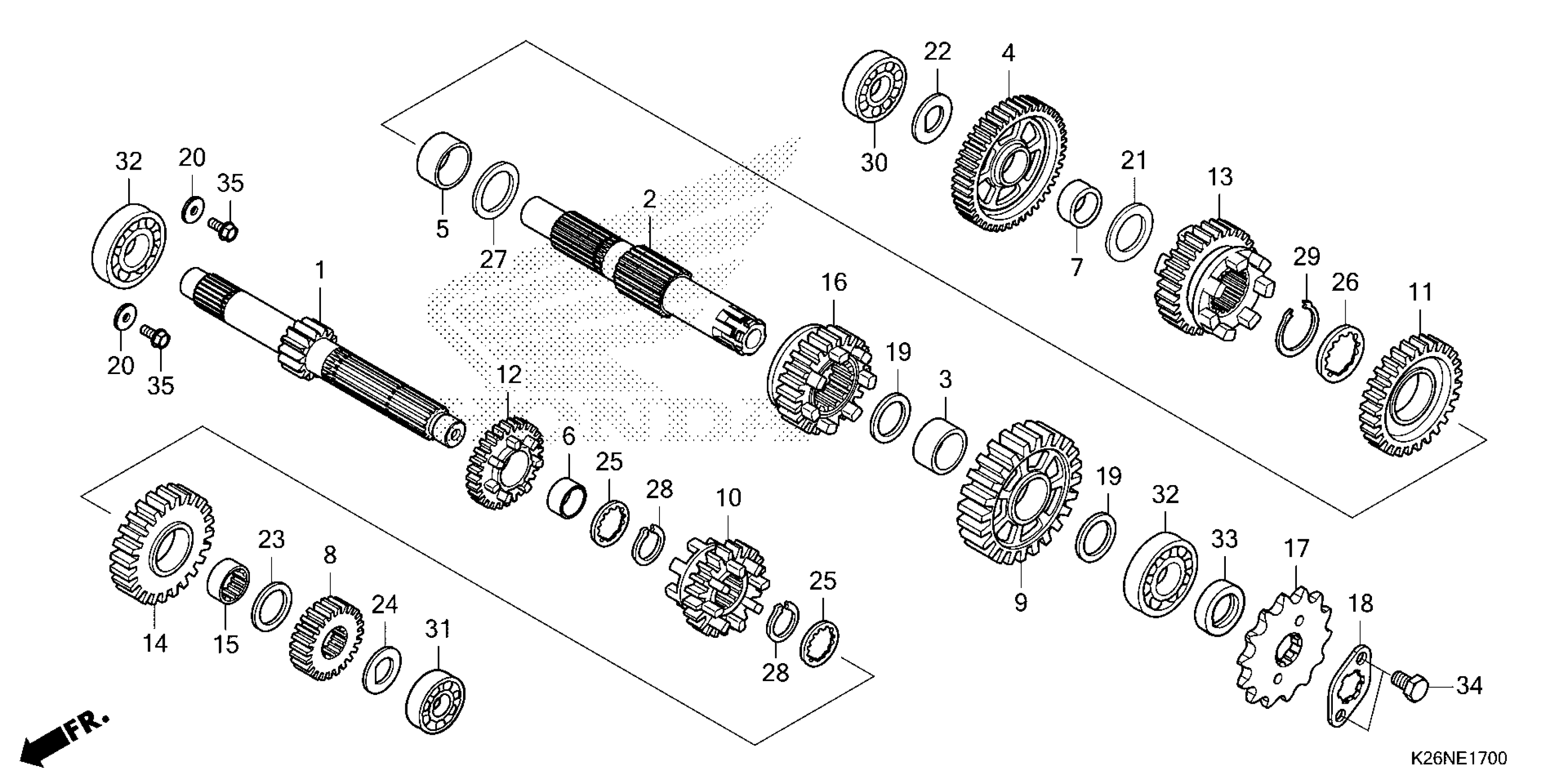

Honda GROM125AAC (24) MOTORCYCLE, THA, VIN# MLHJC925-R5200001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (13T)

23211-K26-G00

$15.97

2

COUNTERSHAFT

23221-K26-G00

$20.32

3

BUSH (17MM)

23415-K26-G00

$7.70

4

GEAR, COUNTER FIRST (37T)

23421-K26-G00

$19.44

5

BUSH (20X9)

23422-GB4-770

$18.28

6

BUSH (17MM)

23422-K26-G00

$4.92

7

BUSH (15MM)

23427-K26-G00

$5.79

8

GEAR, MAINSHAFT SECOND (18T)

23431-K26-G00

$10.11

9

GEAR, COUNTERSHAFT SECOND (32T)

23441-K26-G00

$17.02

10

GEAR, MAINSHAFT THIRD (19T)

23451-K26-G00

$16.77

11

GEAR, COUNTER THIRD (25T)

23461-K26-G00

$15.75

12

GEAR, MAINSHAFT FOURTH (29T)

23471-K26-G00

$12.72

13

GEAR, COUNTER FOURTH (30T)

23481-K26-G00

$19.34

14

GEAR, MAINSHAFT FIFTH (32T)

23491-K26-G00

$20.11

15

COLLAR, SPLINE (17X20X11)

23492-K26-G00

$4.51

16

GEAR, COUNTERSHAFT FIFTH (27T)

23501-K26-G00

$24.48

17

SPROCKET, DRIVE (15T)

23801-K26-G00

$5.85

18

PLATE, FIXING

23802-GN5-910

$4.92

19

WASHER (17X26X1.0)

90405-KYJ-900

$1.49

20

WASHER (6.2X19X2.3)

90407-KWW-740

$2.21

21

WASHER, THRUST (15MM)

90412-187-000

$2.05

22

WASHER, SPECIAL (15MM)

90412-K56-N00

$1.49

23

WASHER (17MM)

90452-115-000

$2.20

24

WASHER This part replaces 90452-KGH-900.

90452-KPH-C00

$2.67

24

WASHER

90452-KPH-C00

$2.67

25

WASHER, SPLINE (17X23X1.6)

90452-KRM-840

$4.25

26

WASHER, SPLINE (20MM)

90453-KRM-840

$1.49

27

WASHER B, THRUST (20MM)

90454-KPS-900

$1.49

28

CIRCLIP (17MM)

90601-KRM-840

$2.74

29

SET-RING (20MM)

90605-KVS-900

$2.11

30

BEARING, RADIAL BALL (15X42X11)

91003-K1M-T01

$11.59

31

BEARING, RADIAL BALL (6001)

91013-KSS-901

$5.11

31

BEARING, RADIAL BALL (6001) This part replaces 91013-KZV-J01.

96100-60010-00

$17.13

31

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13

32

BEARING, RADIAL BALL (6203)

91015-KSS-901

$6.08

32

BEARING, RADIAL BALL (6203) (NA USE ALT:96100-62030-00)

91015-KZV-J01

Unavailable

33

OIL SEAL (17X30X5) (NOK)

91204-KPH-902

$1.49

34

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

35

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
