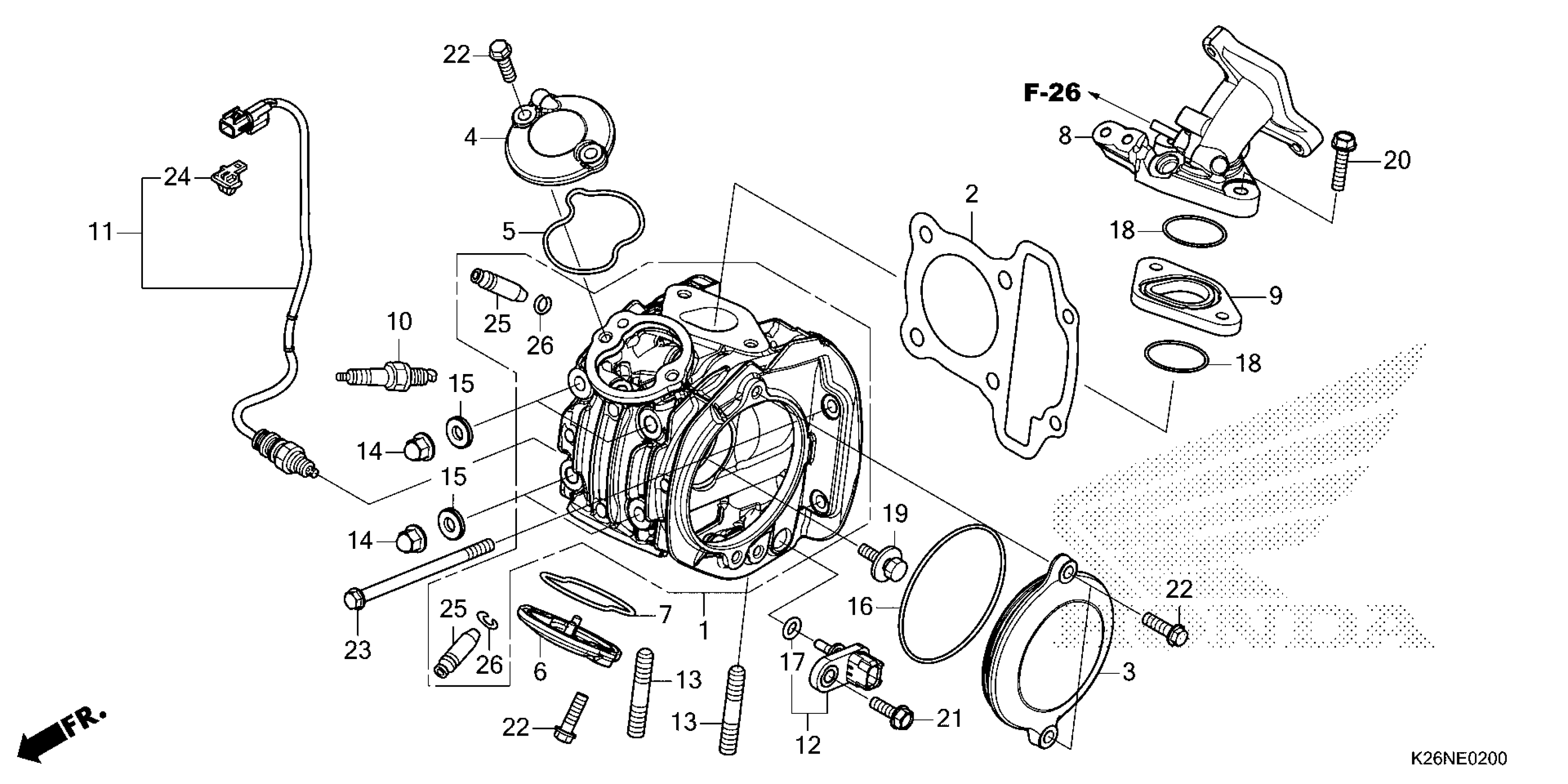

Honda GROM125AAC (24) MOTORCYCLE, THA, VIN# MLHJC925-R5200001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-K26-G00

$131.84

2

GASKET, CYLINDER HEAD

12251-K26-G01

$2.49

3

COVER, L. CYLINDER HEAD SIDE

12341-K26-G00

$30.47

4

COVER, IN. TAPPET HOLE

12361-K26-G00

$18.85

5

GASKET, IN. TAPPET HOLE COVER

12365-K1M-T00

$1.50

6

COVER, EX. TAPPET HOLE

12371-K26-G00

$18.28

7

GASKET, EX. TAPPET HOLE COVER

12375-K1M-T00

$1.50

8

PIPE, INLET

17110-K26-G10

$93.10

9

INSULATOR, IN. PIPE

17119-K26-G00

$4.88

10

SPARK PLUG (CPR7EA-9S) (NGK)

31917-KWB-601

$3.69

11

SENSOR, OXYGEN

36532-K26-G01

$37.93

12

SENSOR ASSY., OIL TEMPERATURE (MITSUBISHI)

37750-K0J-N21

$25.81

13

BOLT, STUD (8X32)

90004-K1M-T00

$1.01

13

BOLT 2, STUD (8X32)

92900-08032-0E

$2.66

14

NUT, CAP (7MM)

90201-K1M-T00

$1.06

15

WASHER A, SEALING

90443-GGN-J00

Unavailable

16

O-RING (74.5X2.5)

91301-K73-V81

$1.13

17

O-RING

91304-K0J-N21

$22.91

18

O-RING (31.5X2.4)

91304-K1M-T00

$1.40

19

BOLT-WASHER (6X12)

93404-06012-00

$1.50

20

BOLT, FLANGE (6X28)

95701-06028-00

$1.68

21

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

22

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

23

BOLT, FLANGE (6X95) (NOT AVAILABLE)

96001-06095-00

$2.37

24

CLIP, CONNECTOR

91565-S3Y-003

$6.38

25

GUIDE, VALVE (OVER SIZE)

12204-K0J-P00

$42.87

26

CLIP, VALVE GUIDE

12206-K0J-N00

$1.01
