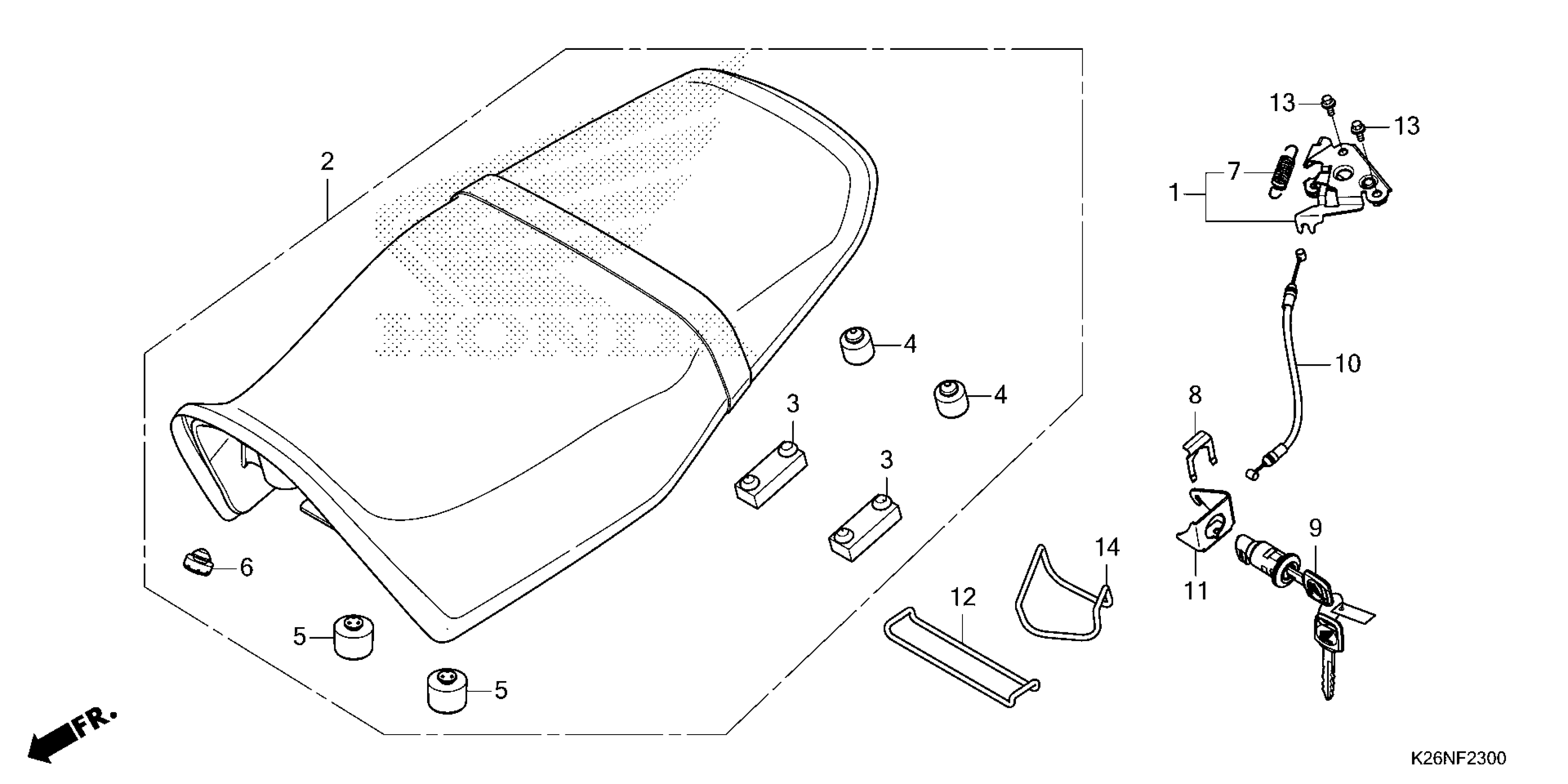

Honda GROM125AAC (22) MOTORCYCLE, THA, VIN# MLHJC925-N5000001 TO MLHJC925-N5099999 SEAT Diagram

#

Description

Price

1

BRACKET, SEAT LOCK

77160-K26-B00

$7.98

2

SEAT ASSY., DOUBLE (TYPE1)

77200-K26-G00ZA

$87.38

3

RUBBER, SEAT SETTING

77205-MFE-670

$5.92

4

RUBBER, SEAT CUSHION

77206-KPK-900

$1.49

5

RUBBER, SEAT CUSHION

77206-KPP-T00

$3.44

6

RUBBER C, SEAT SETTING

77215-KW7-900

$5.44

7

SPRING, SEAT LOCK

77234-KRJ-900

$3.10

8

SPRING, LOCK KEY SETTING

77235-469-000

$5.26

9

KEY, SEAT LOCK

77239-K26-G01

$82.66

10

CABLE, SEAT LOCK

77240-K26-G01

$2.97

11

STAY, SEAT LOCK CABLE

77582-K26-G00

$2.67

12

BAND, TOOL

89012-KZL-930

$1.49

13

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

13

BOLT, FLANGE (6X12) This part replaces 95801-06012-00.

95701-06012-00

$1.62

14

BAND, TOOL | (Optional).

89012-KZL-930

$1.49
