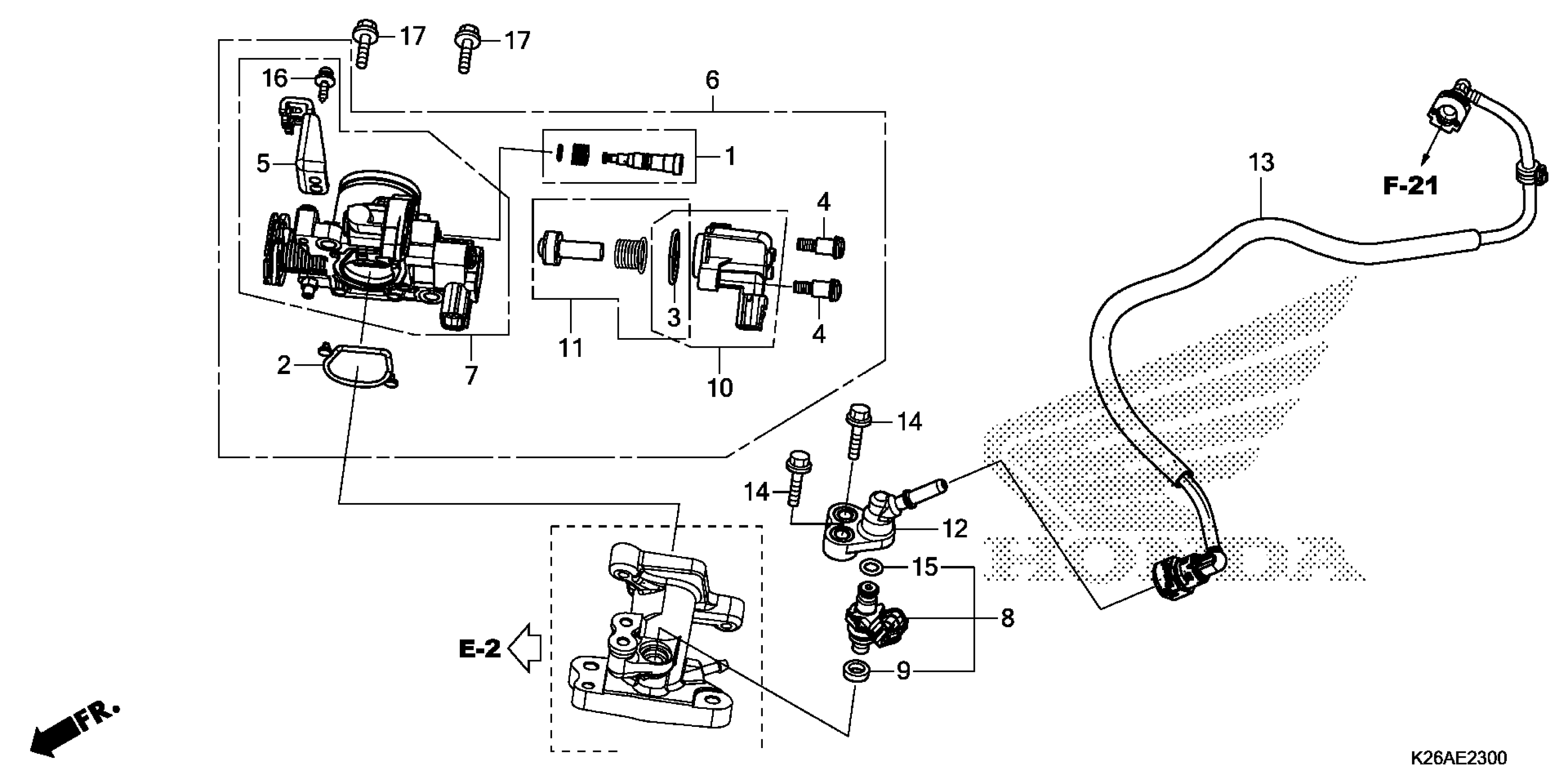

Honda GROM125AAC (20) MOTORCYCLE, THA, VIN# MLHJC755-L5200001 THROTTLE BODY Diagram

SCREW SET

16016-K03-H11

$1.78

O-RING

16075-KYZ-711

$3.15

O-RING (1.9X20.4)

16077-KVB-S51

$1.26

SCREW, TORX (5X8.7)

16081-KYJ-901

$2.53

STAY, WIRE

16169-K26-901

$17.97

BODY ASSY., THROTTLE (Y4B A)

16400-K26-B11

$109.24

BODY SET

16410-K26-B11

$71.85

INJECTOR ASSY., FUEL

16450-K03-H11

Unavailable

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.07

SOLENOID

16480-KVB-S51

$41.69

SEAT SET

16485-GGZ-J01

$3.89

JOINT, INJECTOR

17560-K26-900

$41.71

HOSE, FUEL FEED

17570-K26-C11

$21.97

BOLT, FLANGE (6X22)

90001-K26-900

$5.60

O-RING (6.3X2.2)

91301-GGL-J01

$9.60

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.06

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.06

BOLT, FLANGE (6X20)

96001-06020-00

$1.15
