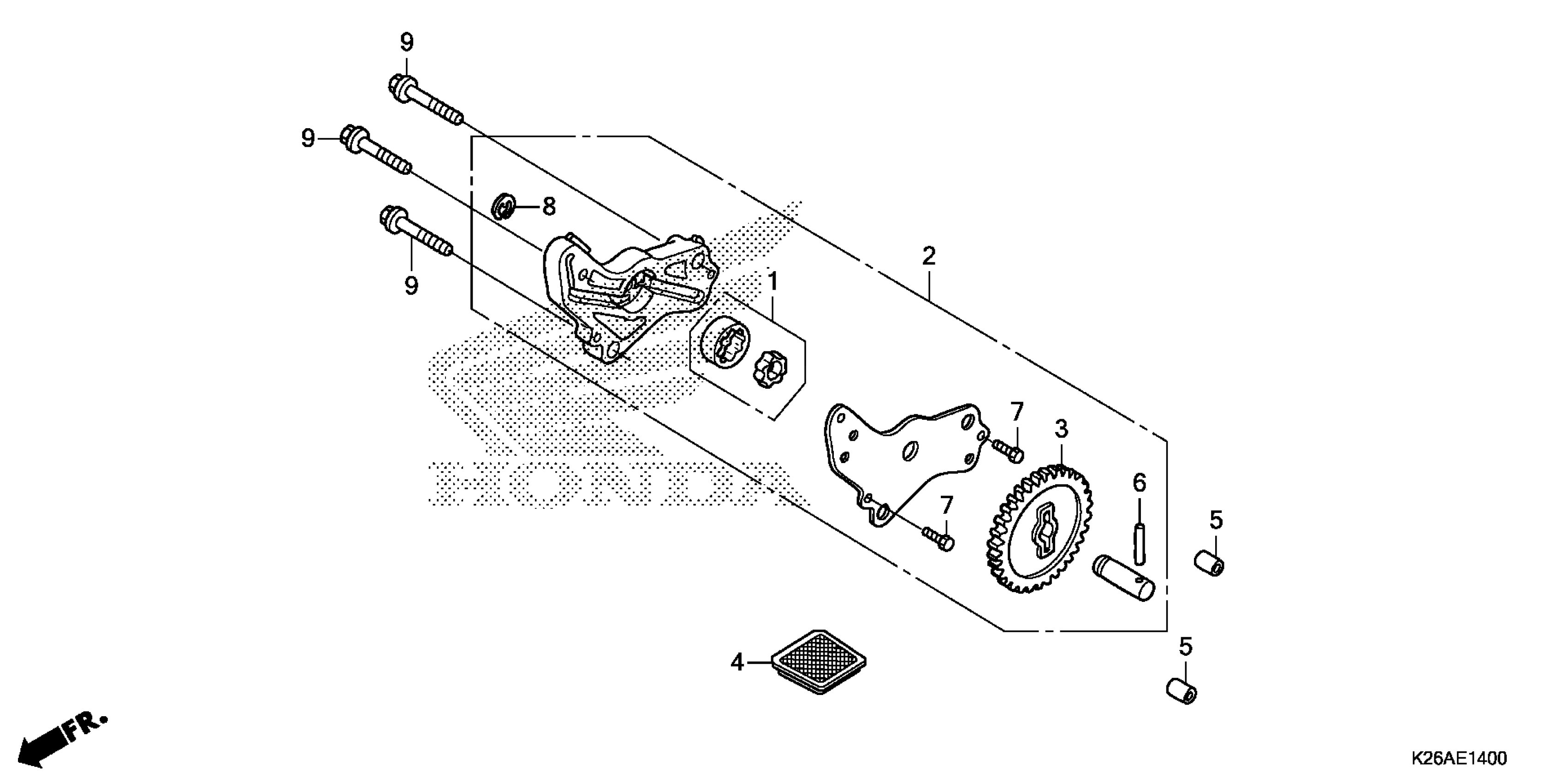

Honda GROM125AAC (20) MOTORCYCLE, THA, VIN# MLHJC755-L5200001 OIL PUMP Diagram

#

Description
Price

1

ROTOR SET, OIL PUMP

15021-GF6-000

$19.01

2

PUMP ASSY., OIL

15100-KTM-D20

$18.85

3

GEAR, OIL PUMP DRIVEN (30T)

15133-KTM-D20

$22.12

4

SCREEN, OIL FILTER

15421-KSP-910

$3.26

5

PIN, DOWEL (8X12)

90702-KFM-900

$0.62

6

ROLLER (4X23.8)

91105-KTM-970

$0.51

6

ROLLER (4X23.8)

96220-40238

$0.72

7

BOLT, HEX. (5X12)

93301-05012-0J

$0.87

8

E-RING (6MM)

94540-06018

$2.89

9

BOLT, FLANGE (6X35)

95701-06035-00

$1.74
