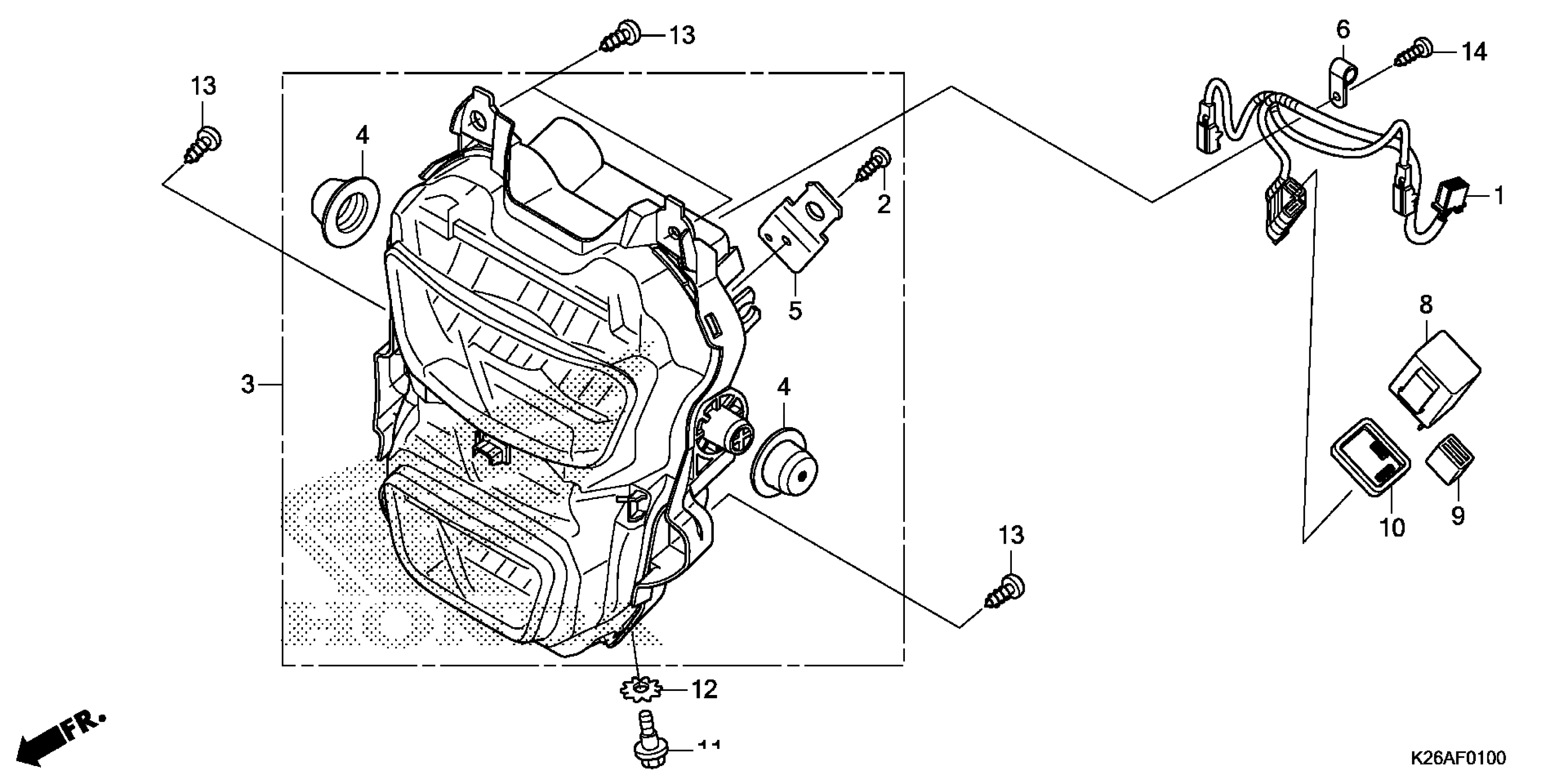

Honda GROM125AAC (20) MOTORCYCLE, THA, VIN# MLHJC755-L5200001 HEADLIGHT Diagram

SUB-HARNESS, FR.

32101-K26-B10

$8.54

SCREW, TAPPING (4X14)

32102-K26-B01

$1.49

HEADLIGHT ASSY.

33100-K26-B11

$185.79

RUBBER, HEADLIGHT

33101-K26-901

$2.98

STAY, TURN SIGNAL RELAY

33105-K26-B01

$2.54

CLAMP, WIRE

33116-KPP-T01

$2.34

RELAY, TURN SIGNAL (MITSUBA)

38301-GN0-603

$13.39

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

COVER, SEAL (MITSUBA)

38307-GJ1-014

$4.15

BOLT, ADJUSTING

90101-GJ6-000

$3.40

WASHER, LOCK (6MM)

90307-GJ6-003

$3.40

SCREW, TAPPING (5X12)

93903-35220

$1.49

SCREW, TAPPING (4X12)

93913-142J0

$1.75
