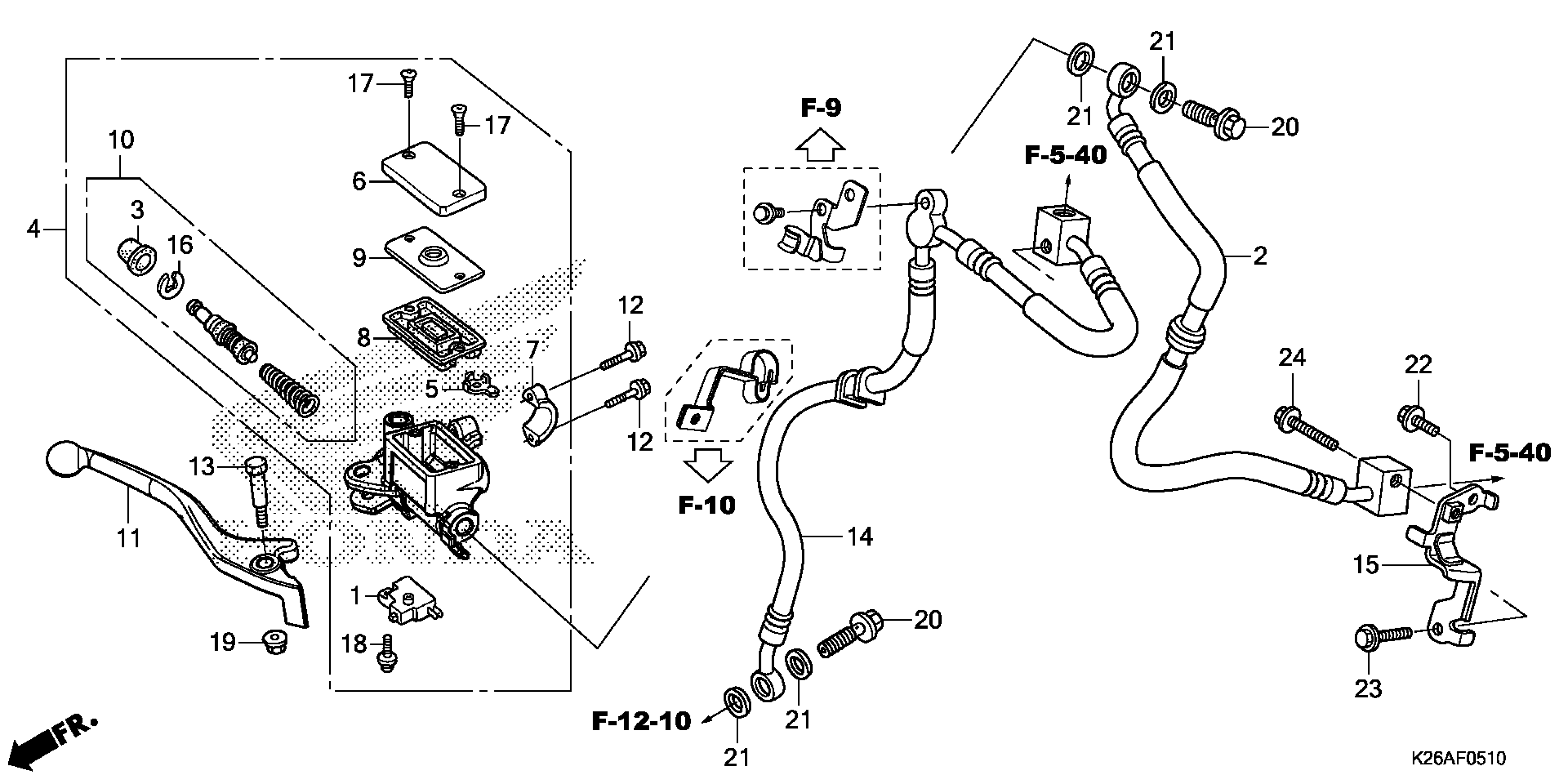

Honda GROM125AAC (20) MOTORCYCLE, THA, VIN# MLHJC755-L5200001 FRONT BRAKE MASTER CYLINDER (ABS) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

HOSE A, FR. BRAKE

45125-K26-C11

$21.62

3

BOOT

45504-410-003

$11.17

4

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-K26-305

$100.43

4

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-K26-901.

45510-K26-305

$100.43

5

PROTECTOR

45512-MA6-006

$4.09

6

CAP, MASTER CYLINDER

45513-HA2-006

$25.29

7

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

8

DIAPHRAGM

45520-GE2-006

$8.57

9

PLATE, DIAPHRAGM

45521-K21-901

$2.10

10

MASTER CYLINDER SET

45530-471-831

$36.42

11

LEVER, R. HANDLEBAR (COO)

53175-K26-305

Unavailable

11

LEVER, R. HANDLEBAR (COO) This part replaces 53175-K26-901.

53175-K26-305

Unavailable

12

BOLT, FLANGE (6X22)

90013-GHB-660

$2.15

13

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$0.90

14

HOSE B, FR. BRAKE

45128-K26-C11

$47.71

15

STAY B, FR. BRAKE HOSE

45158-K26-C10

$10.35

16

CIRCLIP

90651-MA5-671

$2.38

17

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

17

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

18

SCREW-WASHER (4X12)

93893-04012-07

$1.32

18

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

18

SCREW-WASHER (4X12)

90508-K21-921

$0.24

19

NUT, FLANGE (6MM)

94050-06000

$0.60

20

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

21

WASHER, OIL BOLT

90545-300-000

$5.79

22

BOLT, FLANGE (6X10)

95701-06010-07

$1.63

23

BOLT, FLANGE (6X20)

95701-06020-07

Unavailable

24

BOLT, FLANGE (6X25)

95701-06025-07

$1.79
