Description

Price

1

MAINSHAFT (14T)

23211-KPH-900

$23.32

2

COUNTERSHAFT

23221-KPH-900

$21.85

3

BUSH (15MM)

23415-KPH-900

$4.79

4

GEAR, COUNTERSHAFT FIRST (35T)

23421-KPH-900

$15.63

5

GEAR, MAINSHAFT SECOND (20T)

23431-KPH-700

$19.76

6

GEAR, COUNTERSHAFT SECOND (31T)

23441-KPH-900

$10.57

7

GEAR, MAINSHAFT THIRD (20T)

23451-KPH-700

$20.93

8

GEAR, COUNTERSHAFT THIRD (23T)

23461-KPH-900

$19.49

9

GEAR, MAINSHAFT FOURTH (26T)

23471-K41-N00

$16.09

10

GEAR, COUNTERSHAFT FOURTH (24T)

23481-K41-N00

$17.75

11

SPROCKET, DRIVE (15T)

23801-K26-900

$17.36

12

PLATE, FIXING

23802-GN5-910

Unavailable

13

COLLAR (5.1MM)

23911-KPG-T00

$1.29

14

WASHER, THRUST (15MM)

90412-187-000

$1.99

15

WASHER, SPECIAL (12X23)

90412-KPH-900

$0.65

16

PLATE, BEARING HOLDER

90441-KRM-840

$0.56

17

WASHER This part replaces 90452-KGH-900.

90452-KPH-C00

$2.53

18

WASHER, SPLINE (17MM)

90461-115-000

$2.46

19

WASHER, SPLINE (20X1.2)

90461-GB4-770

$3.13

20

CIRCLIP (OUTER) (17MM)

90601-001-000

Unavailable

21

SET-RING (20MM)

90605-200-000

$2.71

22

OIL SEAL (17X30X5) (ARAI)

91204-KPH-901

$0.99

22

OIL SEAL (17X30X5) (NOK)

91204-KPH-902

$1.16

23

BOLT, HEX. (6X10)

92101-06010-0A

$1.41

24

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

25

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.32

26

BEARING, RADIAL BALL (6201)

96100-62010-00

$7.71

27

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.02

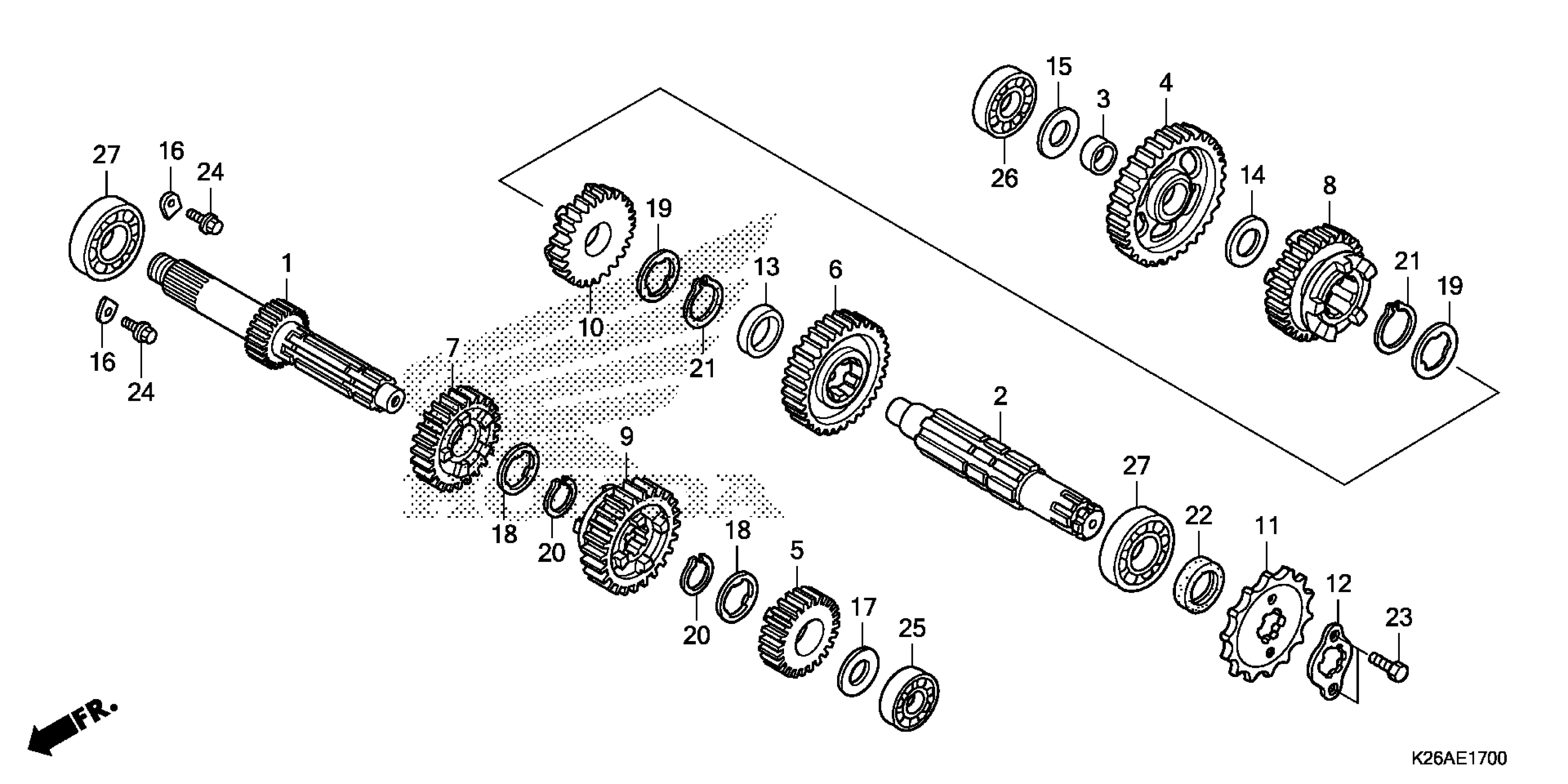

Honda GROM125AAC (19) MOTORCYCLE, THA, VIN# MLHJC755-K5100001 TO MLHJC755-K5199999 TRANSMISSION Diagram
