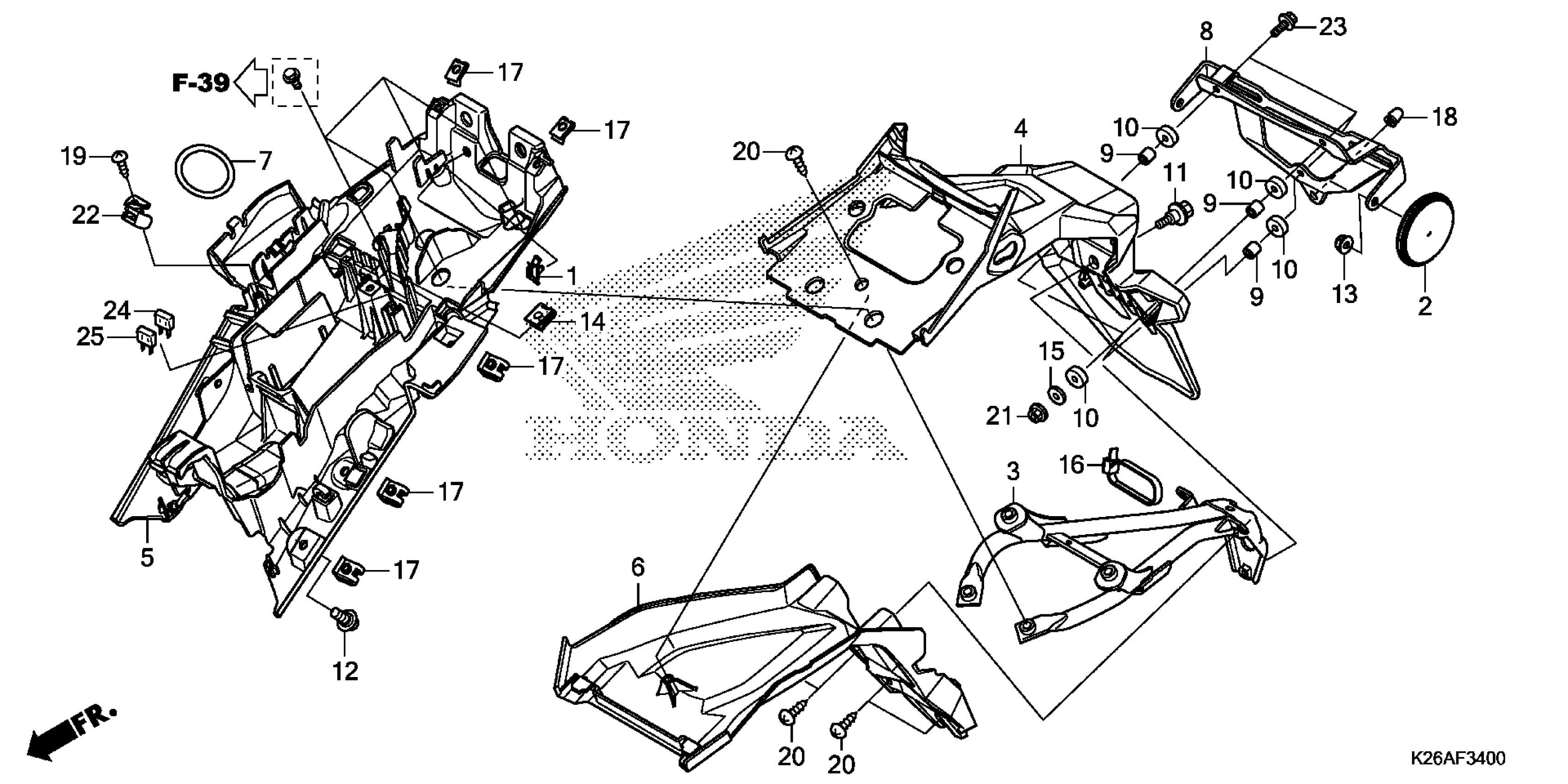

Honda GROM125AAC (19) MOTORCYCLE, THA, VIN# MLHJC755-K5100001 TO MLHJC755-K5199999 REAR FENDER Diagram

CLIP, WIRE HARNESS

32161-393-003

$2.84

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$12.18

STAY, RR. FENDER

50188-K26-B00

$61.13

FENDER SET A, RR. (TYPE1) (WL)

80100-K26-B10ZA

$12.09

FENDER B, RR.

80101-K26-B00

$9.71

FENDER, RR. (INNER)

80102-K26-B00

$5.46

BAND, TOOL | (Optional).

80124-K26-900

$4.51

BRACKET, NUMBER PLATE

84701-K26-910

$51.43

COLLAR, NUMBER BRACKET

84702-K26-950

$0.81

RUBBER, NUMBER BRACKET

84703-K26-950

$1.57

BOLT, FLANGE (6MM)

90103-K26-B00

$0.49

SCREW, PAN (5X13)

90117-KVG-A20

$0.90

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.28

NUT, SPRING (6MM)

90320-MM5-000

$2.62

WASHER (6MM)

90485-286-000

$1.50

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

PLUG, CONE TYPE

90899-422-610

$1.84

SCREW, TAPPING (4X12)

93903-24310

Unavailable

SCREW, TAPPING (5X16)

93903-25380

$0.84

NUT, FLANGE (6MM)

94050-06000

$0.60

CLIP, WIRE (2X78)

94591-27000

$2.80

BOLT, FLANGE (6X25)

95801-06025-07

$1.66

FUSE, MINI (10A)

98200-41000

$1.22

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.12
