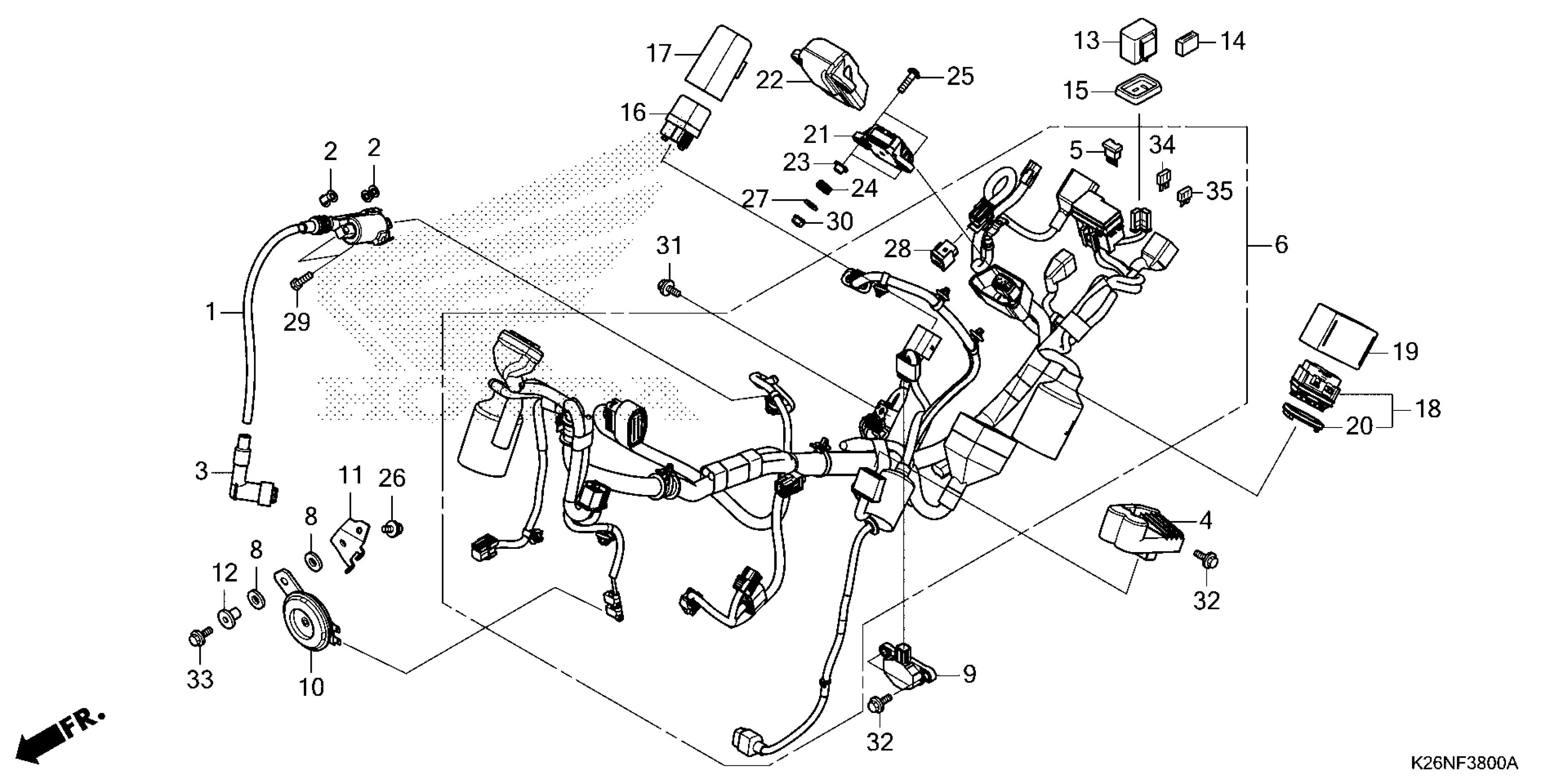

Honda GROM125A2AC (23) MOTORCYCLE, THA, VIN# MLHJC925-P5100001 TO MLHJC925-P5199999 WIRE HARNESS Diagram

COIL, IGNITION

30510-K26-G01

$24.59

SPACER, IGNITION COIL

30520-GFM-900

$2.61

CAP ASSY., NOISE SUPPRESSOR

30700-K2F-T01

$10.52

RECTIFIER, REGULATE (SHINDENGEN)

31600-K2E-T01

$123.64

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-K26-G60

$566.41

SLIDER

32160-K76-T61

$18.89

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.51

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$150.05

HORN (HIGH)

38110-KWW-A41

$14.34

STAY, HORN

38111-K26-900

$4.16

COLLAR, HORN SETTING

38117-KYZ-T00

$1.49

RELAY, TURN SIGNAL (MITSUBA)

38301-GN0-603

$13.39

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

COVER, SEAL (MITSUBA)

38307-GJ1-014

$4.15

RELAY, STARTER (HONDALOCK)

38501-KVB-901

$22.10

SUSPENSION, STARTER RELAY (HONDALOCK)

38506-KWW-711

$4.39

PGM-FI UNIT

38770-K26-G11

$120.85

SUSPENSION, ENGINE CONTROL UNIT

38771-K76-T60

$3.07

SEAL, RING

38775-K76-T61

$164.95

SENSOR ASSY., GYRO

39960-K26-G51

$434.92

RUBBER, G-SENSOR

39961-K26-C10

$6.59

COLLAR (6.2X5)

50249-K26-C10

$1.49

RUBBER, SENSOR MOUNTING

64535-K26-C11

$12.75

BOLT, TORX (6X22)

90103-K26-G80

$1.49

BOLT, FLANGE (6X10)

90105-K26-B00

$1.02

WASHER, RR. COVER GROMMET (FOR FR.)

90439-MB0-000

$1.72

CONNECTOR, DUMMY (6P 025M)

91771-MKG-D81

$8.77

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49
