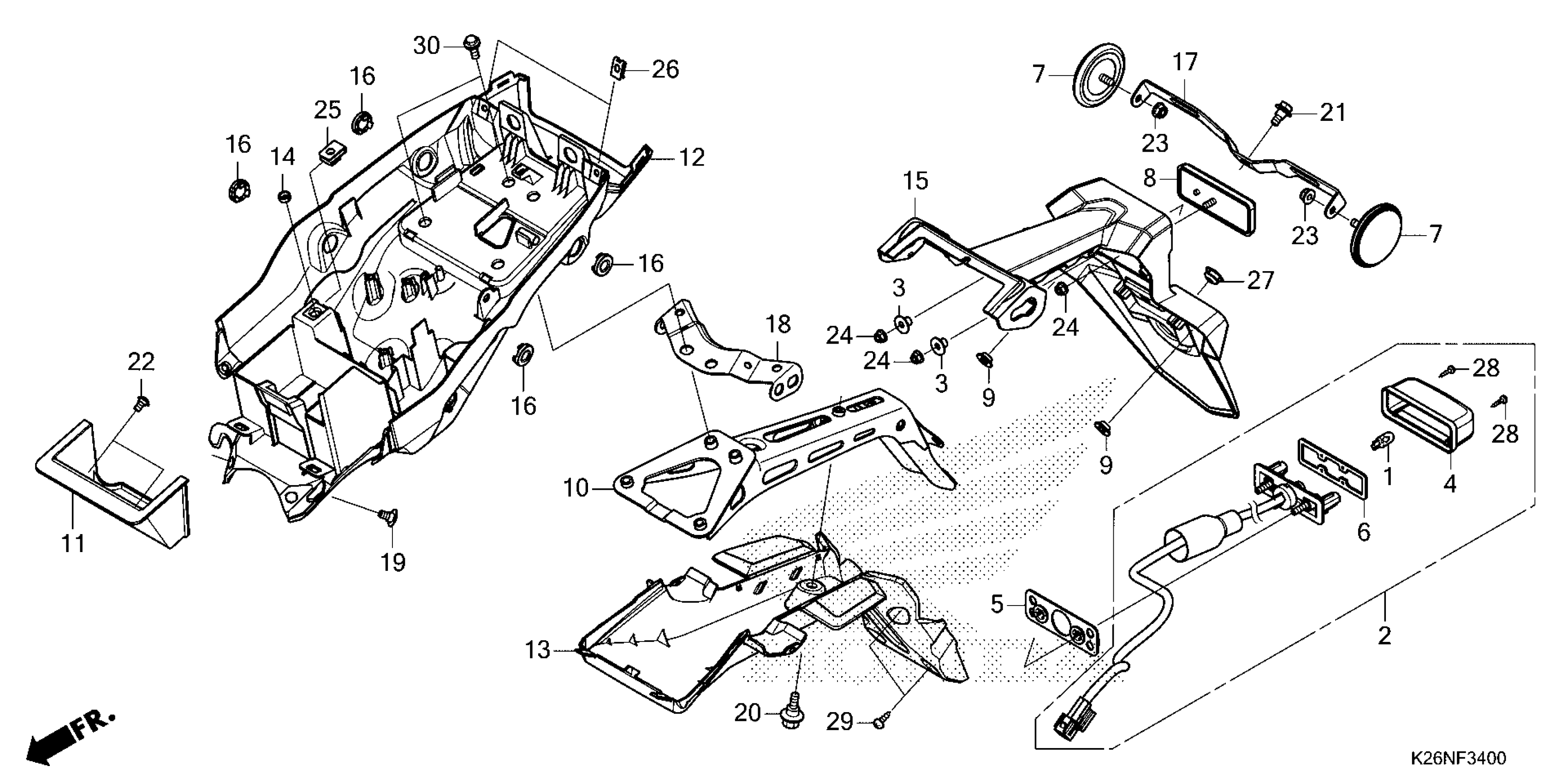

Honda GROM125A2AC (23) MOTORCYCLE, THA, VIN# MLHJC925-P5100001 TO MLHJC925-P5199999 REAR FENDER Diagram

BULB, POSITION (12V 5W) (STANLEY)

33301-K07-901

$3.36

LIGHT ASSY., LICENSE (12V 5W)

33720-K26-G01

$69.62

COLLAR, LICENSE LIGHT

33721-K26-B00

$1.49

COVER, LICENSE (COO) This part replaces 33722-KWN-901.

33722-K26-305

$10.56

COVER, LICENSE (COO)

33722-K26-305

$10.56

RUBBER, LICENSE LIGHT

33728-KPP-T00

$4.41

GASKET, LENS

33729-MCZ-003

$9.48

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

REFLECTOR, REFLEX

33741-KPL-902

$7.58

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$5.12

STAY, RR. FENDER

50188-K26-G00

$75.95

FENDER B, RR.

80101-K26-G00

$9.84

FENDER, RR. (INNER)

80102-K26-G00

$6.39

COLLAR, RR. FENDER

80108-K45-N40

$1.49

FENDER A, RR.

80110-K26-G00

$9.36

CAP, RR. FENDER

80126-K26-G00

$2.10

BRACKET, NUMBER PLATE

84700-K26-G10

$9.98

STAY, RR. TURN SIGNAL

84710-K26-G00

$8.85

SCREW, PAN (6X12)

90106-K26-900

$1.49

BOLT, FLANGE (6MM)

90111-162-000

$2.89

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.66

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

NUT, U (5MM)

90301-KWN-901

$1.49

NUT, CLIP (6MM)

90311-MT3-000

$5.78

NUT, CLIP (5MM)

90677-KAN-961

$4.07

PLUG, HOLE

90852-KPP-T00

$1.66

SCREW, TAPPING (4X16)

93901-24480

$1.49

SCREW, TAPPING (5X12)

93903-25280

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
