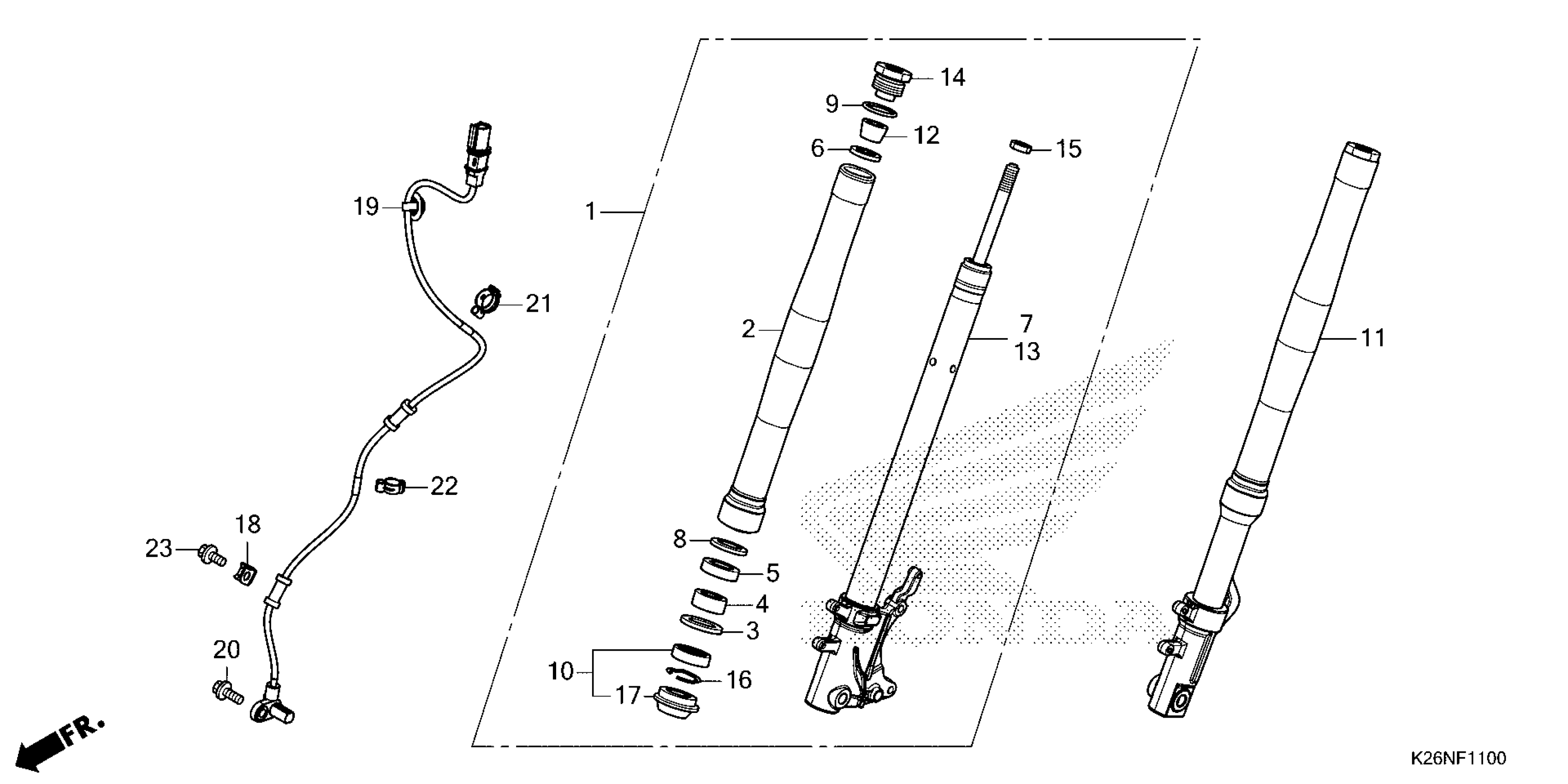

Honda GROM125A2AC (23) MOTORCYCLE, THA, VIN# MLHJC925-P5100001 TO MLHJC925-P5199999 FRONT FORK Diagram

FORK ASSY., R. FR.

51400-K26-G51

$371.81

TUBE (OUTER)

51410-K26-B01

$164.09

RING, BACK-UP (SHOWA)

51412-KK4-003

$6.30

BUSH, GUIDE

51414-K0F-T01

$9.51

BUSH, SLIDER

51415-K20-901

$19.05

SEAT

51419-K20-T21

$1.76

DAMPER, R. FR.

51425-K26-G51

$306.43

RING B, PISTON

51438-K20-901

$13.98

O-RING

51458-K20-901

$12.36

SEAL SET, FR. FORK (SHOWA)

51490-KRM-852

$19.31

FORK ASSY., L. FR. (SHOWA)

51500-K26-G51

$354.63

RUBBER, STOPPER

51517-K20-T21

$1.99

DAMPER, L. FR.

51525-K26-G01

$312.15

BOLT, FR. FORK

90123-K20-T21

$20.45

NUT, LOCK (12MM) (SOURCE: VINTAGE PARTS INC.)

90301-MB9-950

$3.01

RING, OIL SEAL STOP (SHOWA)

90601-354-000

$4.89

DUST SEAL (SHOWA)

91254-GAA-003

$15.61

GUIDE, SENSOR WIRE

38515-K26-C10

$2.82

SENSOR, FR. WHEEL SPEED

38520-K26-G51

$27.31

BOLT, FLANGE (6X14) (NOT AVAILABLE)

90117-KZZ-J80

$0.53

CLIP, CABLE (14MM)

90690-MCA-003

$1.63

CLIP, CABLE (10MM)

90690-MJE-D11

$2.04

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.66
