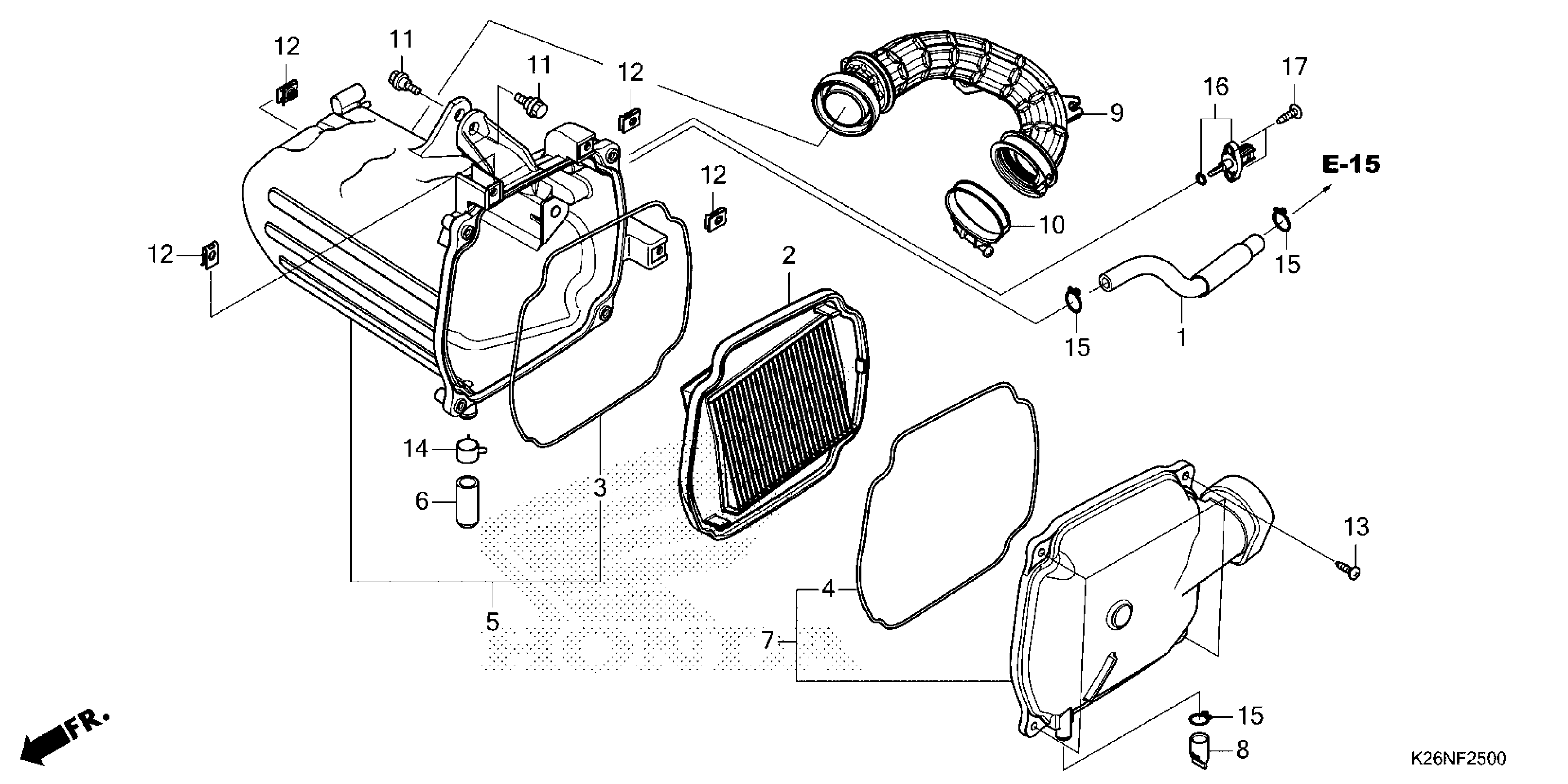

Honda GROM125A2AC (23) MOTORCYCLE, THA, VIN# MLHJC925-P5100001 TO MLHJC925-P5199999 AIR CLEANER Diagram

TUBE, BREATHER

15761-K26-G00

$7.54

ELEMENT, AIR CLEANER

17210-K26-G00

$7.78

SEAL, AIR CLEANER COVER

17213-K26-G00

$2.00

SEAL, AIR CLEANER COVER

17213-K26-G00

$2.00

CASE SUB-ASSY., AIR CLEANER

17226-K26-G12

$13.23

TUBE, VINYL (11X15X35)

17227-KPK-900

$2.92

COVER SUB-ASSY., AIR CLEANER

17235-K26-G00

$7.18

PLUG, AIR CLEANER DRAIN

17236-KVB-900

$1.49

TUBE, AIR CLEANER CONNECTING

17253-K26-G00

$22.43

BAND, AIR CLEANER CONNECTING TUBE (44)

17256-K94-T00

$7.18

BOLT, FLANGE (6MM)

90116-KVB-900

$1.49

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

SCREW, TAPPING (5X20)

93903-25480

$1.49

CLAMP, TUBE (D13)

95002-41300-08

$2.92

CLIP, TUBE (C12)

95002-80000

$1.49

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$44.57

SCREW, TAPPING (5X20)

93913-255J0

$1.72
