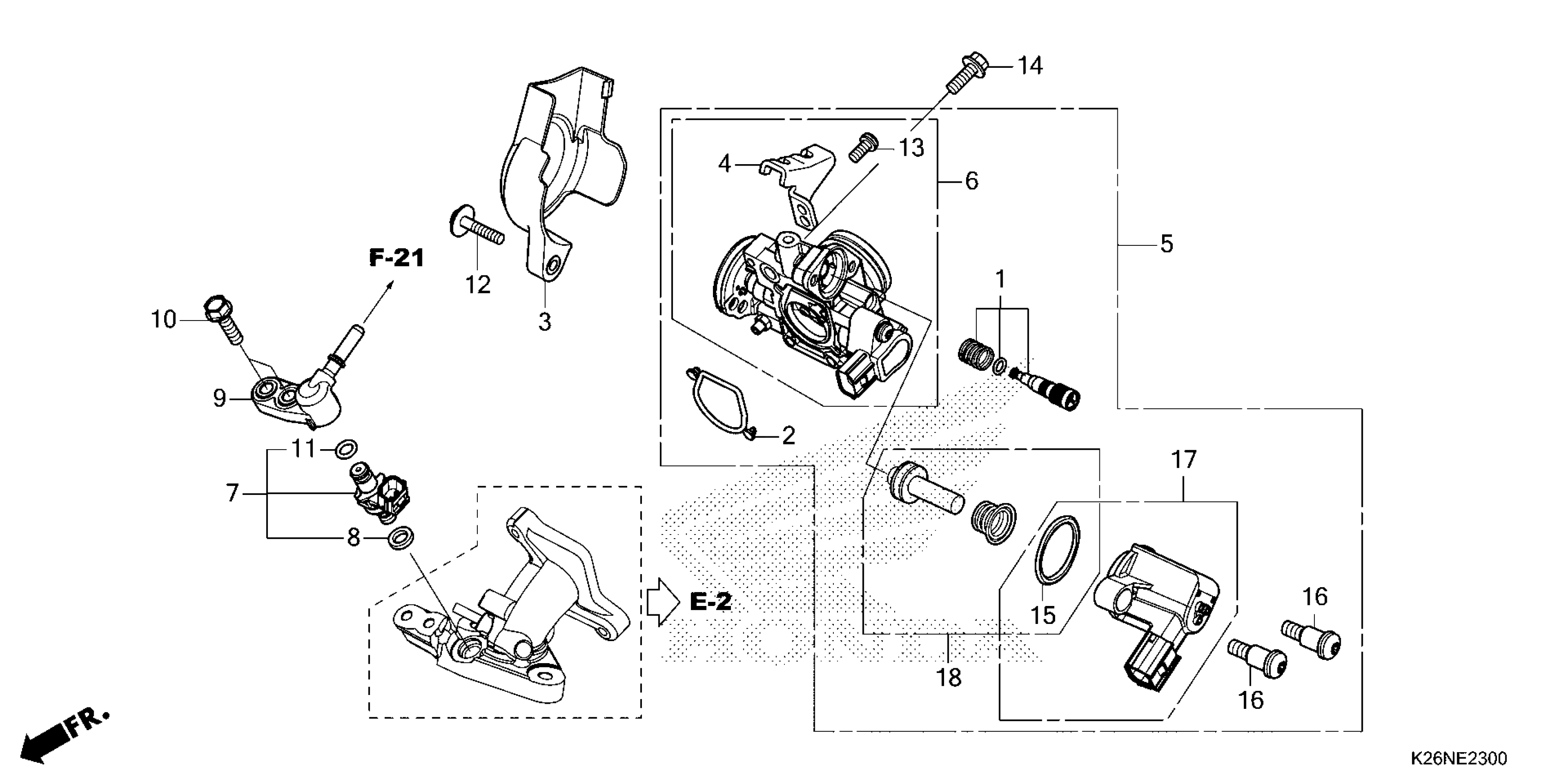

Honda GROM1252AC (22) MOTORCYCLE, THA, VIN# MLHJC921-N5000001 TO MLHJC921-N5099999 THROTTLE BODY Diagram

SCREW SET

16016-K03-H11

$1.98

O-RING

16075-KYZ-711

$3.51

COVER, THROTTLE

16157-K26-G00

$1.72

STAY, WIRE

16169-K18-901

$14.07

BODY ASSY., THROTTLE (GQYTB A)

16400-K26-G11

$127.23

BODY SET

16410-K26-G11

$80.93

INJECTOR ASSY., FUEL

16450-K76-T61

$40.43

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.14

JOINT, INJECTOR

17560-K26-G00

$39.92

BOLT, FLANGE (6X22)

90001-K26-900

$6.25

O-RING (6.3X2.2)

91301-GGL-J01

$10.46

BOLT-WASHER (5X25)

93414-05025-08

$1.49

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

O-RING (1.9X20.4)

16077-KVB-S51

$1.49

SCREW, TORX (5X8.7)

16081-KPH-701

$3.12

SOLENOID

16480-KVB-S51

$46.77

SEAT SET

16485-GGZ-J01

$4.19
