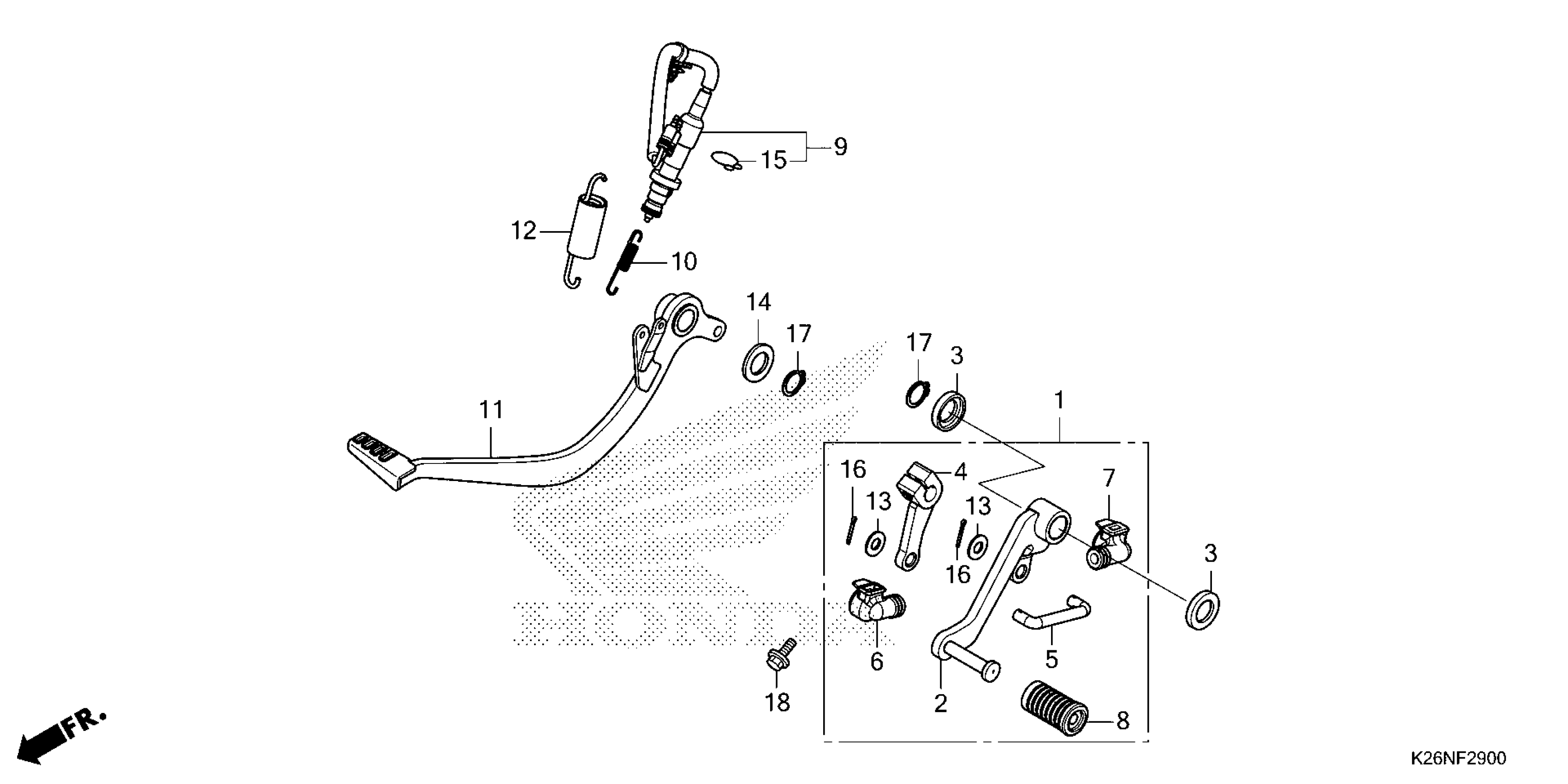

Honda GROM1252AC (22) MOTORCYCLE, THA, VIN# MLHJC921-N5000001 TO MLHJC921-N5099999 PEDAL Diagram

PEDAL ASSY., CHANGE

24700-K26-900

$48.32

PEDAL, GEARSHIFT (COO)

24701-K26-305

$22.72

PEDAL, GEARSHIFT (COO) This part replaces 24701-K26-900.

24701-K26-305

$22.72

WASHER, CHANGE PEDAL

24703-KGH-900

$1.49

ARM, GEARSHIFT

24711-K26-900

$5.72

TIE ROD

24720-K26-900

$7.80

COVER, CHANGE PEDAL

24721-K26-900

$3.75

COVER, CHANGE PEDAL

24721-KW6-960

$1.49

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP

35350-K26-G01

$14.85

SPRING, STOP SWITCH

35357-K26-900

$1.49

PEDAL, BRAKE

46500-K26-G00

$15.53

SPRING ASSY., BRAKE PEDAL

46513-KPP-900

$2.15

WASHER, PLAIN (7MM) (NOT AVAILABLE)

90502-155-000

$2.44

WASHER (15.2X25)

90557-230-000

$2.39

CLIP, SWITCH COVER

90601-KAF-003

$2.67

PIN, COTTER (2.0X12)

94201-20120

$1.49

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55
