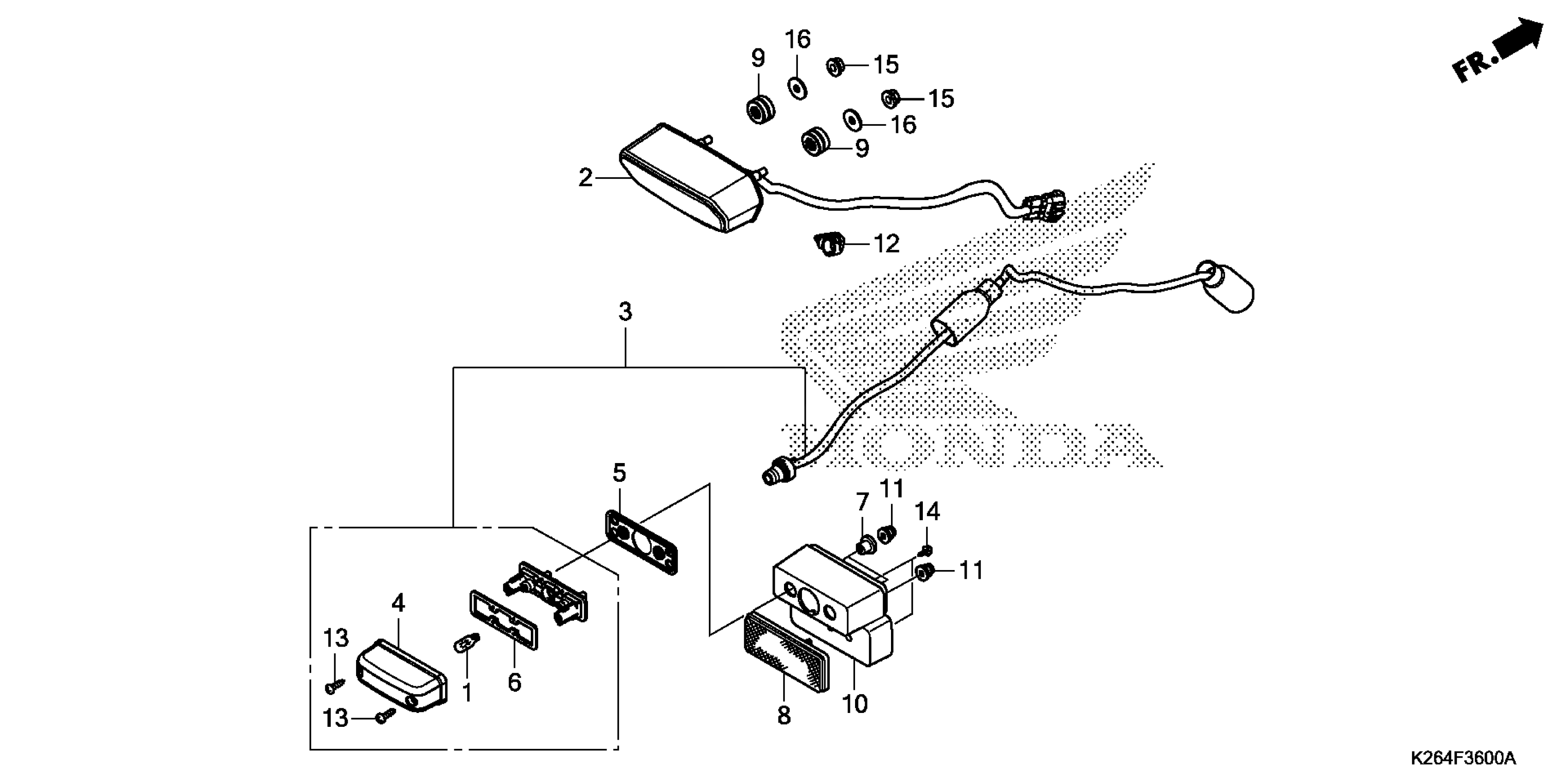

Honda GROM1252AC (15) MOTORCYCLE, THA, VIN# MLHJC611-F5100001 TAILLIGHT Diagram

BULB, POSITION (12V 5W) (STANLEY)

33301-K07-901

$3.01

TAILLIGHT UNIT (COO)

33701-K26-305

$141.35

LIGHT ASSY., LICENSE (12V 5W) (COO)

33720-K26-305

$67.66

COVER, LICENSE (COO)

33722-K26-305

$9.47

RUBBER, LICENSE LIGHT

33728-KPP-T00

$3.96

GASKET, LENS

33729-MCZ-003

$8.75

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

Unavailable

REFLECTOR, REFLEX

33741-KPL-902

$7.03

RUBBER, SEAT STAY MOUNTING

77209-K26-900

$1.50

BRACKET, LICENSE LIGHT

80201-KYJ-920

$7.84

NUT, U (5MM)

90301-KWN-901

$0.62

CLIP, WIRE HARNESS (25MM)

90683-SA0-003

$9.18

SCREW, TAPPING (4X16)

93901-24480

$0.82

SCREW, TAPPING (4X12)

93903-44380

$0.90

NUT, FLANGE (6MM)

94050-06000

$0.60

WASHER, PLAIN (6MM)

94103-06000

Unavailable
