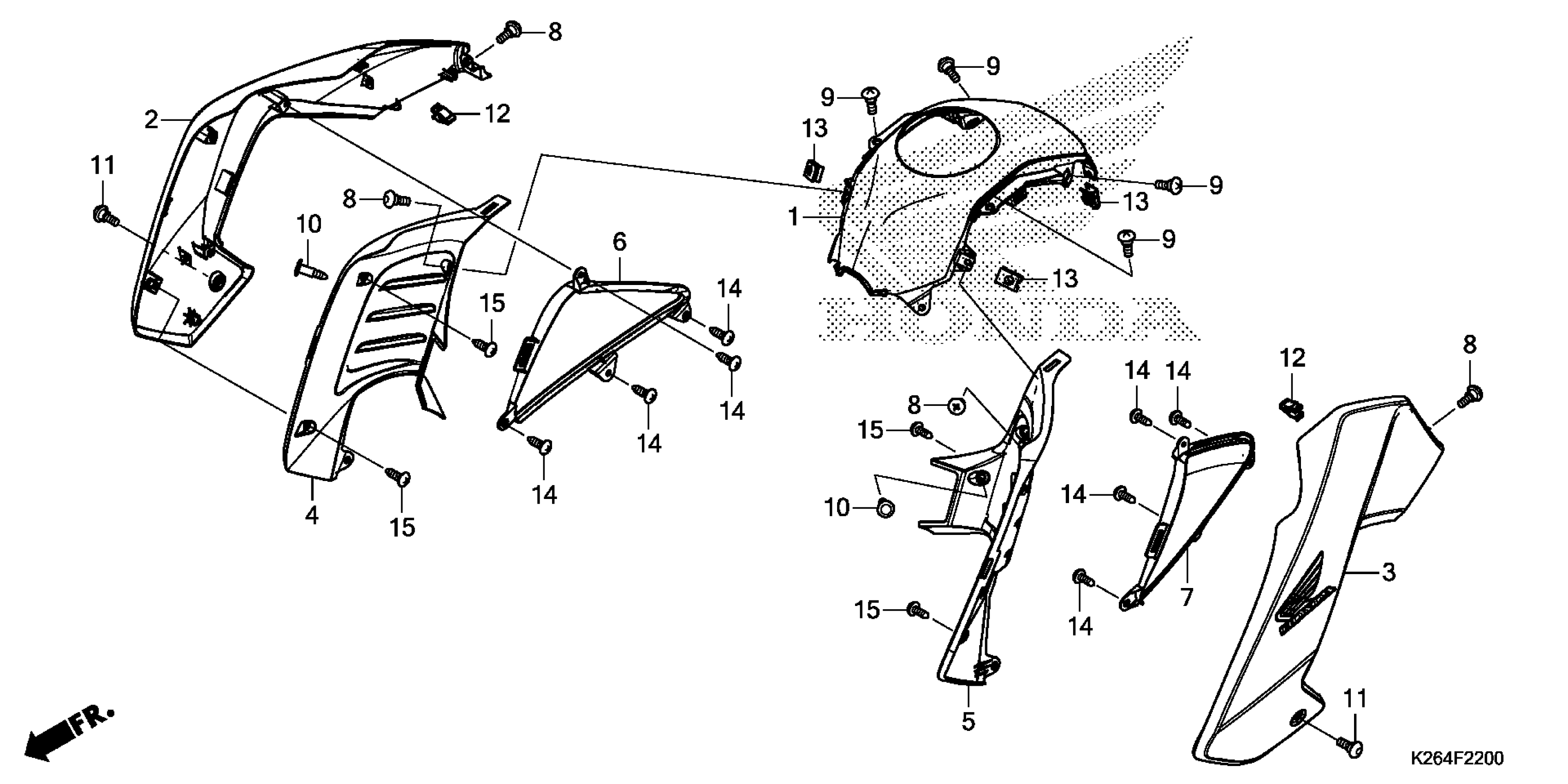

Honda GROM1252AC (15) MOTORCYCLE, THA, VIN# MLHJC611-F5100001 SHROUD Diagram

#

Description
Price

1

COVER, FUEL TANK

64450-K26-900

$7.51

2

SHROUD SET, R. (TYPE4) (WL)

83450-K26-A00ZA

$24.84

2

SHROUD SET, R. (TYPE3) (WL)

83450-K26-A00ZB

$24.49

2

SHROUD SET, R. (TYPE2) (WL)

83450-K26-A00ZC

$20.69

2

SHROUD SET, R. (TYPE1) (WL)

83450-K26-A00ZD

$20.69

3

SHROUD SET, L. (TYPE4) (WL)

83460-K26-A00ZA

$24.84

3

SHROUD SET, L. (TYPE3) (WL)

83460-K26-A00ZB

$24.49

3

SHROUD SET, L. (TYPE2) (WL)

83460-K26-A00ZC

$20.69

3

SHROUD SET, L. (TYPE1) (WL)

83460-K26-A00ZD

$20.69

4

SHROUD, R. (INNER)

83560-K26-900

$4.65

5

SHROUD, L. (INNER)

83570-K26-900

$4.65

6

COVER, R. SHROUD (UPPER)

83580-K26-900

$6.17

7

COVER, L. SHROUD (UPPER)

83590-K26-900

$6.17

8

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.01

9

SCREW, VISOR SPECIAL SETTING

90115-KWW-620

$0.90

10

RIVET, PUSH

90116-MCS-G00

$1.28

11

SCREW, PAN (5X14)

90134-KPP-T00

Unavailable

12

CLIP, SNAP FITTING

90601-SJA-003

$3.10

13

NUT, CLIP (5MM)

90677-KAN-T00

$0.59

14

SCREW, TAPPING (4X10)

93903-24210

$0.90

15

SCREW, TAPPING (4X10)

93903-24280

Unavailable
