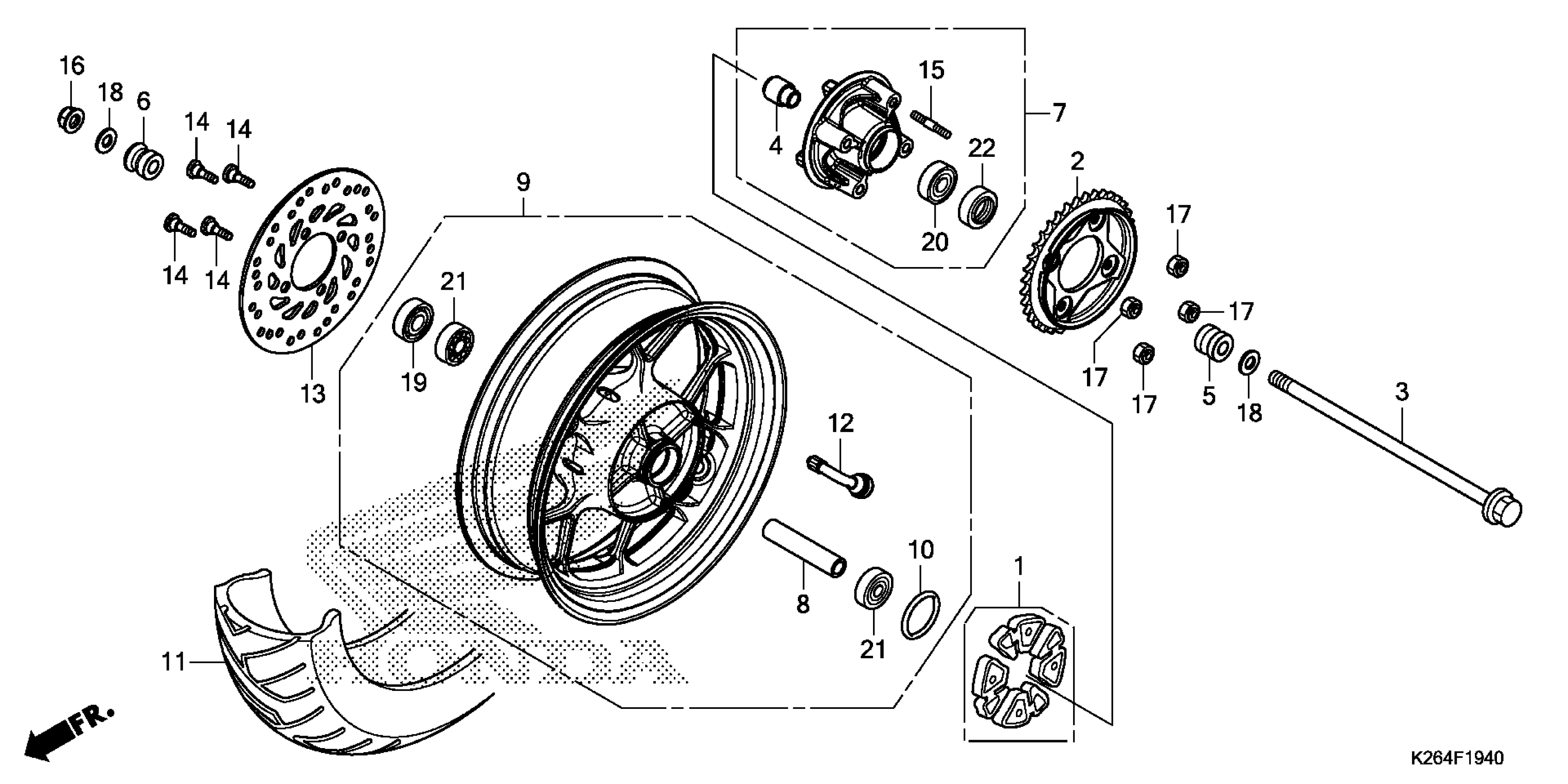

Honda GROM1252AC (15) MOTORCYCLE, THA, VIN# MLHJC611-F5100001 REAR WHEEL Diagram

DAMPER SET, WHEEL

06410-KWB-600

$9.72

SPROCKET, FINAL DRIVEN (34T)

41200-K26-901

$44.07

AXLE, RR. WHEEL

42301-K26-900

$7.56

SLEEVE, RR. WHEEL

42303-KWB-600

$2.92

COLLAR, L. RR. WHEEL SIDE

42311-K26-900

$12.71

COLLAR, R. RR. WHEEL SIDE

42312-K26-900

$14.32

FLANGE SUB-ASSY., FINAL DRIVEN

42615-K26-920

$88.16

COLLAR, RR. AXLE DISTANCE

42620-K26-900

$5.61

WHEEL SUB-ASSY., RR. (COO)

42650-K26-305

$406.79

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.39

TIRE,RR(VEE) This part replaces 42711-K26-901.

42711-K26-902

$78.26

TIRE,RR(VEE)

42711-K26-902

$78.26

VALVE, RIM (DUNLOP) (NOT AVAILABLE)

42753-KJ9-004

$16.69

DISK, RR. BRAKE

43251-K26-900

$36.37

BOLT, BRAKE DISK (8X24)

90105-KGH-900

$1.97

BOLT, STUD (8X18)

90128-KWB-600

$1.49

NUT, U (12MM) (FUJI SEIMITSU)

90306-KGH-901

$2.64

NUT, U (8MM) (FUJI SEIMITSU)

90309-KPH-971

$1.69

WASHER, RR. AXLE

90504-K26-900

$2.46

OIL SEAL (26X37X6) (ARAI)

90753-051-003

$7.66

BEARING, RADIAL BALL (6203) (NTN CORP.)

42630-GK4-003

$16.69

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91053-MV1-003.

42630-GK4-003

$16.69

BEARING, RADIAL BALL (6301U) (NTN)

91053-KWB-601

$10.63

DUST SEAL (27X40X4.5) (NOK)

91251-KGH-902

$1.49
