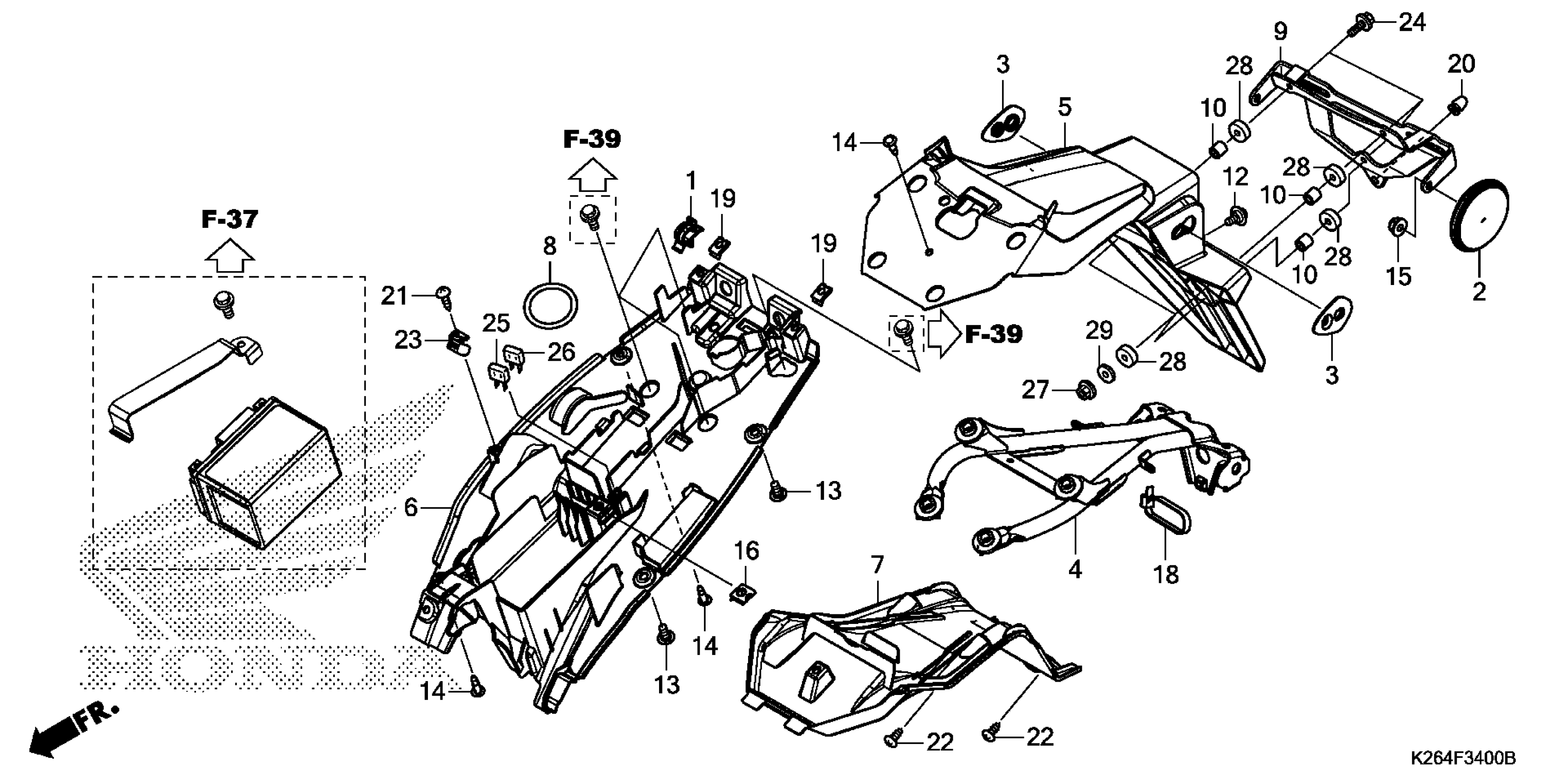

Honda GROM1252AC (15) MOTORCYCLE, THA, VIN# MLHJC611-F5100001 REAR FENDER Diagram

CLIP, WIRE HARNESS

32161-393-003

$2.80

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$11.90

PLATE, TURN SIGNAL (RR.)

33941-K26-950

$6.96

STAY, RR. FENDER

50188-K26-950

$95.94

FENDER SET A, RR. (TYPE1) (WL)

80100-K26-900ZB

$16.49

FENDER B, RR.

80101-K26-900

$12.33

FENDER, RR. (INNER)

80102-K26-900

$6.25

BAND, TOOL | (Optional).

80124-K26-900

$4.45

BRACKET, NUMBER PLATE

84701-K26-910

$50.68

COLLAR, NUMBER BRACKET

84702-K26-950

$0.80

BOLT, FLANGE (6MM)

90111-KZZ-900

$0.58

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$1.99

RIVET, PUSH

90116-MCS-G00

$1.26

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.26

NUT, SPRING (6MM)

90320-MM5-000

$2.58

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

PLUG, CONE TYPE

90899-422-610

$1.81

SCREW, TAPPING (4X12)

93903-24310

$0.83

SCREW, TAPPING (4X12)

93903-24380

Unavailable

CLIP, WIRE (2X78)

94591-27000

$2.80

BOLT, FLANGE (6X25)

95801-06025-07

$1.64

FUSE, MINI (10A)

98200-41000

$1.20

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.10

NUT, FLANGE (6MM)

94050-06000

$0.59

RUBBER, NUMBER BRACKET

84703-K26-950

$1.55

WASHER (6MM)

90485-286-000

$1.48
