Description

Price

1

KEY SET This part replaces 35010-K26-910.

35010-K26-911

$119.84

2

SWITCH ASSY., COMBINATION & LOCK

35100-K26-901

$80.35

3

STAY, COMBINATION SWITCH

35105-K26-900

$9.77

4

KEY, BLANK | (Optional).

35121-KEE-630

$13.02

5

HANDLEBAR (COO)

53100-K26-305

$27.64

6

WEIGHT A, HANDLE

53102-K26-900

$2.62

7

HOLDER, HANDLEBAR (UPPER) NH105 (MAT BLACK)

53131-K20-900ZC

$7.19

8

HOLDER, HANDLE (LOWER)

53132-K26-900

$21.33

9

RUBBER, HANDLE CUSHION

53133-K26-900

Unavailable

10

BRIDGE, FORK TOP

53300-K26-900

$67.35

11

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.37

12

BOLT, BREAK OFF

90107-KPP-860

$1.73

13

BOLT, FLANGE SOCKET (8X32)

90160-K26-900

Unavailable

14

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.64

15

SCREW, OVAL (6X45)

90191-KWB-600

$0.74

16

NUT, U (8MM)

90304-KPG-901

$0.88

17

NUT, STEERING STEM

90305-KGH-900

$4.13

18

WASHER, STEERING STEM

90503-KGA-900

$1.36

19

WASHER, HANDLE HOLDER (LOWER)

90535-K26-900

$2.36

20

CAP, SOCKET BOLT

91456-371-770

$3.22

21

BOLT, SOCKET (8X35)

96700-08035-00

$1.41

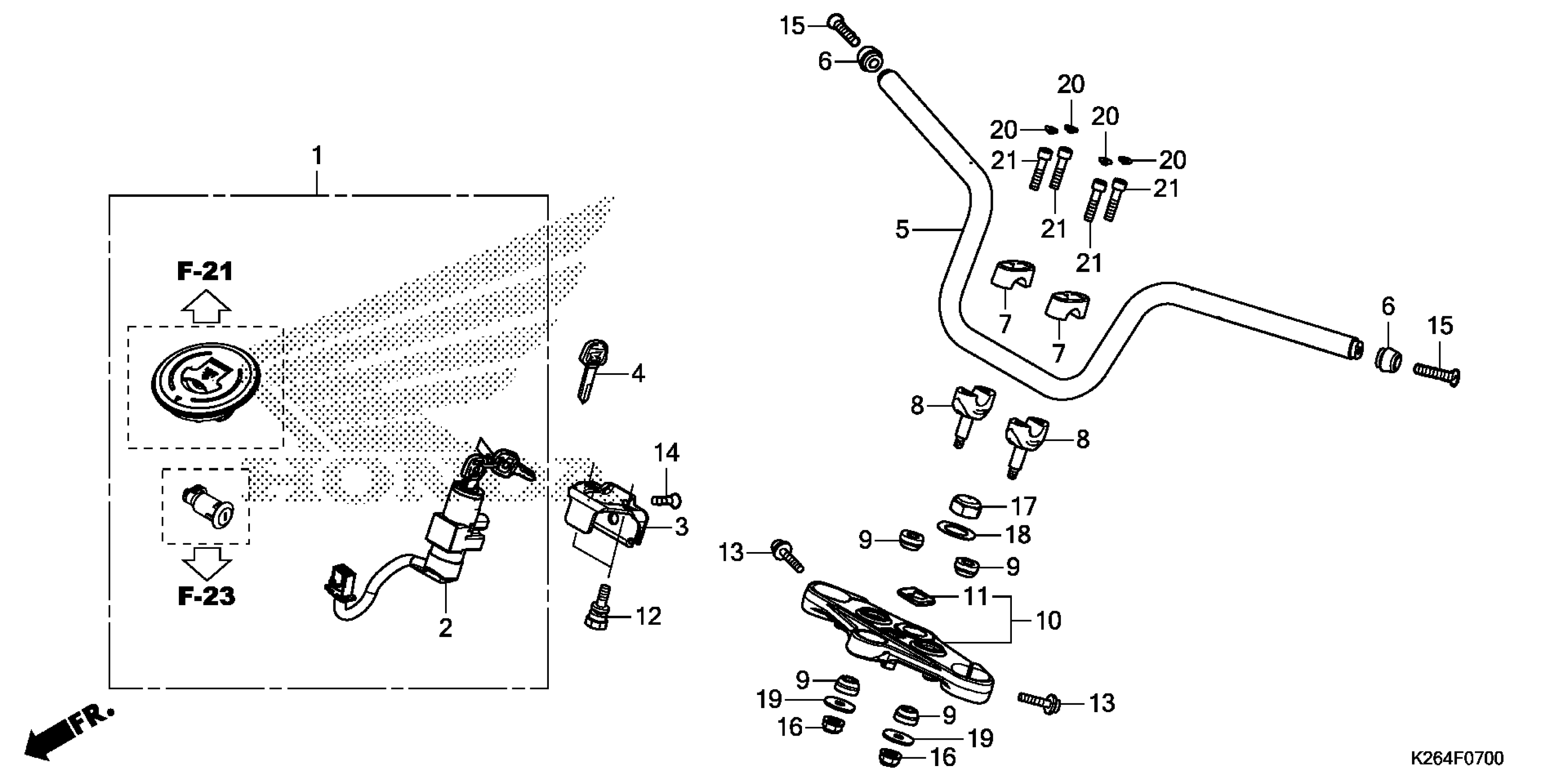

Honda GROM1252AC (15) MOTORCYCLE, THA, VIN# MLHJC611-F5100001 HANDLEBAR Diagram
