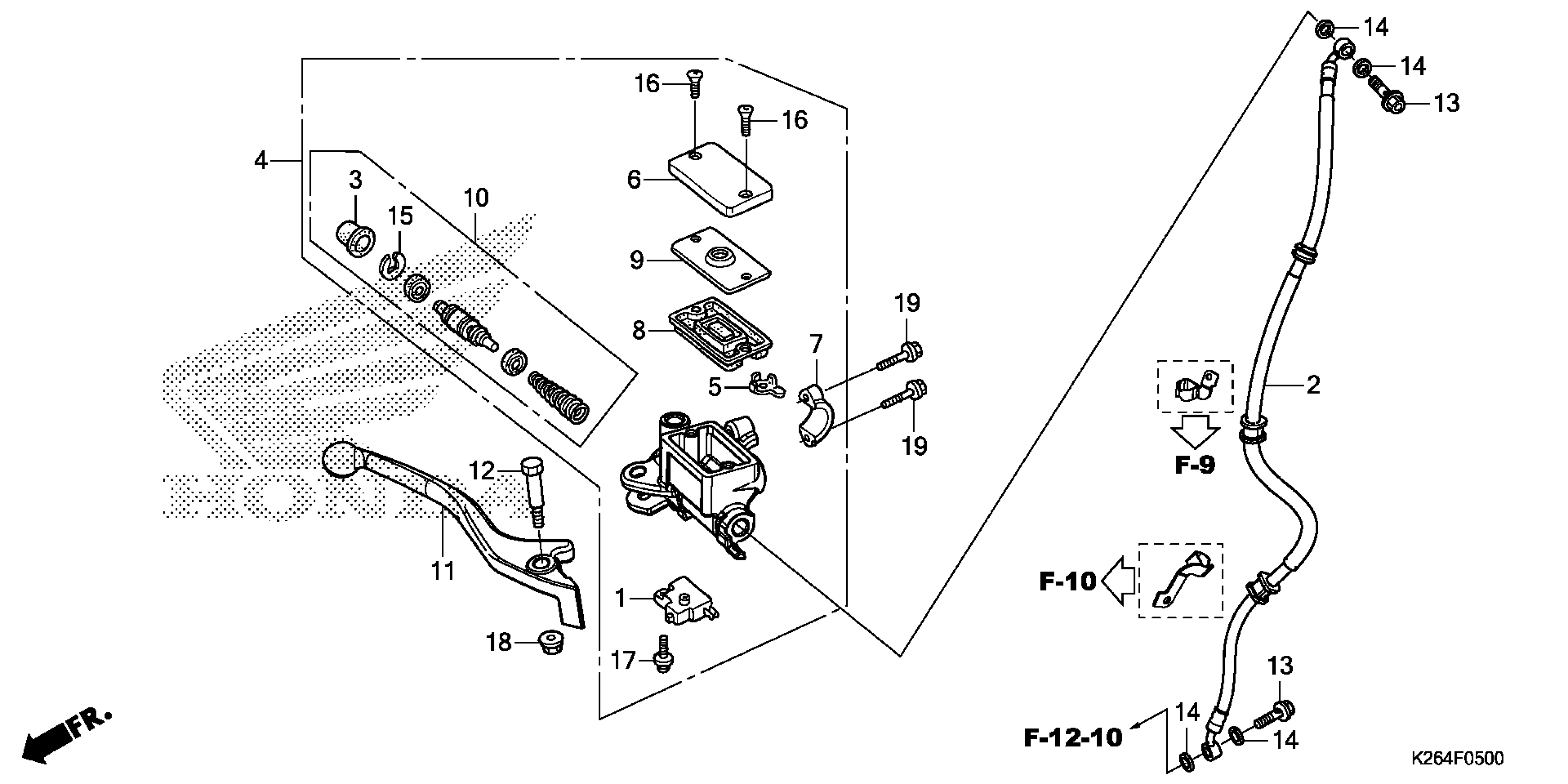

Honda GROM1252AC (15) MOTORCYCLE, THA, VIN# MLHJC611-F5100001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.62

HOSE, FR. BRAKE

45125-K26-921

$24.43

BOOT

45504-410-003

$10.93

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-K26-305

$98.23

PROTECTOR

45512-MA6-006

$3.99

CAP, MASTER CYLINDER

45513-HA2-006

$24.74

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

DIAPHRAGM

45520-GE2-006

$8.35

PLATE, DIAPHRAGM

45521-K21-901

$2.07

MASTER CYLINDER SET

45530-471-831

Unavailable

LEVER, R. HANDLEBAR (COO)

53175-K26-305

Unavailable

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$0.88

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, FLANGE (6MM)

94050-06000

$0.59

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
