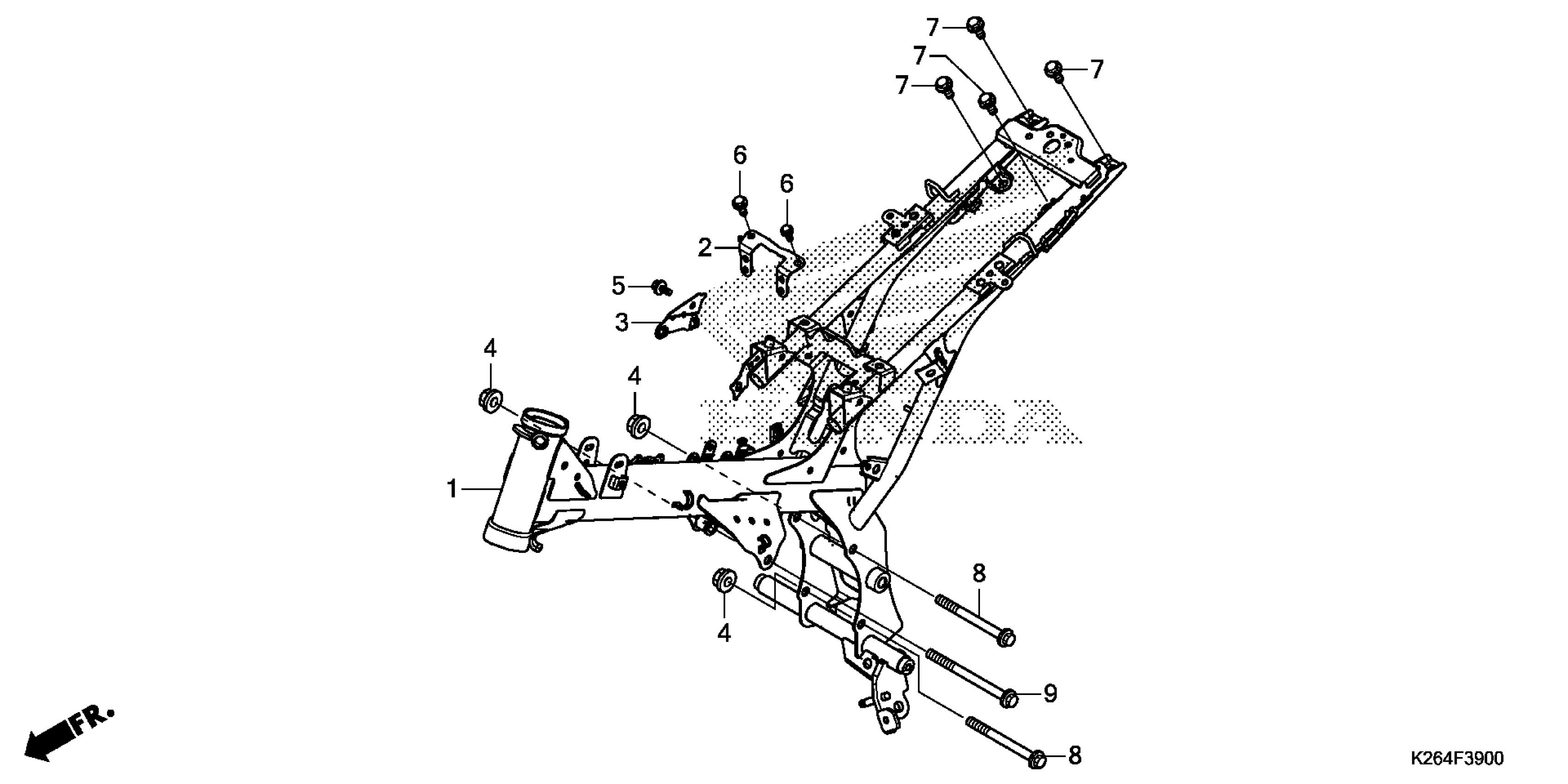

Honda GROM1252AC (15) MOTORCYCLE, THA, VIN# MLHJC611-F5100001 FRAME Diagram

#

Description
Price

1

FRAME

50100-K26-910

$556.80

2

BRACKET, BANK ANGLE SENSOR

50180-K26-900

$1.71

3

BRACKET, REGULATOR

50235-K26-950

$4.03

4

NUT, FLANGE (10MM)

94050-10080

$2.93

5

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.14

6

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

7

BOLT, FLANGE (8X14)

95701-08014-00

$1.19

8

BOLT, FLANGE (10X110)

95801-10110-08

$4.58

9

BOLT, FLANGE (10X130)

95801-10130-08

$2.16
