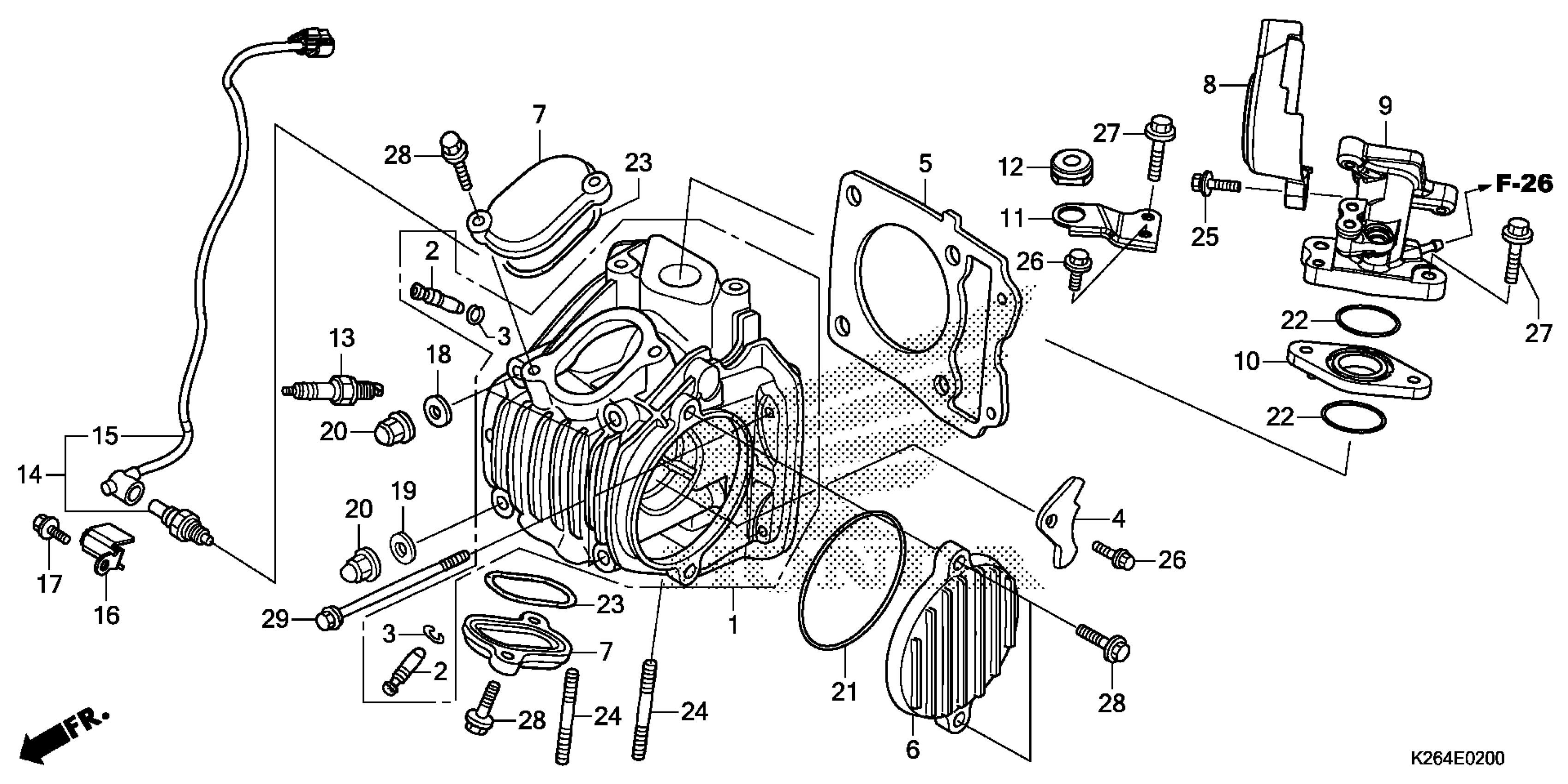

Honda GROM1252AC (15) MOTORCYCLE, THA, VIN# MLHJC611-F5100001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD This part replaces 12200-K26-901.

12200-K26-902

$82.99

1

CYLINDER HEAD

12200-K26-902

$82.99

2

GUIDE, VALVE (OVER SIZE)

12204-KYZ-P00

$18.66

3

CLIP, VALVE GUIDE

12206-KPL-900

$3.16

4

PLATE, STOPPER

12211-KPH-900

$0.90

5

GASKET, CYLINDER HEAD

12251-KYZ-901

$4.43

6

COVER, L. CYLINDER HEAD SIDE

12341-K26-900

$35.85

7

COVER, TAPPET ADJUSTING HOLE

12361-K26-900

$23.32

8

COVER, THROTTLE

16157-K26-900

$2.38

9

PIPE, INLET

17110-K26-910

$98.62

10

INSULATOR, IN. PIPE

17119-K26-900

$7.87

11

STAY, AIR CLEANER

17120-K26-900

$2.71

12

RUBBER, AIR CLEANER MOUNTING

17130-K26-900

$4.47

13

SPARK PLUG (CPR6EA-9) (NGK)

31916-KPH-901

$9.36

13

SPARK PLUG (CPR7EA-9) (NGK) | (Optional).

31917-KPH-901

$4.01

13

SPARK PLUG (U20EPR9) (DENSO)

31926-KPH-901

$4.10

13

SPARK PLUG (U22EPR9) (DENSO) | (Optional).

31927-KPH-901

$4.01

14

SENSOR, OXYGEN

36532-K26-901

$100.94

15

WIRE, OXYGEN SENSOR

36533-K26-901

$48.40

16

GUARD, OXYGEN SENSOR

36535-K26-900

$1.79

17

BOLT, FLANGE (6X14) (NSHF)

90004-GHB-620

$3.26

18

WASHER, SEALING (8MM)

90441-286-000

$1.75

19

WASHER, SEALING (8MM)

90441-ME9-000

$2.41

20

NUT, CAP (8MM)

90443-KTM-970

$0.71

21

O-RING (74.5X2.5) (NOK)

91301-PH8-005

$9.44

22

O-RING (29X2.4)

91304-KPH-700

$1.57

23

O-RING, TAPPET ADJUSTING HOLE CAP

91372-KPH-900

Unavailable

24

BOLT 2, STUD (8X28)

92900-08028-0E

$2.16

25

BOLT-WASHER (5X25)

93414-05025-08

$0.85

26

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.03

27

BOLT, FLANGE (6X30)

95701-06030-00

$1.88

28

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

29

BOLT, FLANGE (6X90)

96001-06090-00

$1.81
