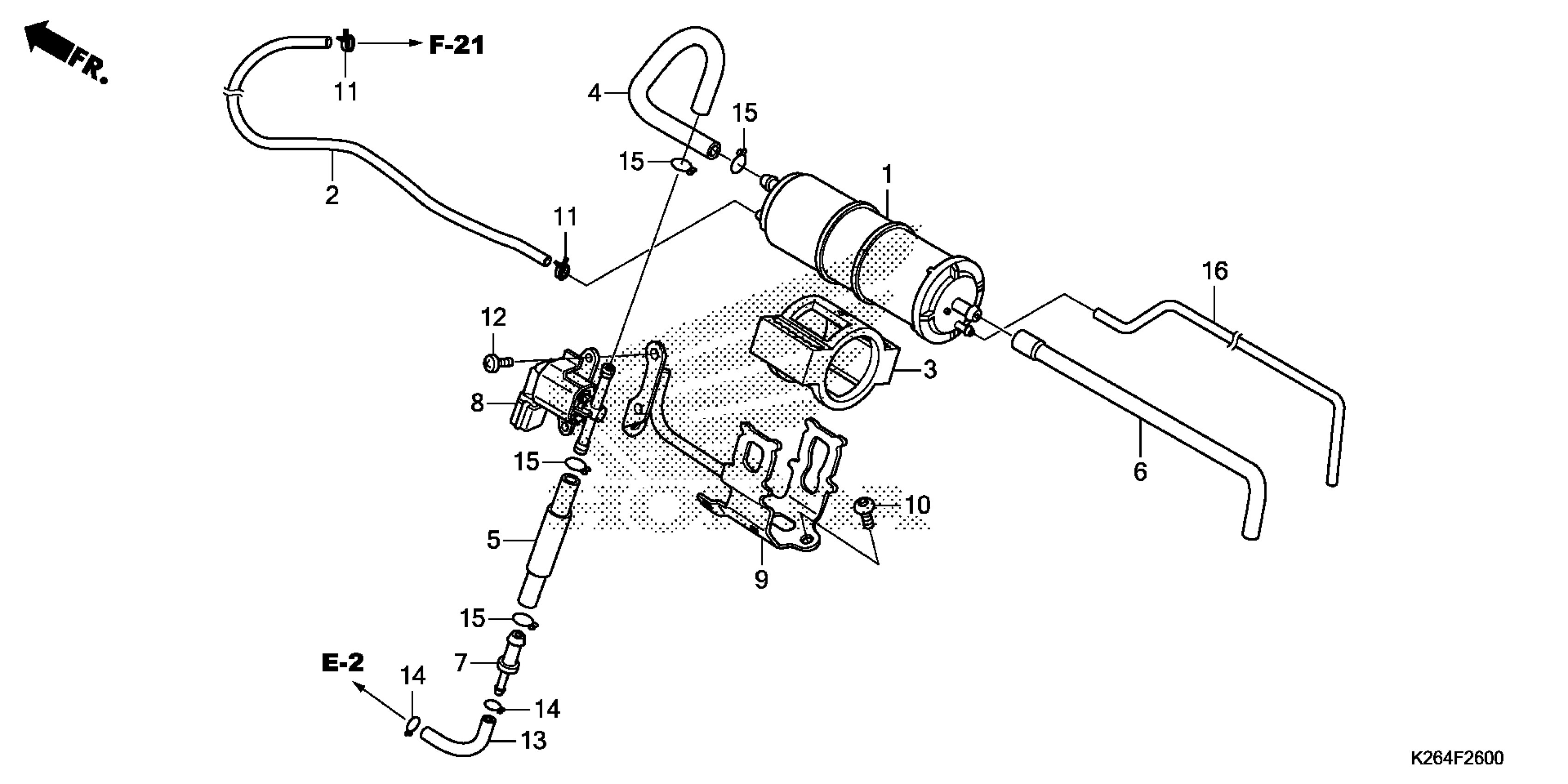

Honda GROM1252AC (15) MOTORCYCLE, THA, VIN# MLHJC611-F5100001 CANISTER Diagram

CANISTER

17410-GFM-K01

$56.57

TUBE, CHARGE

17411-K26-910

$31.26

RUBBER, CANISTER MOUNT

17411-KVR-C00

$19.24

TUBE A, PURGE

17414-K26-910

$4.75

TUBE B, PURGE

17415-K26-910

$4.53

TUBE, AIR

17416-K26-910

$5.41

JOINT, TUBE

19126-KM1-010

$3.50

VALVE, PURGE CONTROL SOLENOID

36162-KZL-931

$53.46

BRACKET, CANISTER

50185-K26-910

$28.93

SCREW, PAN (6X12)

90106-MAV-000

$2.01

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.34

SCREW, PAN (5X10)

93500-05010-0H

Unavailable

BULK HOSE, FUEL (3.5X3000) (95001-3500(95001-35001-60M)

95001-35003-60M

$23.63

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.62

CLIP, TUBE (B12.5)

95002-02130

$1.06

BULK HOSE, VACUUM (4.5X1000) (4.5X160) (BULK HOSE: (95005-45008-10M)

95005-45001-10M

Unavailable
