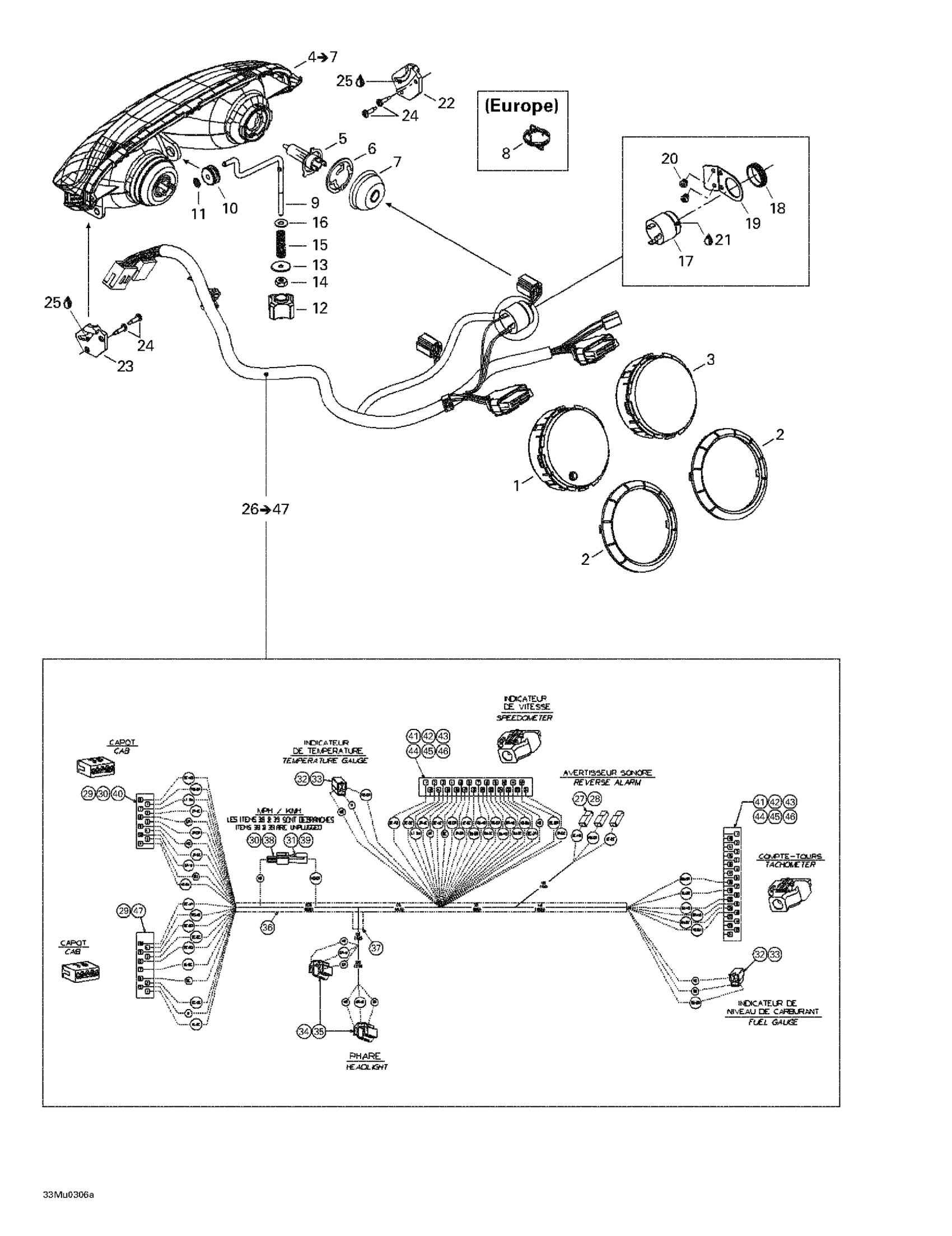

Ski-Doo Grand Touring V-1000, 2003 10- Hood Harness Diagram

#

Description
Price

1

Speedometer

515175828

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

Tachometer

515175943

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

9

Adjuster Rod

515175920

Unavailable

10

Grommet - Call your local BRP dealership

415100800

Unavailable

11

Push Nut

732610072

$2.19

12

Handle - Call your local BRP dealership

515175548

Unavailable

13

Washer

224060251

$0.58

14

Elastic Stop Nut M6

232561414

$0.55

15

SPRING - Call your local BRP dealership

415100600

Unavailable

16

Flat Washer 6 mm

234061410

$1.36

17

HORN - Call your local BRP dealership

515176035

Unavailable

18

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

19

PLATE - Call your local BRP dealership

515175688

Unavailable

20

Pop Rivet 3/16"

390402200

$0.35

21

Silicone Sealant 51388, 300 ml

296000309

$36.99

22

RH Support

517289300

Unavailable

23

LH Support

517289400

Unavailable

24

Headlamp Screw

732601315

Unavailable

25

Grease Tube Lmz, 400 G

413707500

Unavailable

26

Hood Harness | Includes 41 - 62.

515175614

Unavailable

27

Female Terminal

409010100

$5.61

28

Female Terminal Housing, 1 Circuit

409010400

$7.62

29

Male Terminal

515175232

$1.58

30

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

31

Female Terminal

515175282

$7.86

32

Female Terminal

561503100

$2.41

33

Female Housing

409204300

Unavailable

34

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

35

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

36

Tubing 16 Mm 1000Mm Long

219704408

$7.49

37

Tubing 10 MM 1000MM Long

219704407

$2.79

38

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

39

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

40

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

41

Plug

515175812

$2.19

42

Female Housing, 24 Circuits

515175801

$9.59

43

Retainer Block

515175802

$11.49

44

Wire Seal

515175803

$2.99

45

BLOCK - Call your local BRP dealership

515175804

Unavailable

46

Female Terminal

515175806

$0.99

47

Male Terminal Housing, 10 Circuits

415128526

Unavailable
