Description

Price

1

Visor Plug Harness | Includes items 17 to 22

515175964

Unavailable

2

Male Terminal

515175232

$1.58

3

Tape

293740005

Unavailable

4

Male Terminal Housing, 2 Circuits

515175654

$9.12

5

EXTENSION - Call your local BRP dealership

515175971

Unavailable

6

Cap

572103300

$10.49

7

Washer

503175800

$3.28

8

Safety Nut (DESS Switch)

278002963

$3.28

9

DESS

515178284

$84.99

10

Dess Switch | Includes items 29 to 30

515175913

Unavailable

11

Male Terminal

515175232

$1.58

12

Starter Switch

515175966

Unavailable

13

Male Terminal

515175232

$1.58

14

Console Harness | Includes 14 - 22.

515175965

Unavailable

15

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

16

Female Terminal Housing, 1 Circuit

409010400

$7.62

17

Male Terminal

515175232

$1.58

18

Female Terminal

515175231

$4.39

19

Tape

293740005

Unavailable

20

Male Terminal Housing, 2 Circuits

515175654

$9.12

21e

Female Housing, 2 Circuits

515175658

$16.18

22

Male Terminal Housing, 6 Circuits

515175662

$8.79

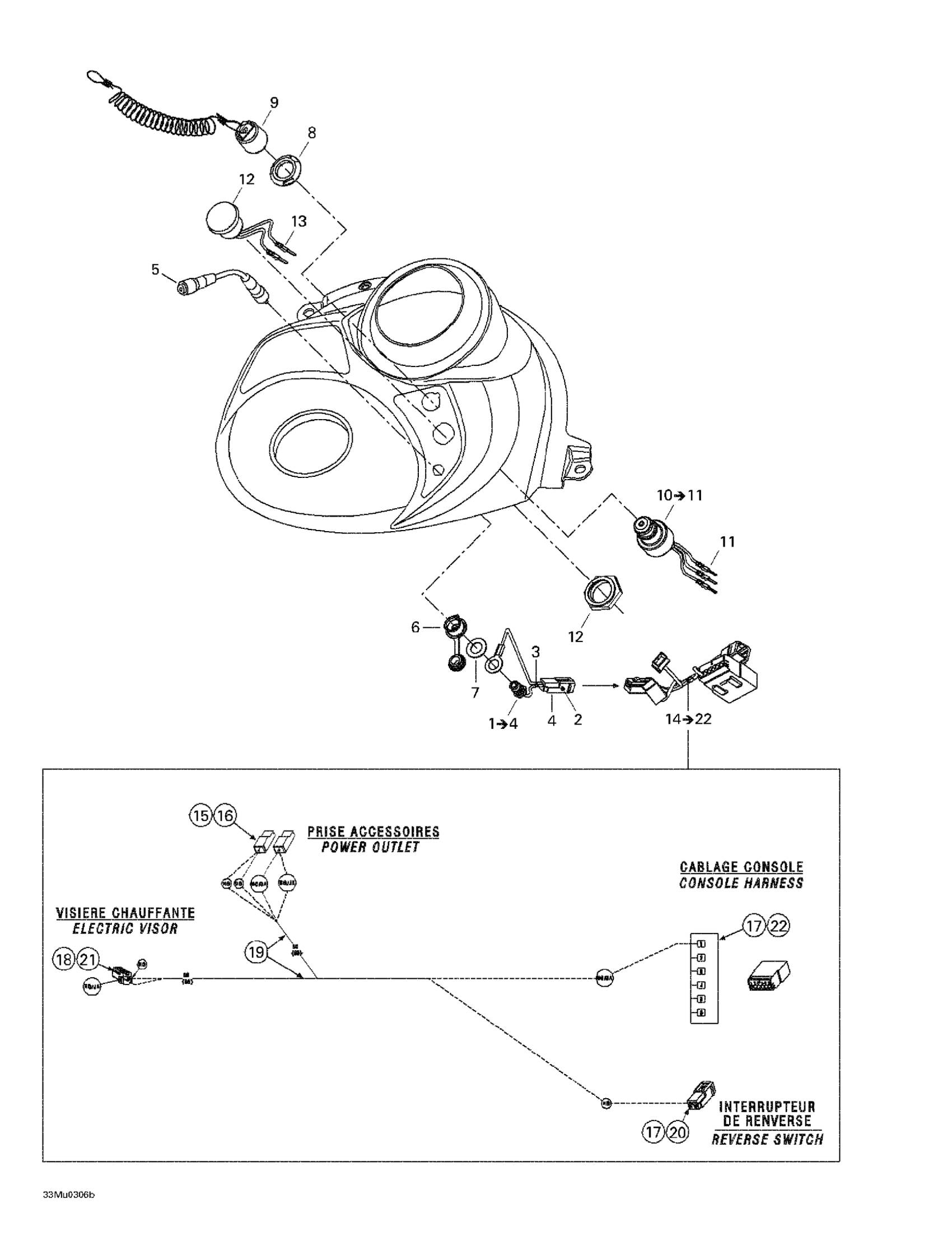

Ski-Doo Grand Touring V-1000, 2003 10- Console Harness Diagram

Visor Plug Harness | Includes items 17 to 22

Male Terminal

Tape

Male Terminal Housing, 2 Circuits

EXTENSION - Call your local BRP dealership

Cap

Washer

Safety Nut (DESS Switch)

DESS

Dess Switch | Includes items 29 to 30

Male Terminal

Starter Switch

Male Terminal

Console Harness | Includes 14 - 22.

FEMALE TERMINAL - Call your local BRP dealership

Female Terminal Housing, 1 Circuit

Male Terminal

Female Terminal

Tape

Male Terminal Housing, 2 Circuits

Female Housing, 2 Circuits

Male Terminal Housing, 6 Circuits
