Description

Price

1

Seat Base

510003983

Unavailable

2

Seat Cover, 2 Tones | Legend SE 800 SDI.

510004065

Unavailable

3

SEAT FOAM - Call your local BRP dealership

510003944

Unavailable

4

Rear Seat Foam

510003945

Unavailable

5

Seat Foam | Legend SE 800 SDI.

510004032

Unavailable

6

UNDER CHEST - Call your local BRP dealership

572107601

Unavailable

7

Hex. Screw #10 X 1"

732603006

Unavailable

8

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

9

Bulb

520000758

$9.10

10

Lens

414513700

$28.99

11

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

12

Washer - Call your local BRP dealership

414516400

Unavailable

13

Male Terminal

515175232

$1.58

14

Male Housing, 3 Circuits

515175494

$16.18

15

Female Terminal

561503100

$2.41

16

Female Terminal Housing, 3 Circuits

515175250

Unavailable

17

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

18

Flat Washer 8 mm

234082410

$1.47

19

Hex. Elastic Stop Nut M8

232581414

$0.56

20

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

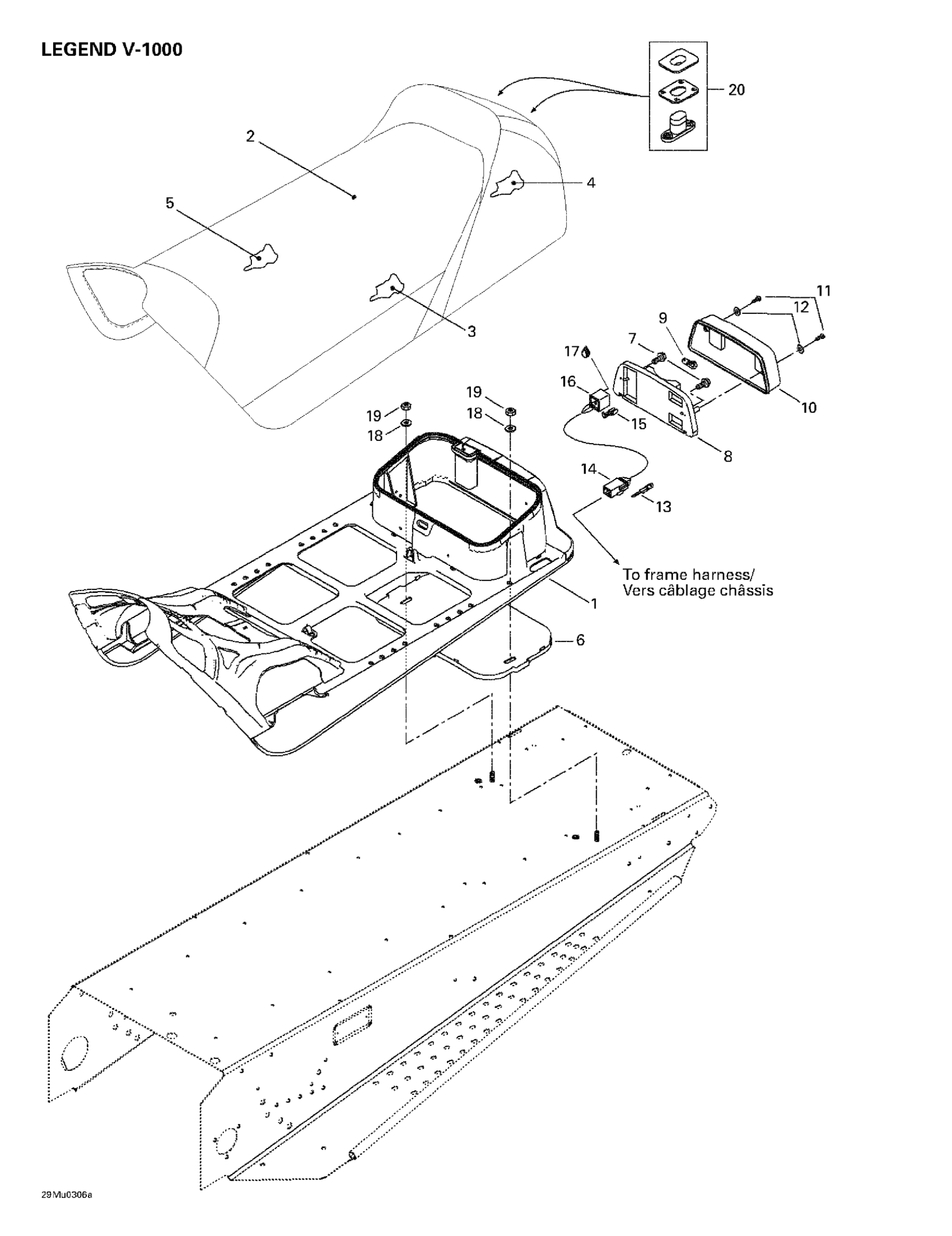

Ski-Doo Grand Touring V-1000, 2003 09- Seat (Legend V-1000) Diagram

Seat Base

Seat Cover, 2 Tones | Legend SE 800 SDI.

SEAT FOAM - Call your local BRP dealership

Rear Seat Foam

Seat Foam | Legend SE 800 SDI.

UNDER CHEST - Call your local BRP dealership

Hex. Screw #10 X 1"

LIGHT HOUSING - Call your local BRP dealership

Bulb

Lens

Phillips Tapping Screw M3.9 X 25

Washer - Call your local BRP dealership

Male Terminal

Male Housing, 3 Circuits

Female Terminal

Female Terminal Housing, 3 Circuits

Was 293550004 Dielectric Grease, 150 g

Flat Washer 8 mm

Hex. Elastic Stop Nut M8

SEAT BUCKLE - Call your local BRP dealership
