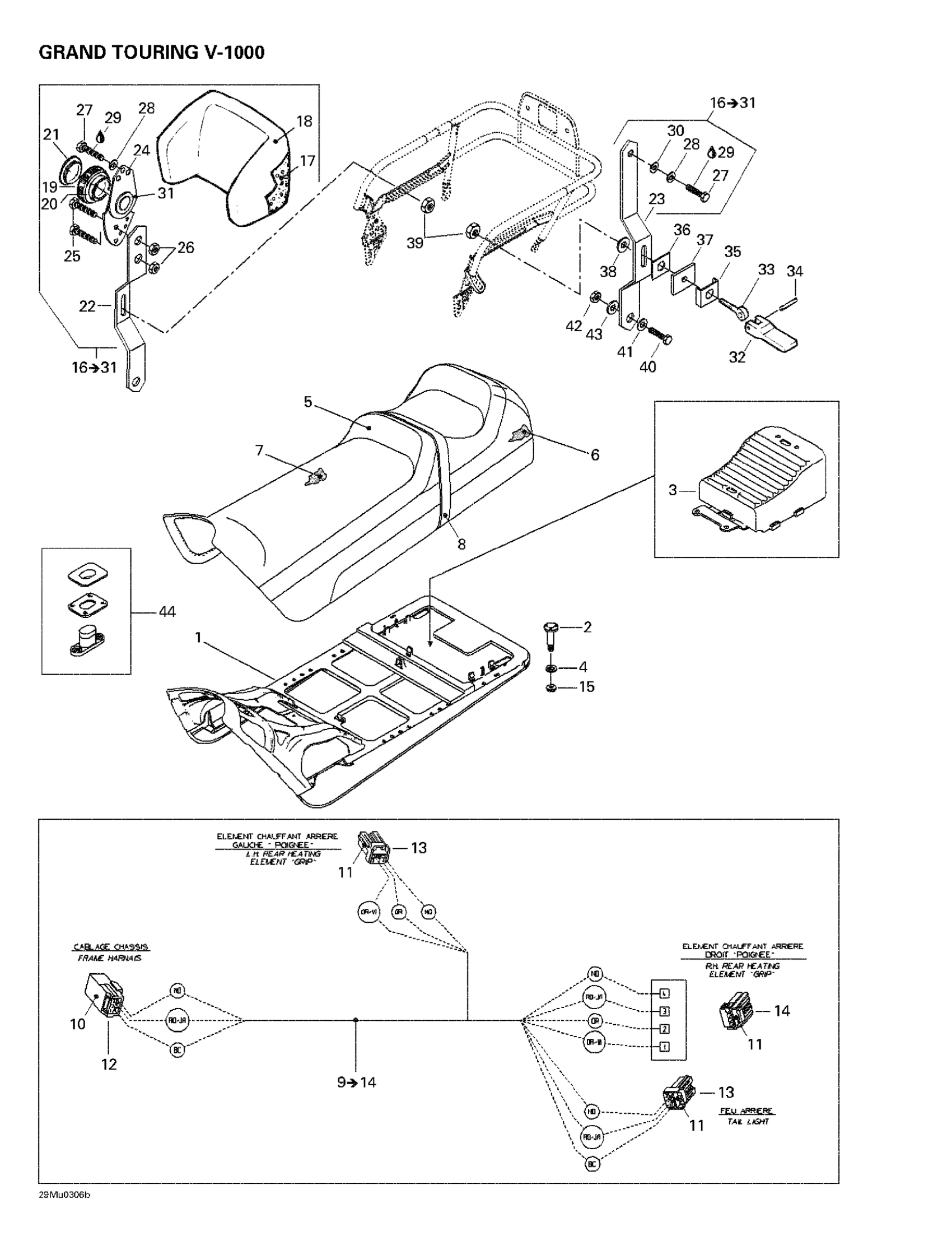

Ski-Doo Grand Touring V-1000, 2003 09- Seat, Backrest (Grand Touring V-1000) Diagram

#

Description
Price

1

Sub-Seat

510003739

Unavailable

2

«T» Bolt

732601221

Unavailable

3

Rear Trunk

510003751

Unavailable

4

Push Nut

732610072

$2.19

5

Seat Cover, Black | Sport / SE (B-160)

510004086

Unavailable

6

Seat Foam, Side

510003741

Unavailable

7

Seat Foam, Top

510003752

Unavailable

8

Seat Belt

510003753

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Male Terminal

515175232

$1.58

11

Female Terminal

515175231

$4.39

12

Male Housing, 3 Circuits

515175494

$16.18

13

Female Housing, 3 Circuits

515175495

$16.18

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Backrest Ass’Y | Includes 16 to 31

510004093

Unavailable

17

Backrest Foam

414821200

Unavailable

18

Backrest Cover

510004094

Unavailable

19

TILLER HANDLE - Call your local BRP dealership

414820900

Unavailable

20

STRIP - Call your local BRP dealership

415015500

Unavailable

21

Cap

414821000

Unavailable

22

RH Arm

517296400

Unavailable

23

LH Arm

517296500

Unavailable

24

Recliner

414813300

Unavailable

25

Hex. Screw M8 X 25

207182544

$0.90

26

Hex. Elastic Stop Nut M8

232581414

$0.56

27

Hex. Screw M8 X 20

207182044

$0.74

28

Lock Washer 8 mm

234181401

$0.92

29

Loctite 243, 10 ml

293800060

$21.49

30

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

31

Cap

517250500

Unavailable

32

Lock Lever

572038200

Unavailable

33

EYE BOLT - Call your local BRP dealership

517250100

Unavailable

34

Pin

414821400

$7.55

35

Guide

517257300

Unavailable

36

SPACER - Call your local BRP dealership

517251300

Unavailable

37

Rubber Shim

570027400

Unavailable

38

Washer

414819500

Unavailable

39

Nut

517250000

Unavailable

40

Hex. Screw M8 X 25

207182584

Unavailable

41

Stainless Steel Flat Washer 8 mm

234081670

$0.67

42

Hex. Elastic Stop Nut M8

232581414

$0.56

43

Washer

414819600

Unavailable

44

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable
