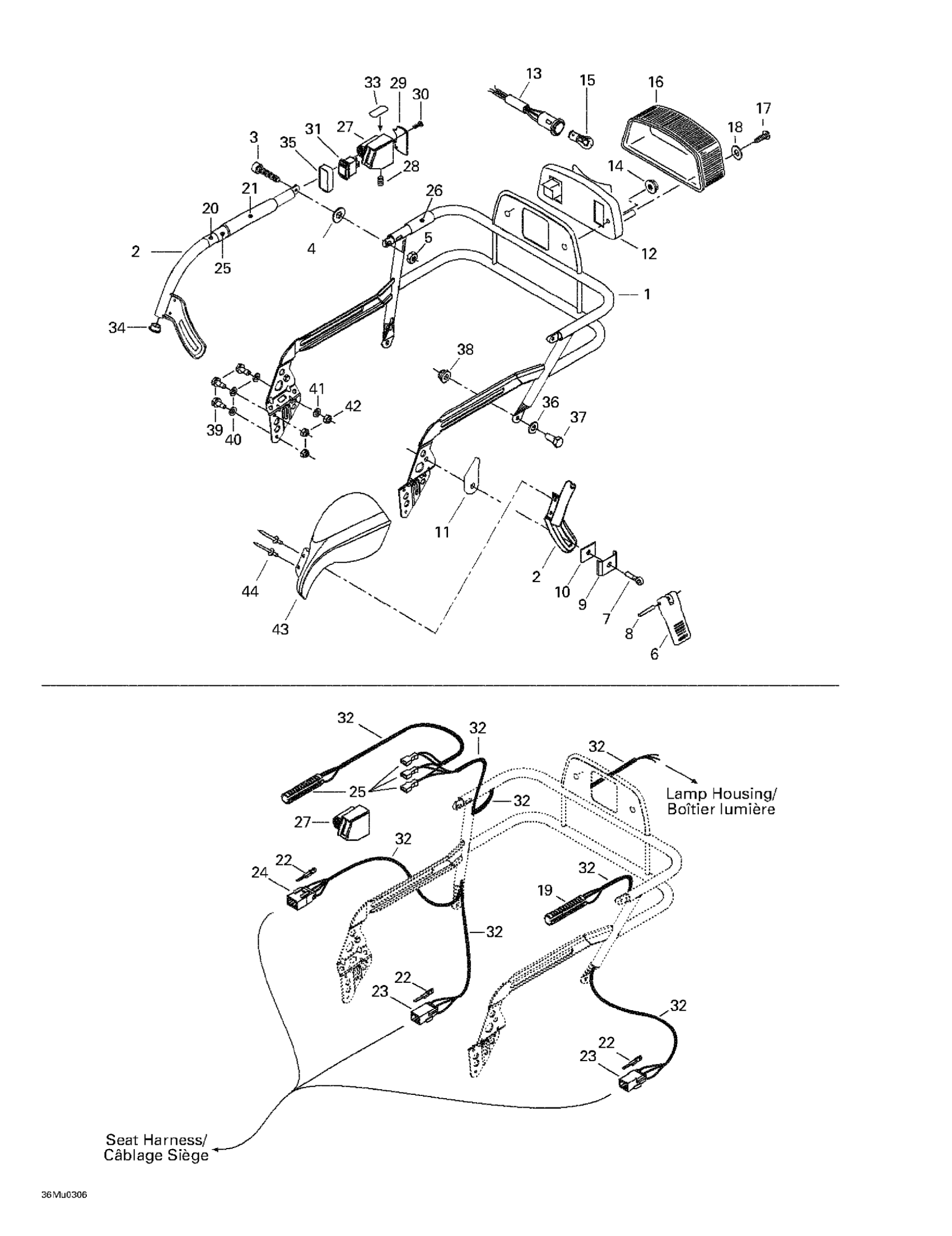

Ski-Doo Grand Touring V-1000, 2003 09- Luggage Rack (Grand Touring V-1000) Diagram

#

Description
Price

1

Rack Ass’Y

511000124

Unavailable

2

RH Arm, Rack

511000012

Unavailable

LH Am, Rack

517300900

Unavailable

3

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

4

Flat Washer 6 mm

234062100

$1.26

5

Elastic Stop Nut M6

232561414

$0.55

6

Lock Lever

572038200

Unavailable

7

EYE BOLT - Call your local BRP dealership

517250100

Unavailable

8

Pin

414821400

$7.55

9

Guide

511000226

Unavailable

10

Outer Spacer

570063800

Unavailable

11

Spacer Block

572088900

Unavailable

12

LAMP HOUSING - Call your local BRP dealership

515175397

Unavailable

13

Socket

511000224

Unavailable

14

Hex. Flange Elastic Nut M5

233251414

$1.04

15

Bulb

520000758

$9.10

16

Lens

414513700

$28.99

17

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

18

Washer - Call your local BRP dealership

414516400

Unavailable

19

Heater

515175710

Unavailable

20

Reflective Sheet

414988700

Unavailable

21

LH Grip, 370 mm

415050200

Unavailable

RH Grip, 250 mm

415050300

Unavailable

22

Male Terminal

515175232

$1.58

23

Male Housing, 3 Circuits

515175494

$16.18

24

Male Terminal Housing, 4 Circuits

515175846

$8.79

25

Heater With Terminals

515175882

Unavailable

26

Grip, Short, 60 mm

415050400

Unavailable

27

Switch Housing

572089200

Unavailable

28

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

29

Plate

572089300

Unavailable

30

Screw

732601255

Unavailable

31

Rocker Switch

511000001

Unavailable

32

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

33

HEAT GRIP DECAL - Call your local BRP dealership

418001800

Unavailable

34

CAP, BLACK - Call your local BRP dealership

572110800

Unavailable

35

Switch Protector

511000002

Unavailable

36

Flat Washer 8 mm

234081410

$0.83

37

Hex. Screw M8 X 20

207182044

$0.74

38

Hex. Flange Elastic Nut M8

233281414

$1.47

39

Hex. Flange Screw M6 X 16

210261650

$1.67

40

Lock Washer Helical M6

234161601

$1.15

41

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

42

Elastic Stop Nut M6

232561414

$0.55

43

RH Protector

572089400

Unavailable

LH Protector

572089500

Unavailable

44

Pop Rivet 3/16”

293150108

$1.19
