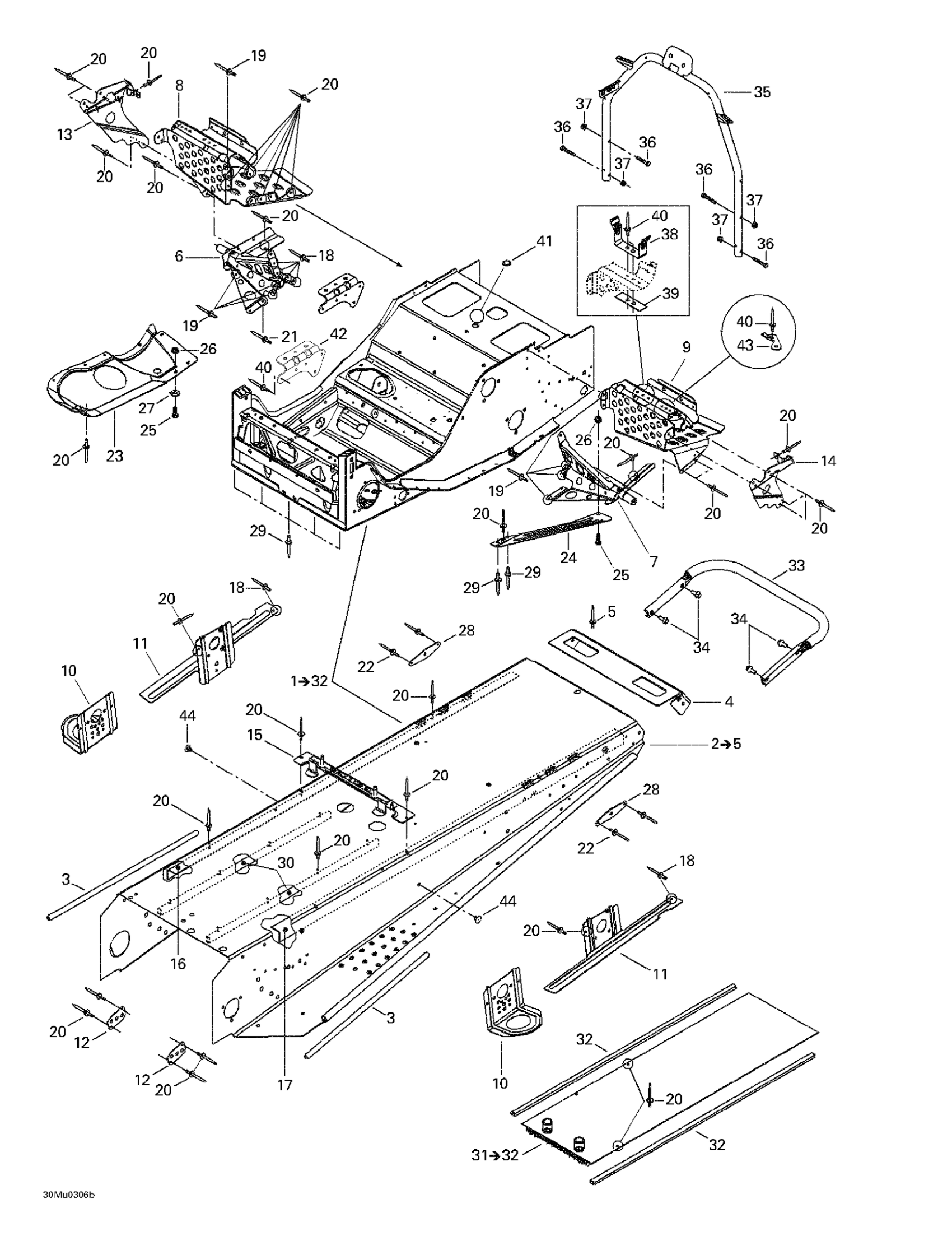

Ski-Doo Grand Touring V-1000, 2003 09- Frame And Accessories 2 Diagram

#

Description
Price

1

Frame | Includes 1 to 33

415128576

Unavailable

2

Forming Frame | Includes 2 to 5

415128615

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Rear Cap

518322734

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

RH Footrest Support

518320506

Unavailable

7

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

8

RH Footrest

518323563

Unavailable

9

LH FOOTREST - Call your local BRP dealership

518323564

Unavailable

10

Front Bracket

518321495

Unavailable

11

RH Rear Bracket

518323051

Unavailable

LH Rear Bracket

518323055

Unavailable

12

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

13

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

14

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

15

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

16

RH Frame Reinforcement

518323190

Unavailable

17

LH Frame Reinforcement

518323191

Unavailable

18

Avex Rivet

390909200

$0.30

19

Avex Rivet

390909100

$0.30

20

Pop Rivet 3/16"

390402200

$0.35

21

Pop Rivet 3/16"

390402300

$0.75

22

Pop Rivet 3/16"

390402400

$0.35

23

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

Unavailable

24

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

25

Hex. Screw M5 X 20

207152044

$0.90

26

Hex. Flange Elastic Nut M5

233251414

$1.04

27

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

28

Rear Reinforcement

518316767

Unavailable

29

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

30

Frame Protector

518321543

Unavailable

31

Rear Radiator | Includes 15 - 16. Grand Touring 500.

518322905

Unavailable

32

Radiator Protector | Grand Touring 500.

518321656

Unavailable

33

Rear Bumper | Includes 32 to 33

517272510

Unavailable

34

Hex. Flange Screw M8 X 20

207682044

$1.15

35

Handle Support

518322755

Unavailable

36

Hex. Flange Screw M6 X 35

207663544

$0.90

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

Belt Guard Bracket

518202100

$17.49

39

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

40

Pop Rivet 3/16"

390402200

$0.35

41

CAP - Call your local BRP dealership

414859400

Unavailable

42

Muffler Support

518322635

Unavailable

43

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

44

Panel Fastener

518321954

$7.69
