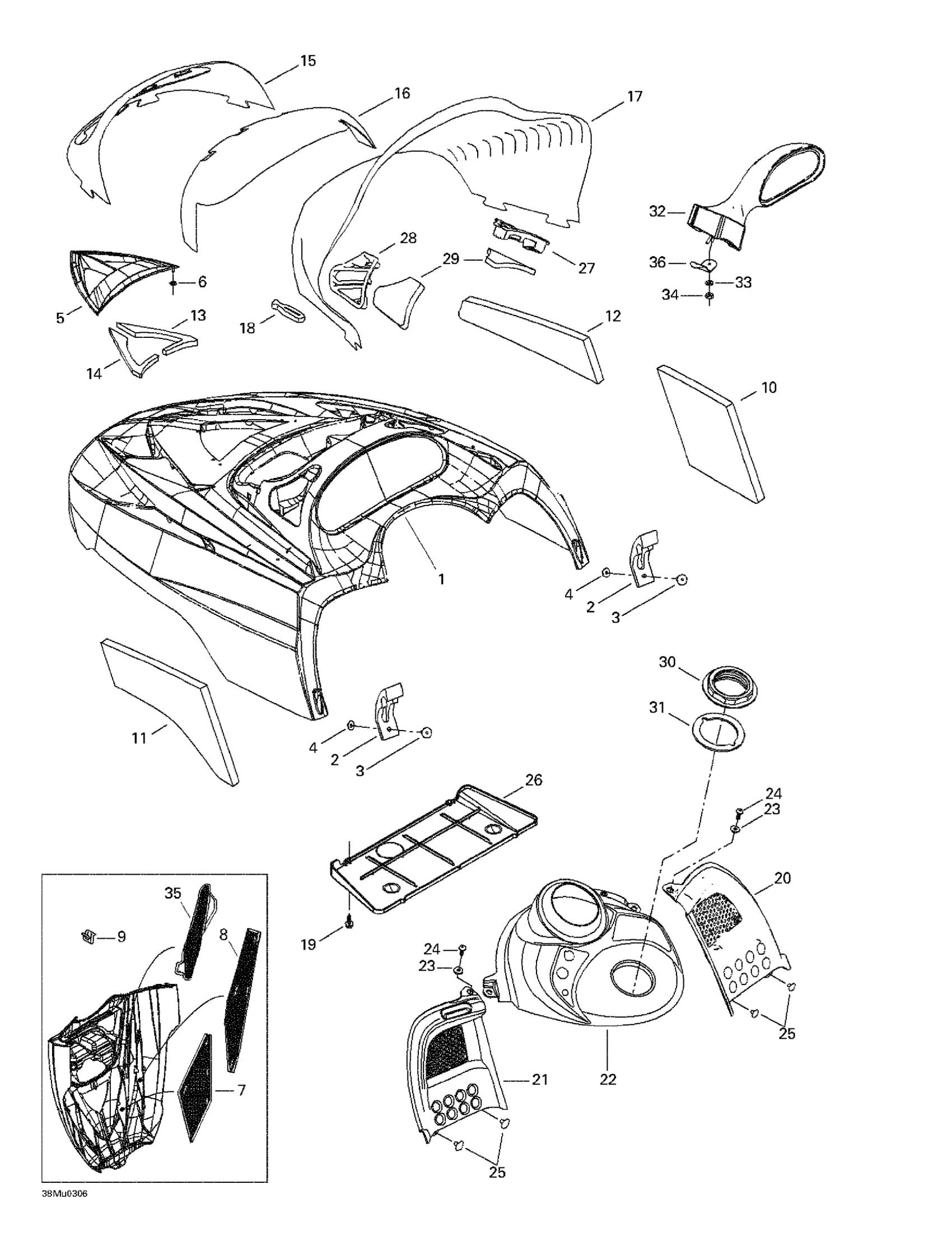

Ski-Doo Grand Touring V-1000, 2003 09- Cab, Console Diagram

#

Description
Price

1

Hood, Blue/Blue, B-234/B225

517302708

Unavailable

2

Hood Latch

570027100

$13.49

3

Pop Rivet 3/16”

293150108

$1.19

4

Washer

517124300

$0.19

5

Center Grille

517302744

Unavailable

6

Push Nut

250100034

$1.29

7

RH Intermediate Grille

517302994

Unavailable

LH Intermediate Grille

517302995

Unavailable

8

RH Side Grille

517302996

Unavailable

LH Side Grille

517302997

Unavailable

9

Edge Clip

517302785

$0.88

10

RH Side Foam

517302749

Unavailable

11

LH Side Foam

517302750

Unavailable

12

RH Rear Side Foam

517302941

Unavailable

13

RH CENTER FOAM - Call your local BRP dealership

517302942

Unavailable

14

LH Center Foam

517302943

Unavailable

15

Headlamp Moulding

517302835

Unavailable

16

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

17

HIGH WINDSHIELD - Call your local BRP dealership | SE & Sport

517302981

Unavailable

High Windshield | SE GT & Sport GT This part replaces 517302982.

517302560

$180.99

18

Windshield Latch

570023800

$4.49

19

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

20

RH Console

517302709

Unavailable

21

LH CONSOLE - Call your local BRP dealership

517302006

Unavailable

22

Center Console

517302953

Unavailable

23

Washer | DS 650 X

391301600

$0.48

24

Forming Screw M5 x 16

250000676

$1.01

25

Pop Rivet 3/16"

293150103

$0.55

26

Air Intake Plate

517302628

Unavailable

27

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

Unavailable

28

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

Unavailable

29

Air Intake Foam

517302151

Unavailable

30

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

31

Gasket

293250029

$14.82

32

RH MIRROR - Call your local BRP dealership

517302764

Unavailable

LH Mirror

517302766

Unavailable

33

Washer

517124300

$0.19

34

Elastic Stop Nut M4

232541414

$0.58

35

RH Side Grille

517302998

Unavailable

36

Holder Plate

517303057

Unavailable
