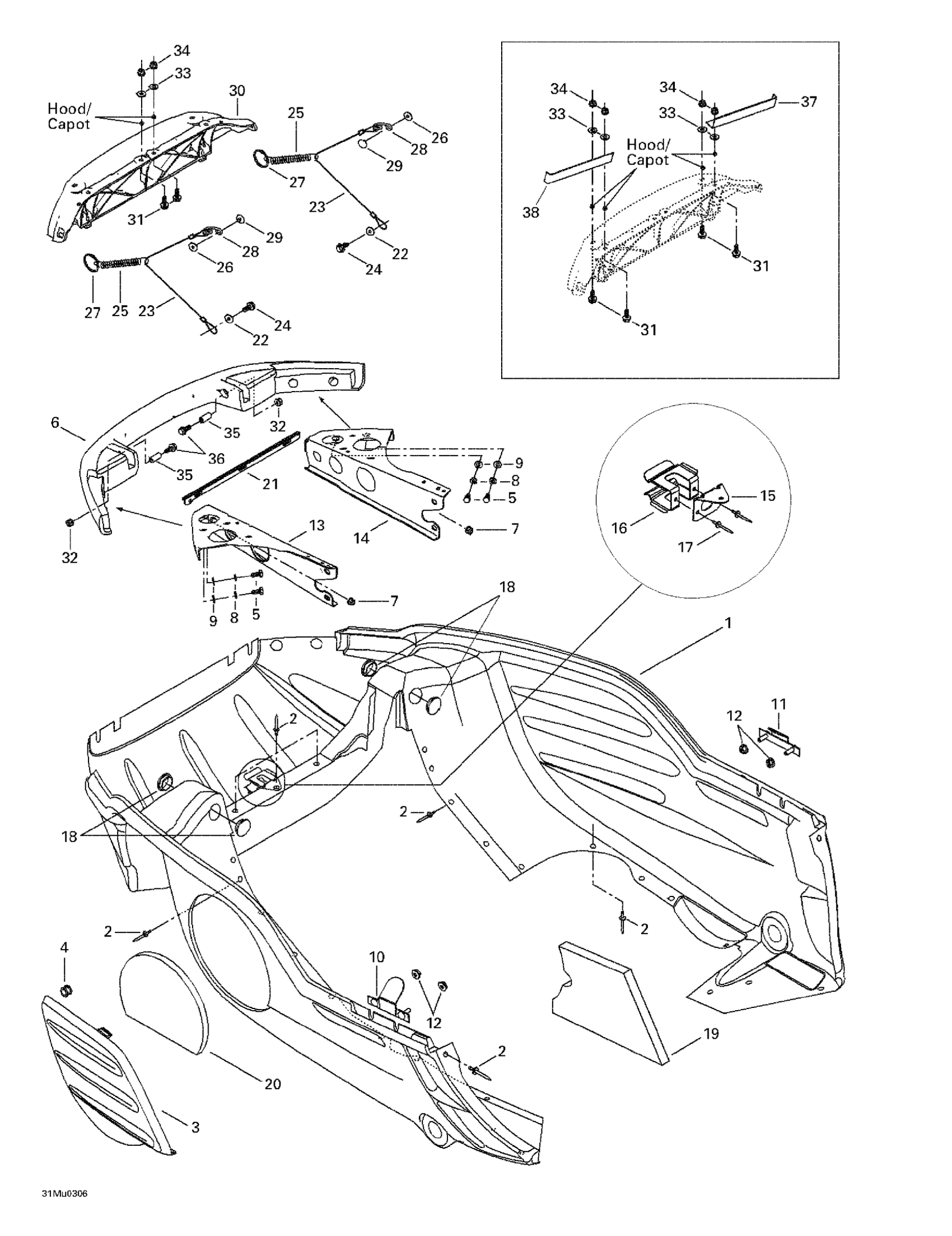

Ski-Doo Grand Touring V-1000, 2003 Bottom Pan Diagram

#

Description
Price

1

Labrador Blue, Bottom Pan

502006635

Unavailable

2

Pop Rivet 3/16”

293150108

$1.19

3

Labrador Blue, Bottom Pan Door

502006641

Unavailable

4

Grommet

414036300

$2.79

5

Hex. Screw M6 X 14

207161444

$0.58

6

Labrador Blue, Bumper

502006642

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Lock Washer M6, Black

234161471

$0.53

9

Flat Washer

224061121

$0.53

10

LH Bracket

502006645

Unavailable

11

RH Bracket

502006685

Unavailable

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

LH SUPPORT - Call your local BRP dealership

502006597

Unavailable

14

RH Support

502006602

Unavailable

15

Belt Support

502006599

Unavailable

16

Bracket

517281905

$18.49

17

Pop Rivet 3/16"

390402400

$0.35

18

Black, Nylon Cap

414916600

$4.69

19

Bottom Foam

502006558

Unavailable

20

Bottom Pan Door Foam

502006559

Unavailable

21

Bottom Pan Reinforcement

502006647

Unavailable

22

Washer | DS 650 X

391301600

$0.48

23

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Spring

415043300

Unavailable

26

Washer

517124300

$0.19

27

RING - Call your local BRP dealership

415058300

Unavailable

28

Bracket

517262800

Unavailable

29

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

30

Hinge

517302631

$48.99

31

Hex. Flange Screw M6 X 20

207662084

$1.69

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Flat Washer

224061201

$1.37

34

Elastic Stop Nut M6

232561414

$0.55

35

BUSHING - Call your local BRP dealership

517302179

Unavailable

36

Hex. Flange Screw M6 X 35

207663544

$0.90

37

RH Corner Support

517302949

Unavailable

38

LH Corner Support

517302950

Unavailable
