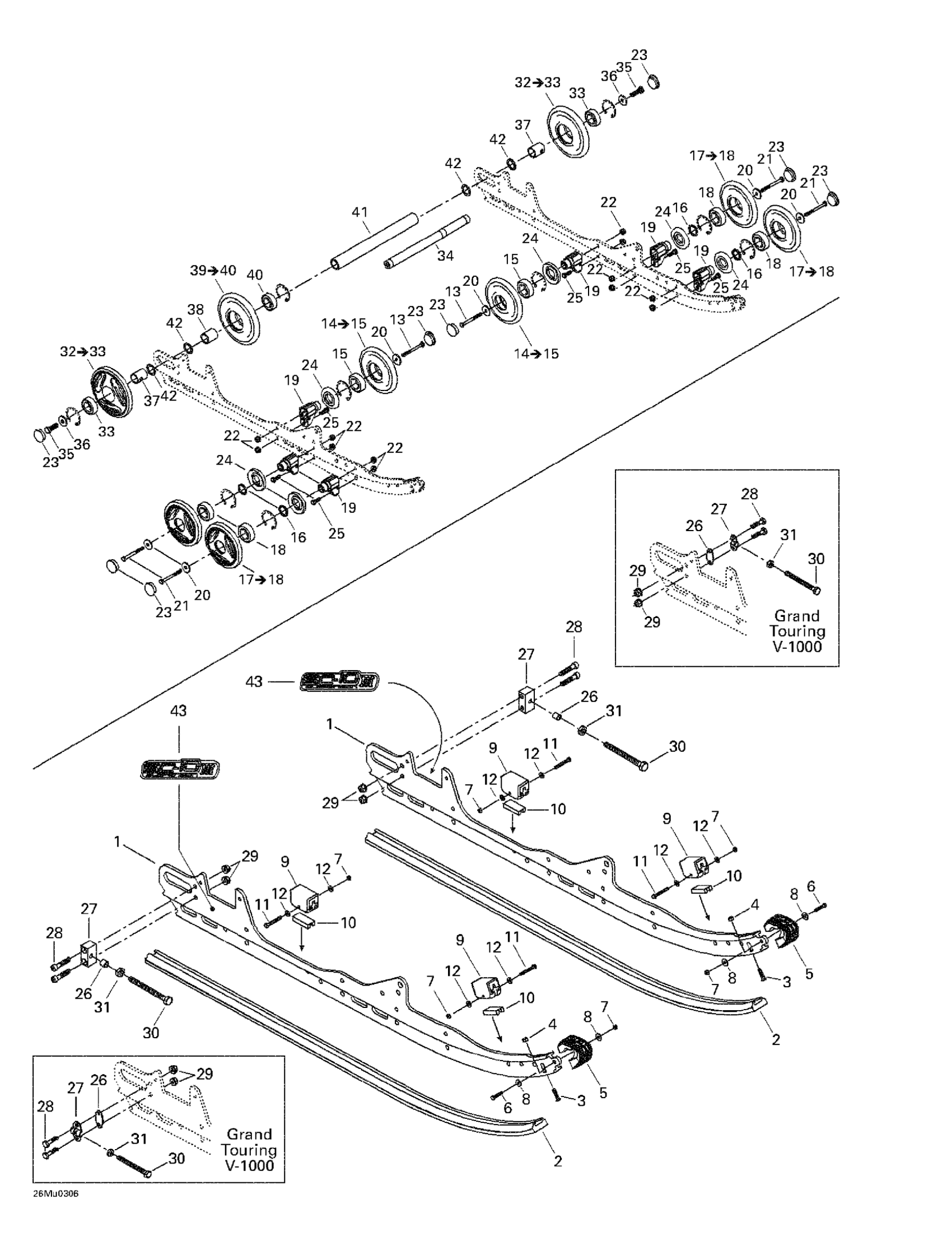

Ski-Doo Grand Touring V-1000, 2003 08- Rear Suspension Diagram

#

Description
Price

1

Runner | Legend SE 800 SDI.

503190222

Unavailable

Runner | Sport

503190253

Unavailable

2

SLIDE_SUSPENSION - Call your local BRP dealership

503190227

Unavailable

RUNNER SHOE - Call your local BRP dealership

503190257

Unavailable

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.87

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

570063000

Unavailable

10

Reinforcement Stopper

572084800

$12.99

11

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

12

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

13

Hex. Screw M8 X 80

207088044

$1.68

14

Wheel 135

503191029

$33.99

Wheel 139 mm Ass'y

503190798

$33.99

15

Ball Bearing

293350115

$12.11

16

WASHER - Call your local BRP dealership

503173700

Unavailable

17

Wheel 135 | Includes 18 to 19

503190797

$33.99

Wheel 139 Ass’Y, Full Moon | Includes items 18 to 19

503190211

Unavailable

18

Ball Bearing

293350115

$12.11

19

SUPPORT - Call your local BRP dealership

503190389

Unavailable

20

Washer

503183100

$3.17

21

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Wheel Cap

570063600

$3.49

24

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

25

Hex. Screw M8 X 25

207182544

$0.90

26

TENSIONER SPACER - Call your local BRP dealership

503168500

Unavailable

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

27

Tensioner

503189211

Unavailable

Tensioner

503155300

Unavailable

28

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

Hex. Screw M6 X 30

207063044

$1.26

29

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

31

Hex. Nut M10 X 1.5

232006414

$1.37

Elastic Locking Nut M10 X 1.5

233601416

$1.69

32

Wheel 180 Ass’Y, Full Moon | Includes items 33 to 34

503190254

Unavailable

33

Ball Bearing

293350115

$12.11

34

Rear Axle

503167900

$139.99

35

Hex. Screw With Nylon

250000019

$1.69

36

Washer

503183300

$5.82

37

Outer Spacer

503189809

$18.89

38

Inner Spacer

503182900

$12.58

39

Wheel 180

503190799

$51.99

40

Ball Bearing

293350115

$12.11

41

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

42

Washer

503180400

$3.49

43

Suspension Decal

516001248

Unavailable
