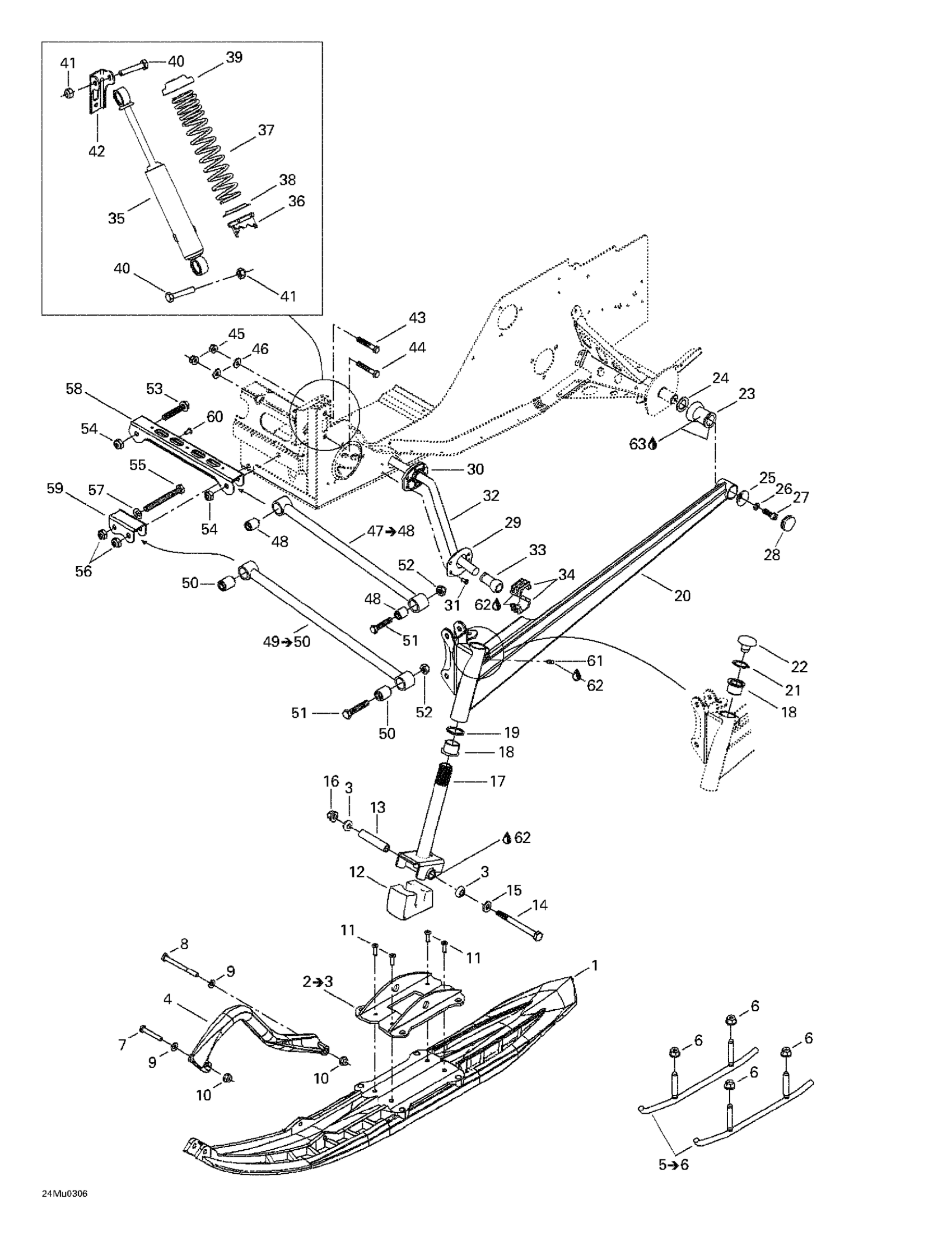

Ski-Doo Grand Touring V-1000, 2003 07- Front Suspension And Ski Diagram

#

Description
Price

1

Labrador Blue, Precision Ski | GSX Ltd (Silver/Blue)

505071031

Unavailable

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Labrador Blue, Ski Handle Kit

860507600

Unavailable

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

$92.99

6

Hex. Flange Elastic Nut M10

233201414

$1.58

7

Hex. Screw M8 X 50

207085044

$1.48

8

Hex. Screw M8 X 90

207089044

$3.48

9

Flat Washer 8 mm

234081410

$0.83

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

13

Spacer

506133300

$23.99

14

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

15

Washer

732900049

$0.58

16

Flange Nut M10

732610084

$6.79

17

Ski Leg

506151234

Unavailable

18

Cushion

505070003

$9.23

19

WASHER - Call your local BRP dealership

505070004

Unavailable

20

RH ARM - Call your local BRP dealership

505070645

Unavailable

20

LH ARM - Call your local BRP dealership

505070646

Unavailable

21

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

22

Cap

572091300

$12.99

23

DAMPER - Call your local BRP dealership

570062200

Unavailable

24

WASHER - Call your local BRP dealership

503146700

Unavailable

25

Cup | Package Hunter

705007171

$7.89

26

Lock Washer 8 mm

234181401

$0.92

27

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

28

CAP - Call your local BRP dealership

572045900

Unavailable

29

Plate

505070542

Unavailable

30

BUSHING - Call your local BRP dealership

505070139

Unavailable

31

Pop Rivet 3/16”

390407200

$0.70

32

Stabilisator

505071208

Unavailable

33

BALL JOINT - Call your local BRP dealership

505070819

Unavailable

34

SLIDING BLOCK - Call your local BRP dealership

505070817

Unavailable

35

FRONT SHOCK - Call your local BRP dealership | Canada / United States

505070994

Unavailable

36

Adjustment Cam

505073625

$12.99

37

Spring

505071129

Unavailable

38

Spring Guide

503187500

$10.49

39

Spring Stopper

706200881

$12.99

40

Hex. Screw M10 X 55

207005544

$2.22

41

Elastic Locking Nut M10 X 1.5

233601416

$1.69

42

RH SHOCK BRACKET - Call your local BRP dealership

518317518

Unavailable

42

LH Shock Bracket

518317519

Unavailable

43

Hex. Screw M8 X 50

207085044

$1.48

44

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

Unavailable

45

Hex. Flange Elastic Nut M8

233281414

$1.47

46

Washer

506151245

$0.93

47

Upper Arm Ass’Y | Includes 47 to 48

505071210

Unavailable

48

Bushing

505070025

Unavailable

49

Lower Arm Ass’Y | Includes 49 to 50

505071211

Unavailable

50

Bushing

505070025

Unavailable

51

Hex. Screw M10 X 55

207005544

$2.22

52

Elastic Locking Nut M10 X 1.5

233601416

$1.69

53

Hex. Flange Screw M10 X 55

207605544

$3.38

54

Elastic Locking Nut M10 X 1.5

233601416

$1.69

55

Hex. Screw M10 X 95

207009544

Unavailable

56

Elastic Locking Nut M10 X 1.5

233601416

$1.69

57

Flat Washer 10 mm

234001410

$1.26

58

Upper Arm Bracket

505070010

Unavailable

59

Lower Arm Bracket

505070011

Unavailable

60

Pop Rivet 3/16"

390402200

$0.35

61

Grease Fitting

408200700

$3.49

62

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

63

Grease, Super Lube

293550030

$28.99
