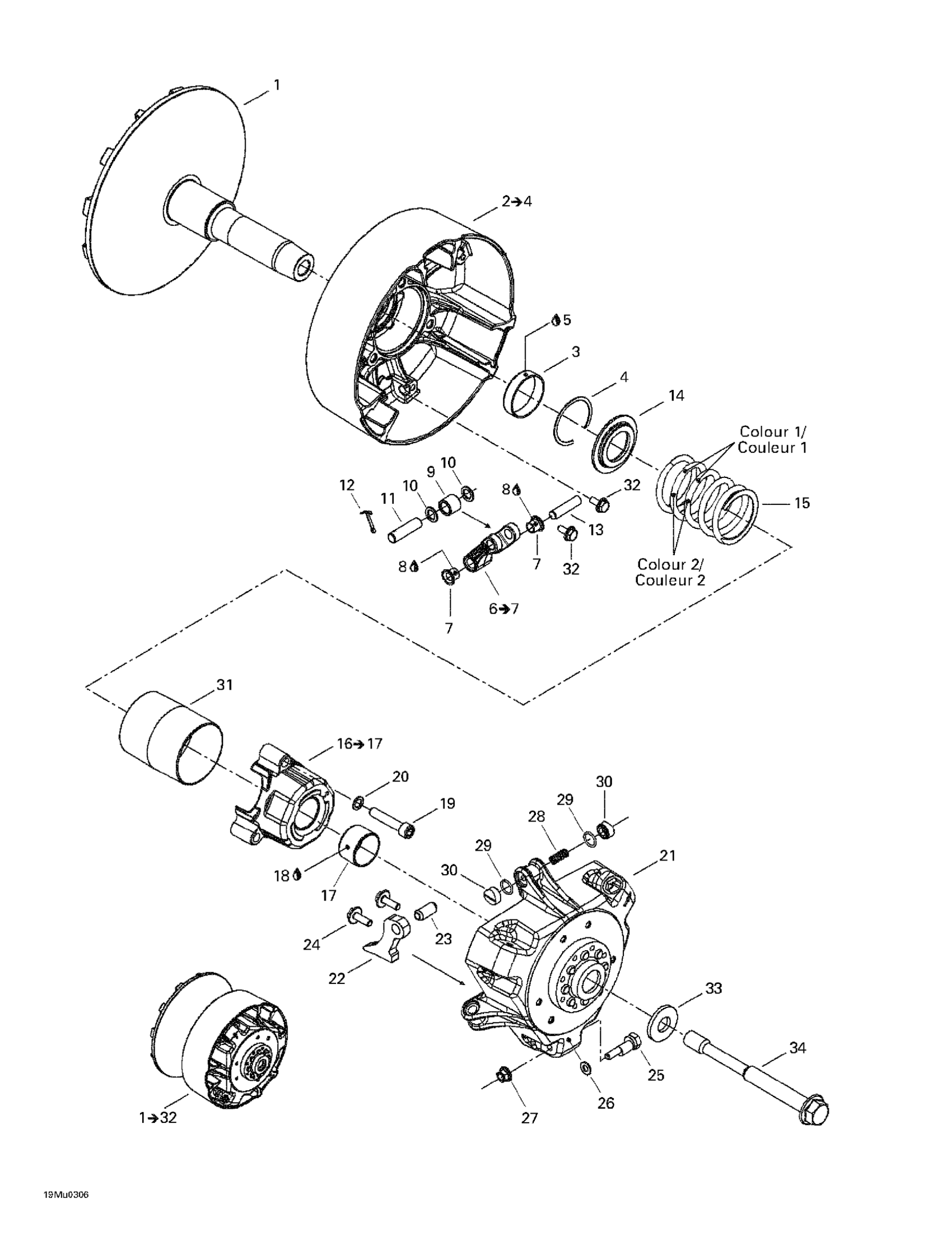

Ski-Doo Grand Touring V-1000, 2003 05- Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass’Y | Includes 1 - 32.

417222592

Unavailable

1

Fixed Flange

417222593

Unavailable

2

SLINDING FLANGE ASSY - Call your local BRP dealership

417222629

Unavailable

3

Bushing

417222758

$22.49

4

Circlip

293370037

$3.19

5

Loctite 609, 10 ml

413703100

$26.99

6

Lever Ass’y | Includes 6 - 7.

417222626

Unavailable

7

Bushing

417004305

$11.52

8

Loctite, Black Max, 3 ml

413408300

$26.99

9

Roller

417222947

$21.99

10

Stopper Washer

417004302

$15.90

11

Pin

417222594

$14.99

12

Cotter Pin

250400060

$2.00

13

Lever Axle

417223164

$4.49

14

Spring Seat

417222312

$9.59

15

CLUTCH SPRING, RED/YELLOW - Call your local BRP dealership

414817500

Unavailable

16

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

17

Bushing

417009204

$17.49

18

Loctite 609, 10 ml

413703100

$26.99

19

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

20

Lock Washer 8 mm

250200009

$2.11

21

Governor Cup Assy

417222530

Unavailable

22

RAMPE 607 - Call your local BRP dealership

417222569

Unavailable

23

Spring Pin M10 X 22

250400050

$2.99

24

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

25

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

26

Washer

417005600

$4.09

27

Hex. Flange Nut M6

233061414

$1.68

28

Spring

417005700

$4.76

29

O-Ring

732401030

$0.98

30

Slider Shoe This part replaces 420460045.

417223021

$5.90

31

Guard

417009205

$21.99

32

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

33

Spring Washer 14 mm

250200006

$6.99

34

Bolt-Pulley Drive

417300180

Unavailable
