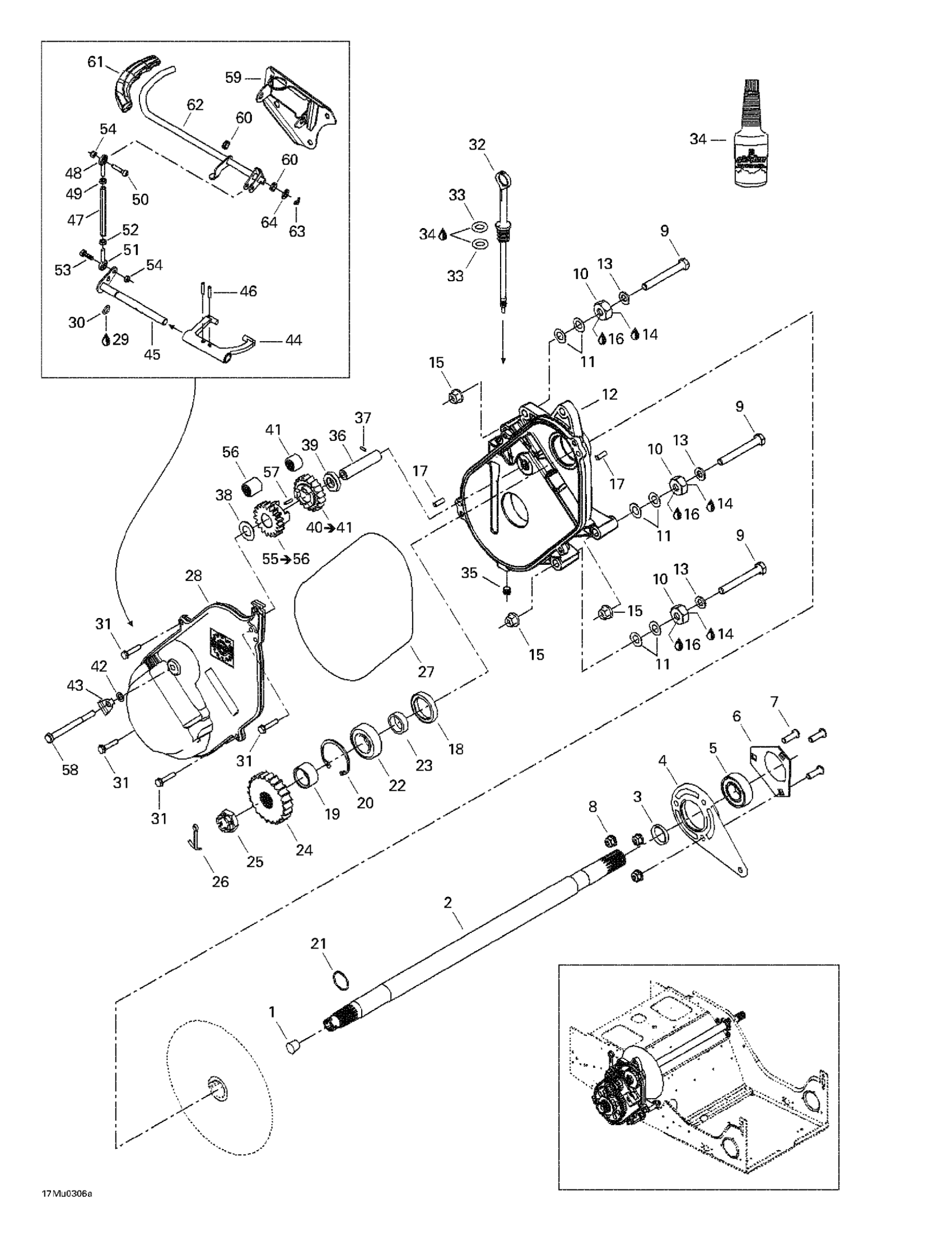

Ski-Doo Grand Touring V-1000, 2003 05- Chaincase And Countershaft Diagram

#

Description
Price

1

CORK - Call your local BRP dealership

414784800

Unavailable

2

COUNTER SHAFT - Call your local BRP dealership

501026300

Unavailable

3

Spacer

504149100

$12.99

4

Spacer (Casting)

080044200

$21.99

5

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

6

FLANGE - Call your local BRP dealership

501025000

Unavailable

7

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205482546

Unavailable

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

HEX. SCREW M10 X 80 - Call your local BRP dealership

207108044

Unavailable

10

Spacer

504083800

Unavailable

11

WASHER - Call your local BRP dealership

504073700

Unavailable

12

Chaincase

504152062

Unavailable

13

Washer

503183800

$3.28

14

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

15

Hex. Flange Elastic Nut M10

233201414

$1.58

16

Loctite 243, 10 ml

293800060

$21.49

17

CYLINDER PIN - Call your local BRP dealership | Package-2X4, 4X4

732620001

Unavailable

18

Oil Seal

293200158

$14.22

19

SPACER - Call your local BRP dealership

507031500

Unavailable

20

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

21

O-RING - Call your local BRP dealership

414876700

Unavailable

22

Ball Bearing

293350115

$12.11

23

SHIM - Call your local BRP dealership

504147200

Unavailable

24

Sprocket, 21 Teeth

504096200

$93.99

25

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

26

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

27

O-Ring

415046400

$24.99

28

COVER - Call your local BRP dealership

504151845

Unavailable

29

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

30

O-RING - Call your local BRP dealership

414773200

Unavailable

31

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

32

FILLER CAP ASSY - Call your local BRP dealership

504151750

Unavailable

33

O-RING - Call your local BRP dealership

414969400

Unavailable

34

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

35

Plug 1/8”-27

504151921

$4.19

36

Reverse Shaft

504083100

$46.99

37

Rolled Pin M3 X 10

250400010

$1.90

38

Spacer

504077300

$6.95

39

Ring

504078700

$20.99

40

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$109.99

41

NEEDLE BEARING - Call your local BRP dealership

414773100

Unavailable

42

Washer

504082900

$2.64

43

TAB LOCK - Call your local BRP dealership

504087700

Unavailable

44

Fork

504075800

Unavailable

45

Fork Axle

504151806

Unavailable

46

SPRING PIN - Call your local BRP dealership

414772500

Unavailable

47

TIE ROD - Call your local BRP dealership

504151814

Unavailable

48

RH BALL-JOINT - Call your local BRP dealership

414773400

Unavailable

49

Hex. Nut M6

232061414

$0.53

50

Socket Head Screw M6 X 25

205062560

$1.69

51

LH BALL-JOINT - Call your local BRP dealership

414773500

Unavailable

52

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

53

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

54

Elastic Stop Nut M6

232561414

$0.55

55

SPROCK ASS?Y, 19 TEETH - Call your local BRP dealership | Includes 76 to 77

581122200

Unavailable

56

NEEDLE BEARING - Call your local BRP dealership

414805000

Unavailable

57

Alignement Rod

570048600

$15.99

58

Hex. Screw M8 X 90

207089044

$3.48

59

SUPPORT, REVERSE - Call your local BRP dealership

504151823

Unavailable

60

BUSHING - Call your local BRP dealership

504151818

Unavailable

61

Grip

570064600

Unavailable

62

HANDLE - Call your local BRP dealership

504151810

Unavailable

63

COTTER PIN - Call your local BRP dealership

371800800

Unavailable

64

WASHER - Call your local BRP dealership

503189264

Unavailable
