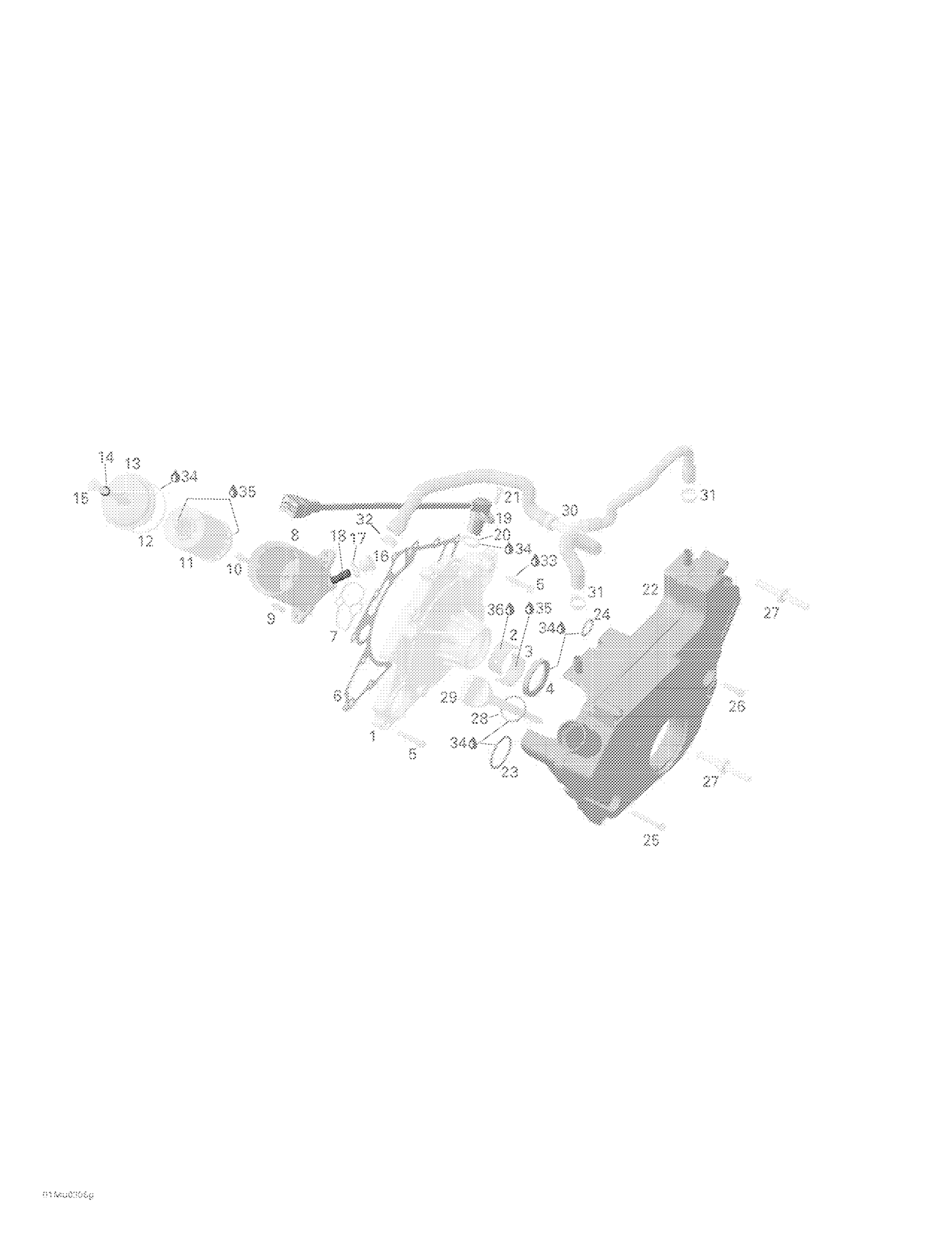

Ski-Doo Grand Touring V-1000, 2003 Clutch Cover And Oil Tank Diagram

#

Description
Price

1

Clutch Cover Ass’Y | Includes 1 to 3

420811671

Unavailable

2

HALF BUSHING - Call your local BRP dealership

420933540

Unavailable

3

PLAIN BEARING - Call your local BRP dealership

420933545

Unavailable

4

Oil Seal

420931150

Unavailable

5

Torx Flange Screw M6 X 35

420440274

$0.83

6

GASKET - Call your local BRP dealership

420950610

Unavailable

7

GASKET - Call your local BRP dealership

420950990

Unavailable

8

Oil Filter Housing Ass’Y

420811901

Unavailable

9

Torx Flange Screw M6 X 25

420440234

$3.00

10

Hex. Flange Screw M6 X 65

420440602

$5.22

11

Oil Filter

420956741

$11.14

12

O-Ring

420230923

$2.59

13

OIL FILTER COVER - Call your local BRP dealership

420610326

Unavailable

14

O-Ring

420950860

$3.20

15

Oil Filter Screw Kit

295501207

$32.47

16

Plug Screw M16 X 1.5

420240234

$13.58

17

O-Ring

420430622

$3.61

18

Stuffing Plug

420960470

Unavailable

19

Crank Position Trigger

420265920

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Torx Flange Screw M6 X 16

420440162

$3.11

22

Oil Tank Ass’Y

420956700

Unavailable

23

O-RING - Call your local BRP dealership

420631400

Unavailable

24

O-RING - Call your local BRP dealership

420631410

Unavailable

25

Torx Flange Screw M6 X 45

420440324

$0.81

26

Torx Flange Screw M6 X 25

420440234

$3.00

27

FIXATION BOLT - Call your local BRP dealership

420660860

Unavailable

28

O-ring

420430590

$6.26

29

OIL DIPSTICK - Call your local BRP dealership

420956890

Unavailable

30

Molded Hose Ass’y

420660720

Unavailable

31

Clamp

420853143

$8.34

32

Clamp

420853313

$8.34

33

Loctite 243, 10 ml

293800060

$20.77

34

Grease, Super Lube

293550030

$24.67

35

Synth Oil 4T 12x1

293600054

Unavailable

36

Petamo Grease, GHY133N, 400 g

420899271

$57.17
