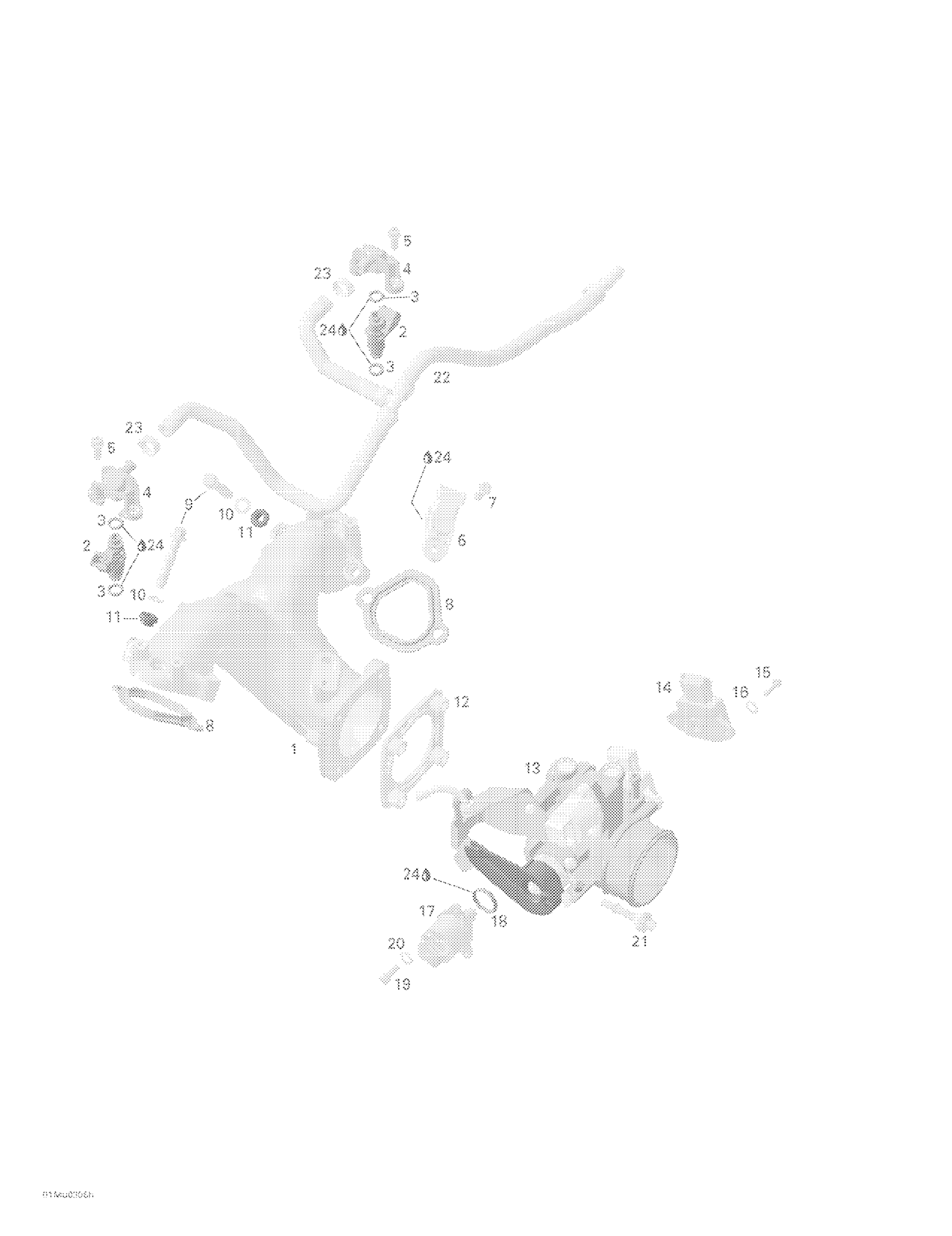

Ski-Doo Grand Touring V-1000, 2003 02- Air Inlet Manifold And Throttle Body Diagram

#

Description
Price

1

AIR INLET MANIFOLD - Call your local BRP dealership

420867940

Unavailable

2

Injection Valve

420874402

$185.49

3

O-Ring

420631220

$14.28

4

Fuel Rail

420874410

$19.99

5

Torx Flange Screw M6 X 16

420440162

$3.17

6

Pressure Sensor

270600040

$199.99

7

Torx Flange Screw M6 X 16

420440162

$3.17

8

Gasket

420950690

Unavailable

9

SCREW M8 X 45 - Call your local BRP dealership

420440472

Unavailable

10

WASHER - Call your local BRP dealership

420944038

Unavailable

11

RUBBER SLEEVE - Call your local BRP dealership

420660190

Unavailable

12

Rubber Gasket

420950792

$11.60

13

Throttle Body Socket Ass’Y | Includes 13 - 20.

420888900

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Idle Air Control Valve

420665941

$179.99

18

O-Ring

420631780

$4.44

19

Binding Head Screw M5 X 16

420440911

$14.28

20

Snap Ring

420845710

$4.12

21

Hex Screw M6 X 30

420440568

$8.58

22

Fuel Hose

420874560

Unavailable

23

Clamp

420851458

$7.41

24

Grease, Super Lube

293550030

$28.99
